Wiring the Imagination Dollhouse - slideshow 1

This slideshow augments but does not replace
the house assembly instructions

DHTMLGoodies.com

Wiring the Imagination Dollhouse - slideshow 1 WiringAssets/000_lg.jpg

DHTMLGoodies.com

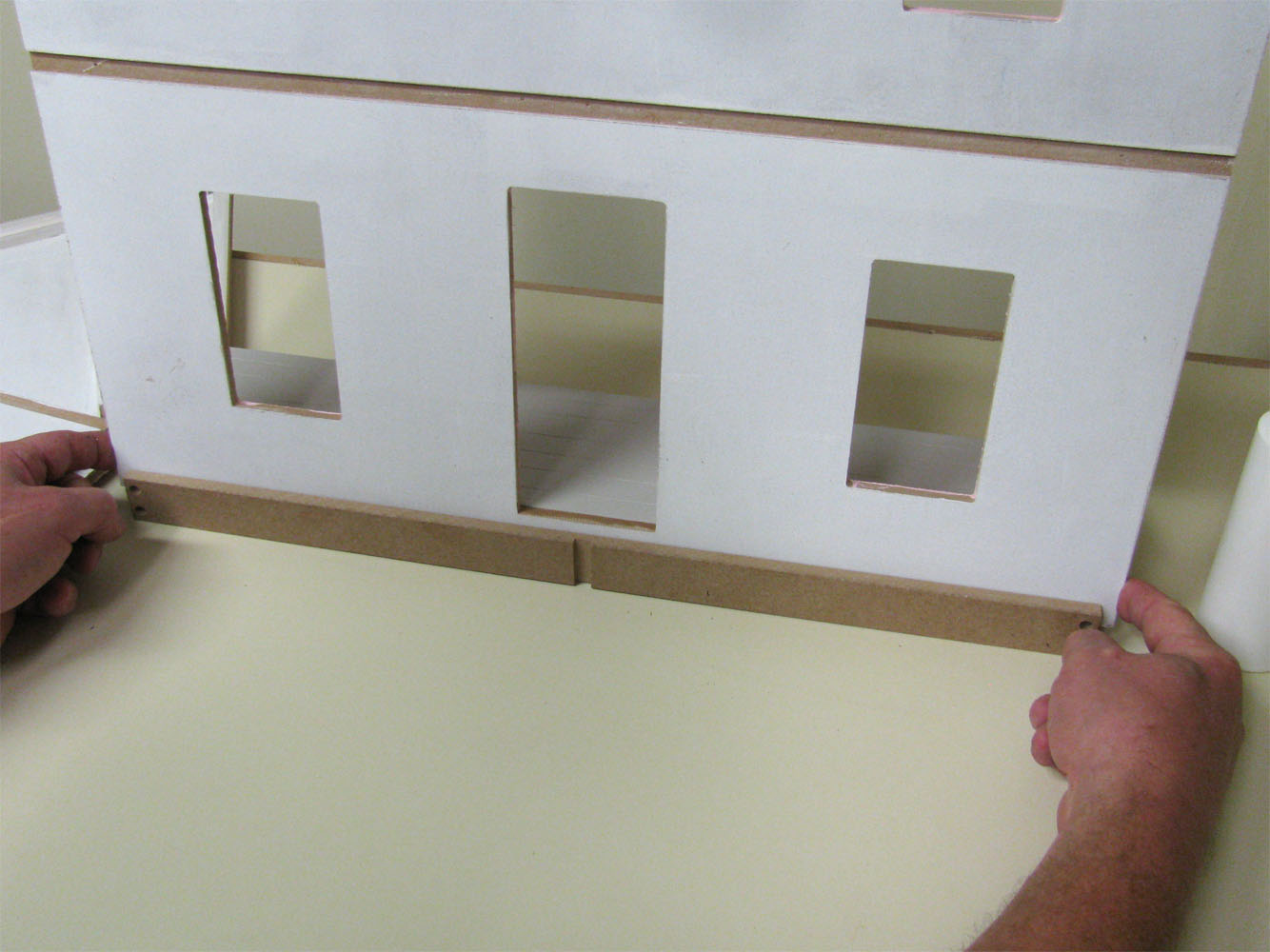

Glue the Front into the Porch Base groove WiringAssets/001_lg.jpg

DHTMLGoodies.com

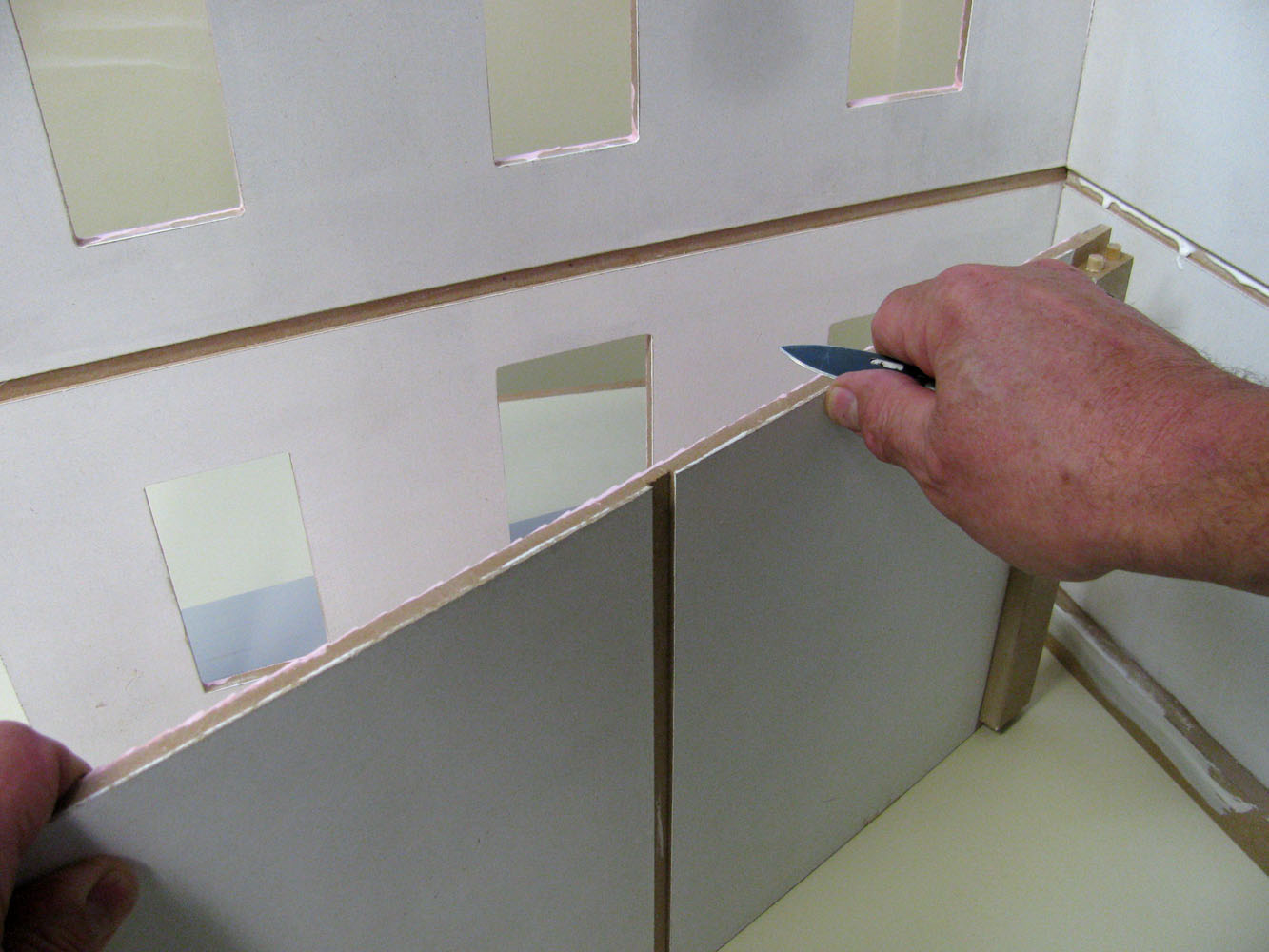

Clean drips from the edges and grooves WiringAssets/002_lg.jpg

DHTMLGoodies.com

spread glue in the grooves WiringAssets/003_lg.jpg

DHTMLGoodies.com

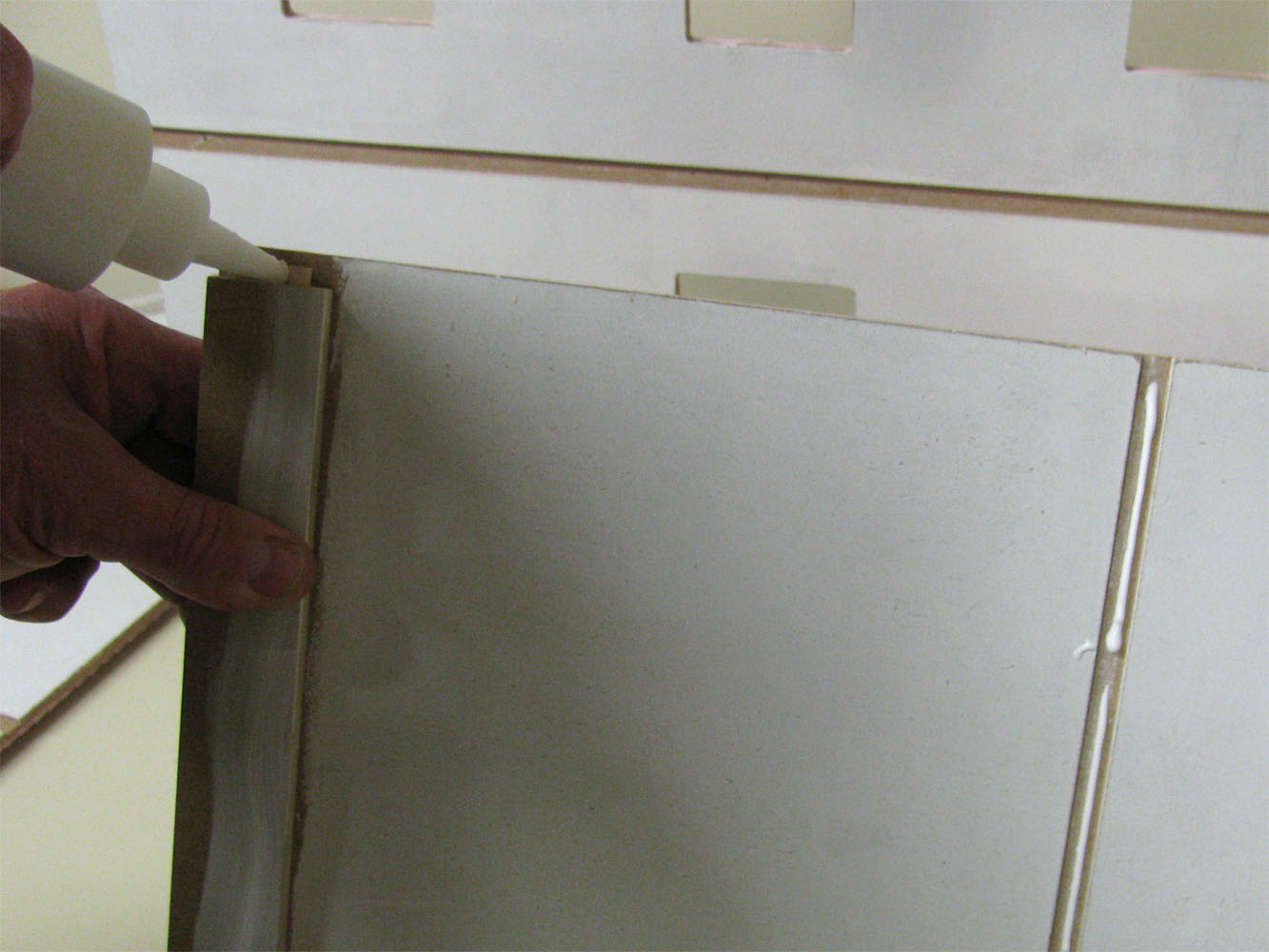

spread glue on the dowels WiringAssets/004_lg.jpg

DHTMLGoodies.com

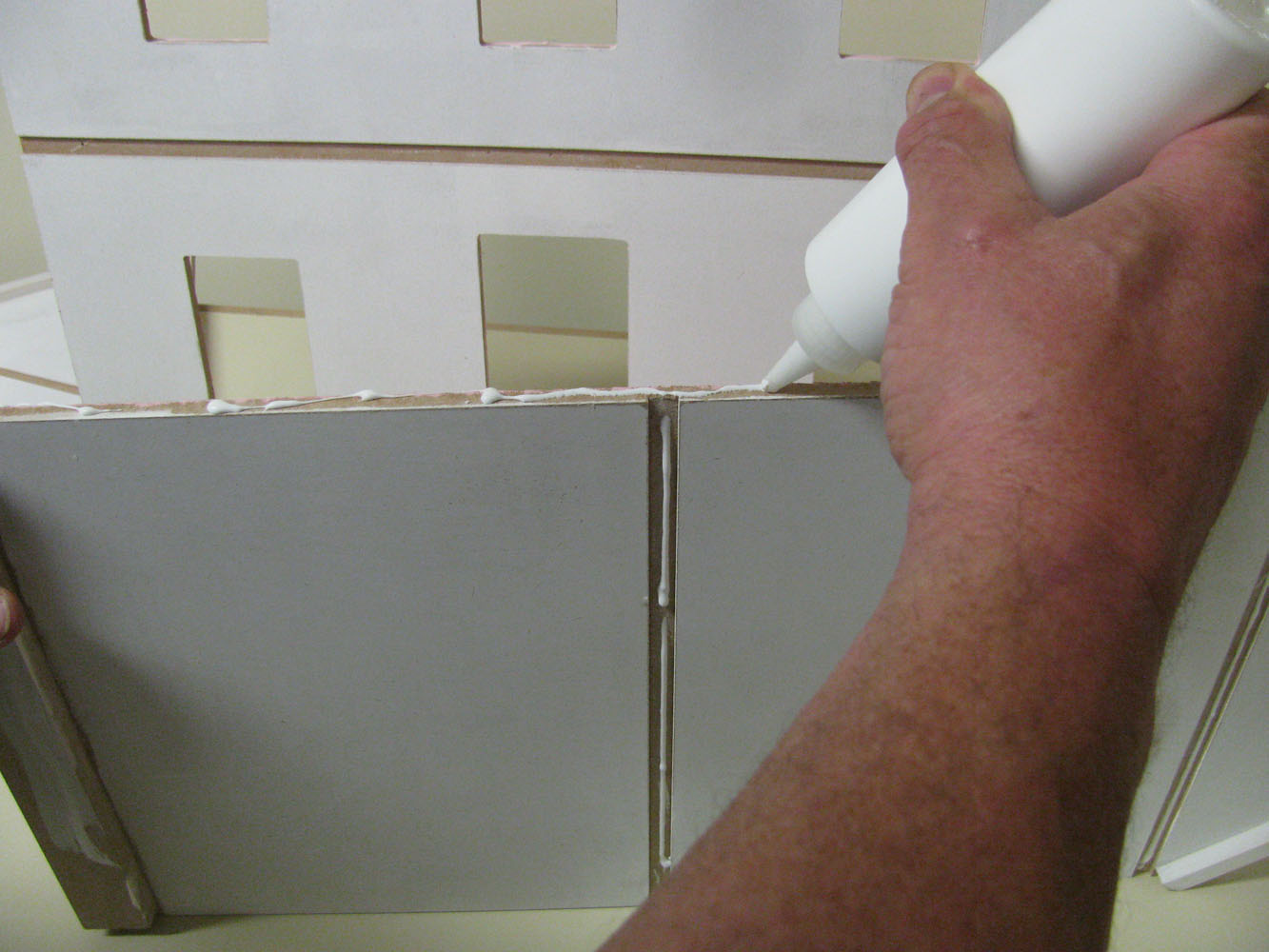

spread glue on the edges WiringAssets/005_lg.jpg

DHTMLGoodies.com

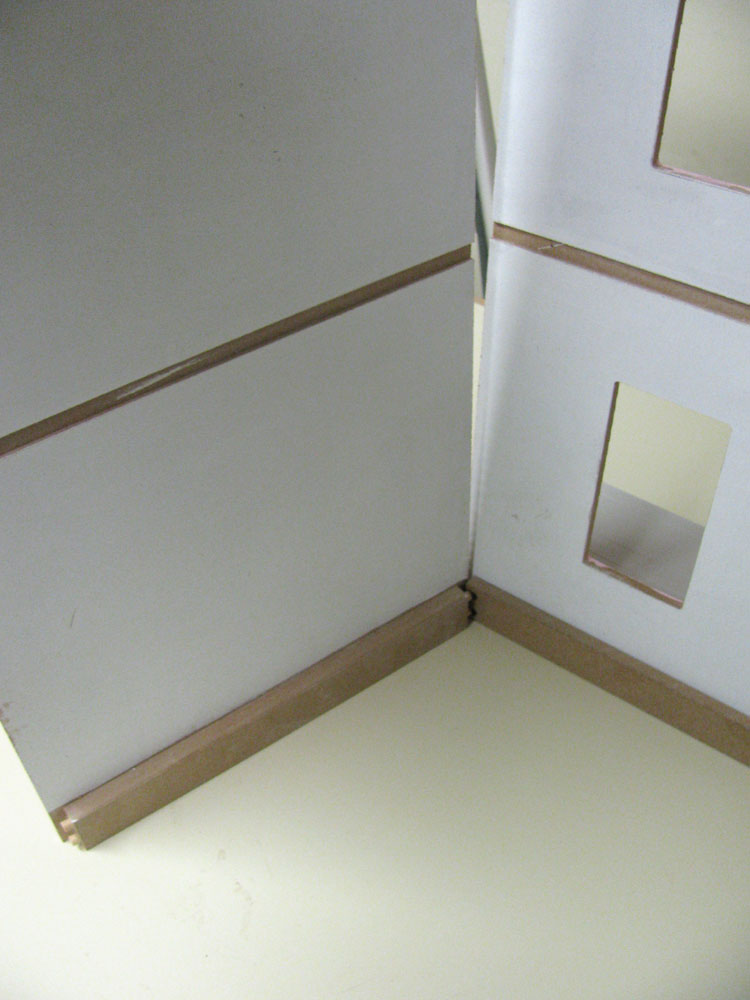

Join the Sides, Porch Base, and Front WiringAssets/006_lg.jpg

DHTMLGoodies.com

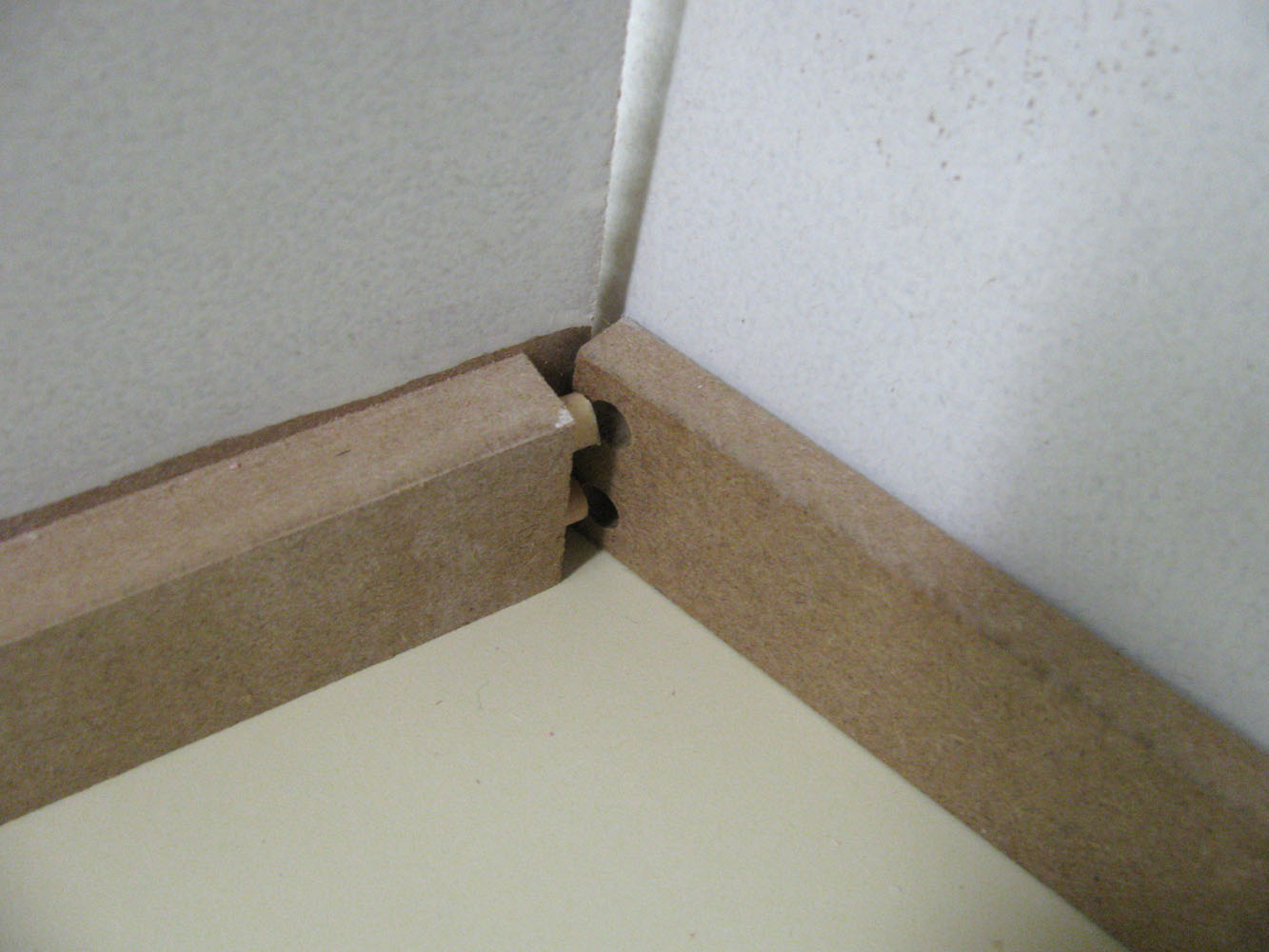

The dowels fit into the holes WiringAssets/007_lg.jpg

DHTMLGoodies.com

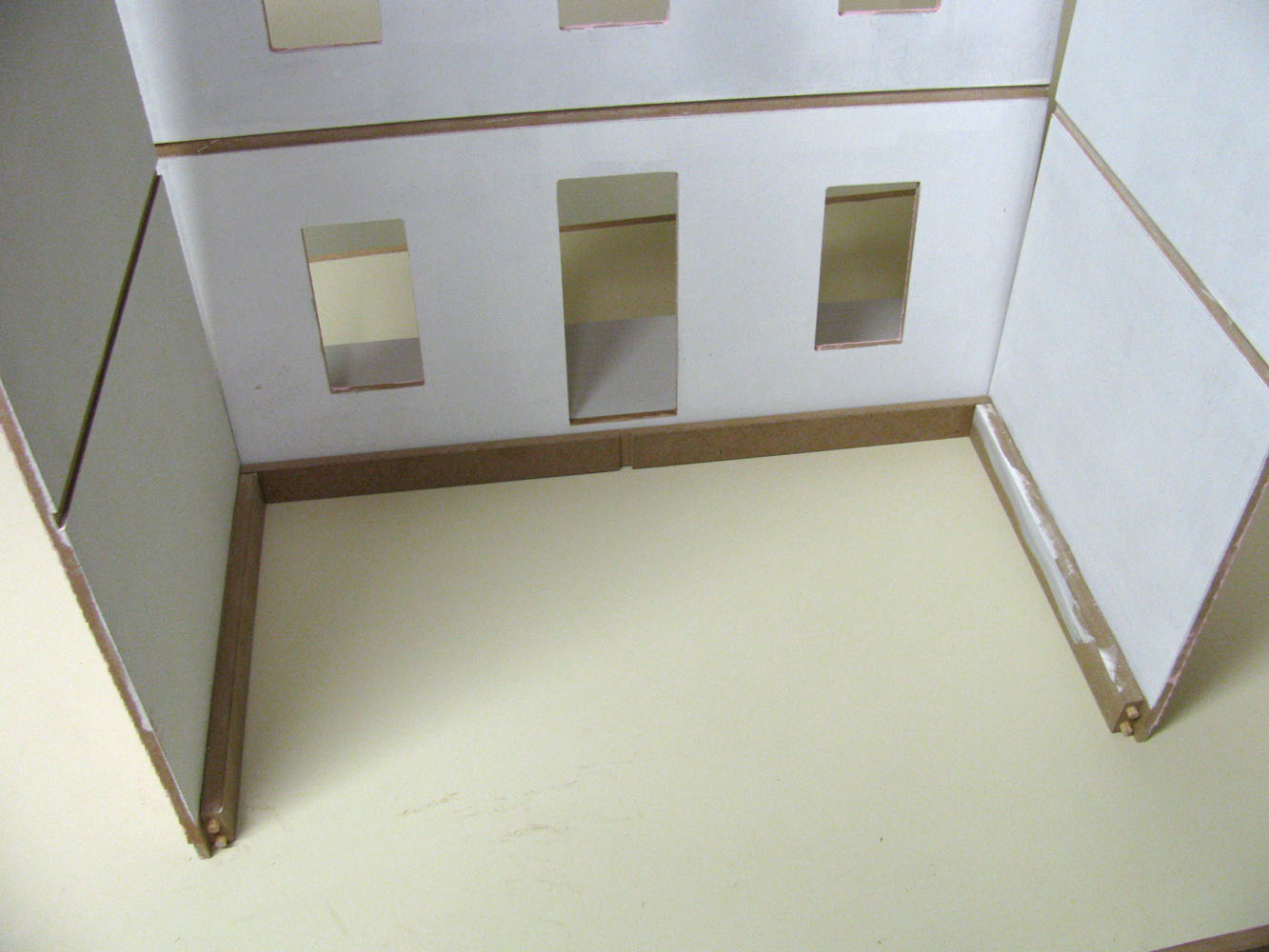

Attach both Sides WiringAssets/008_lg.jpg

DHTMLGoodies.com

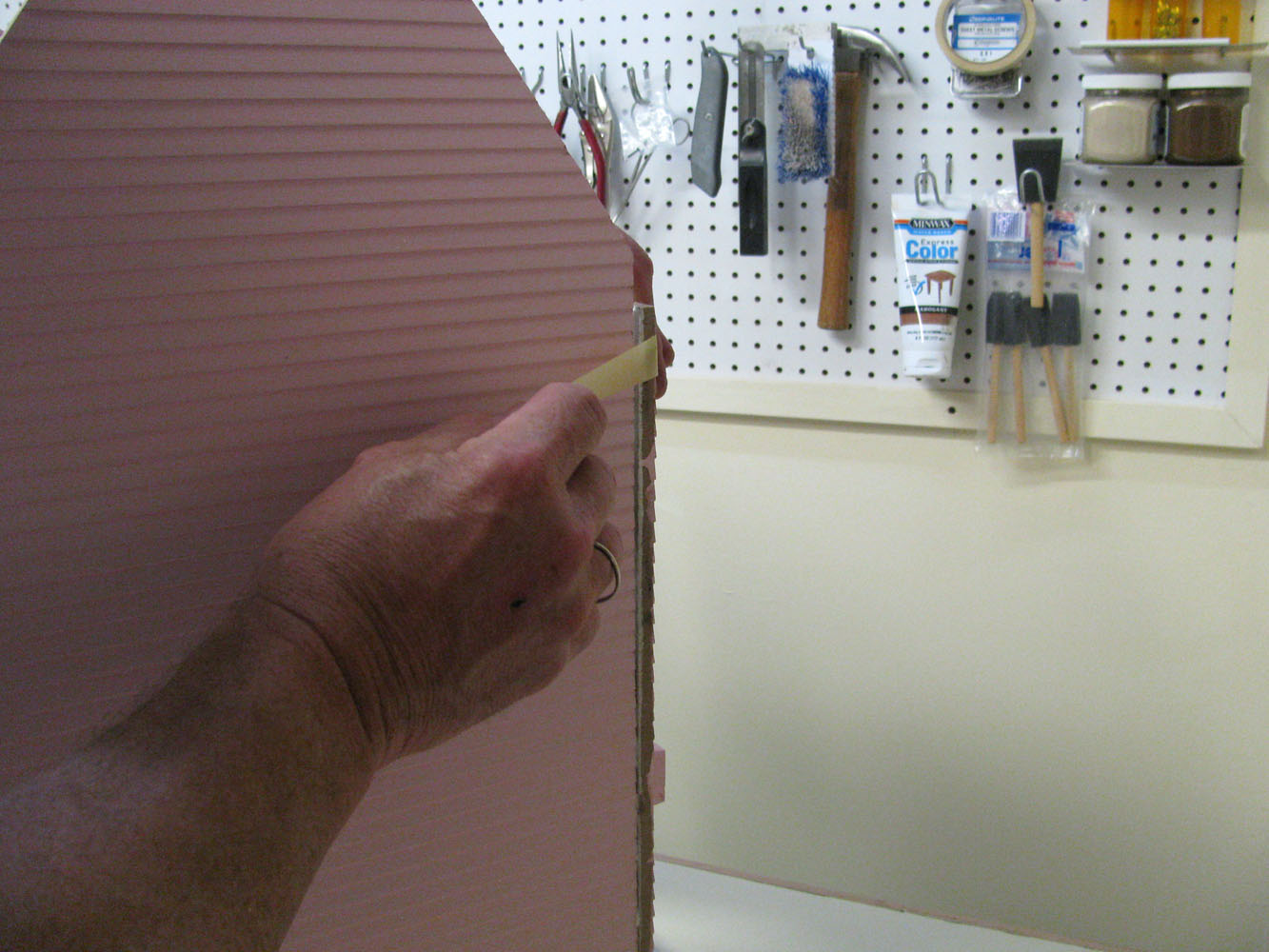

Tape together the Front and Sides WiringAssets/009_lg.jpg

DHTMLGoodies.com

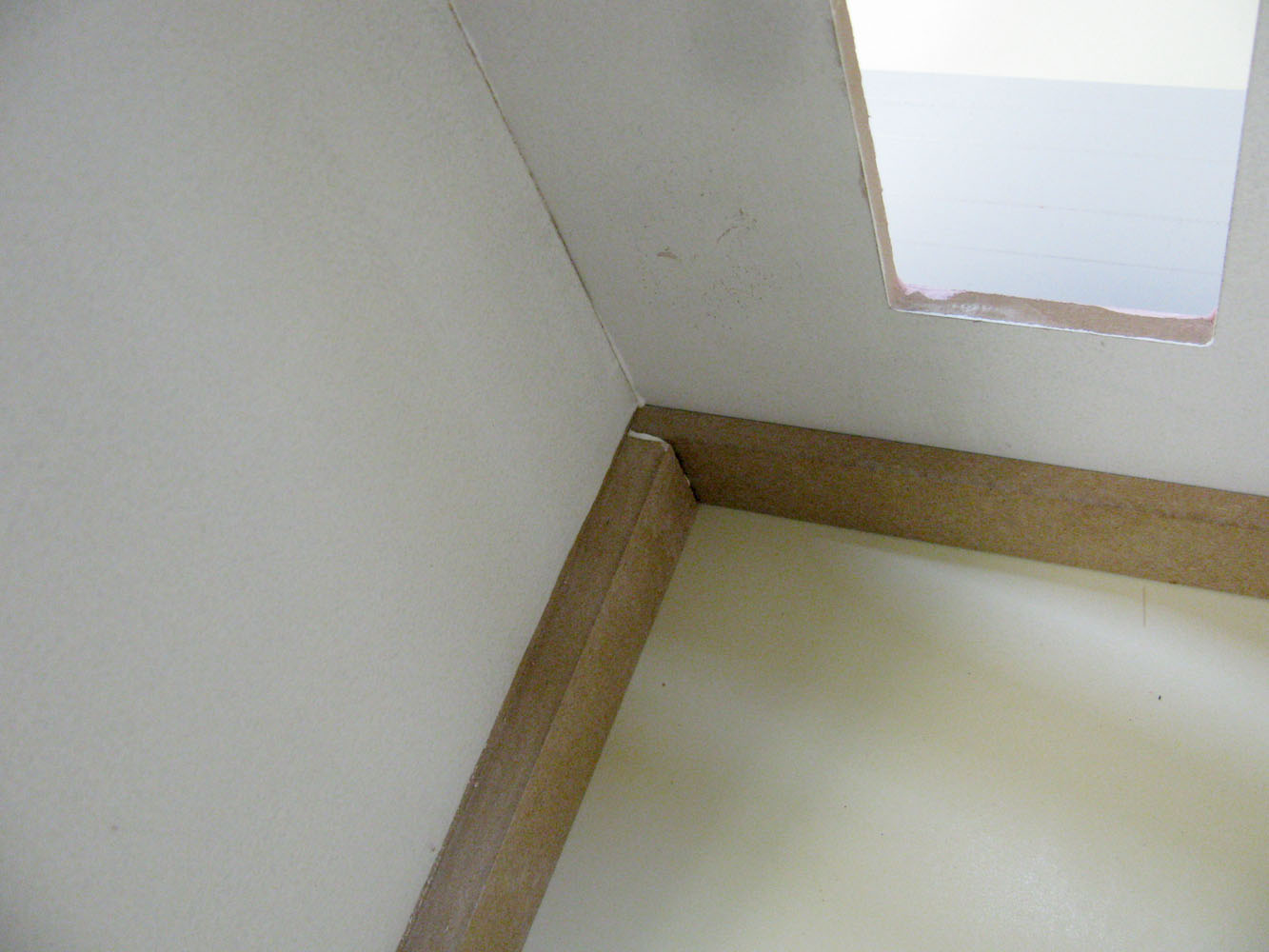

WiringAssets/010_lg.jpg

DHTMLGoodies.com

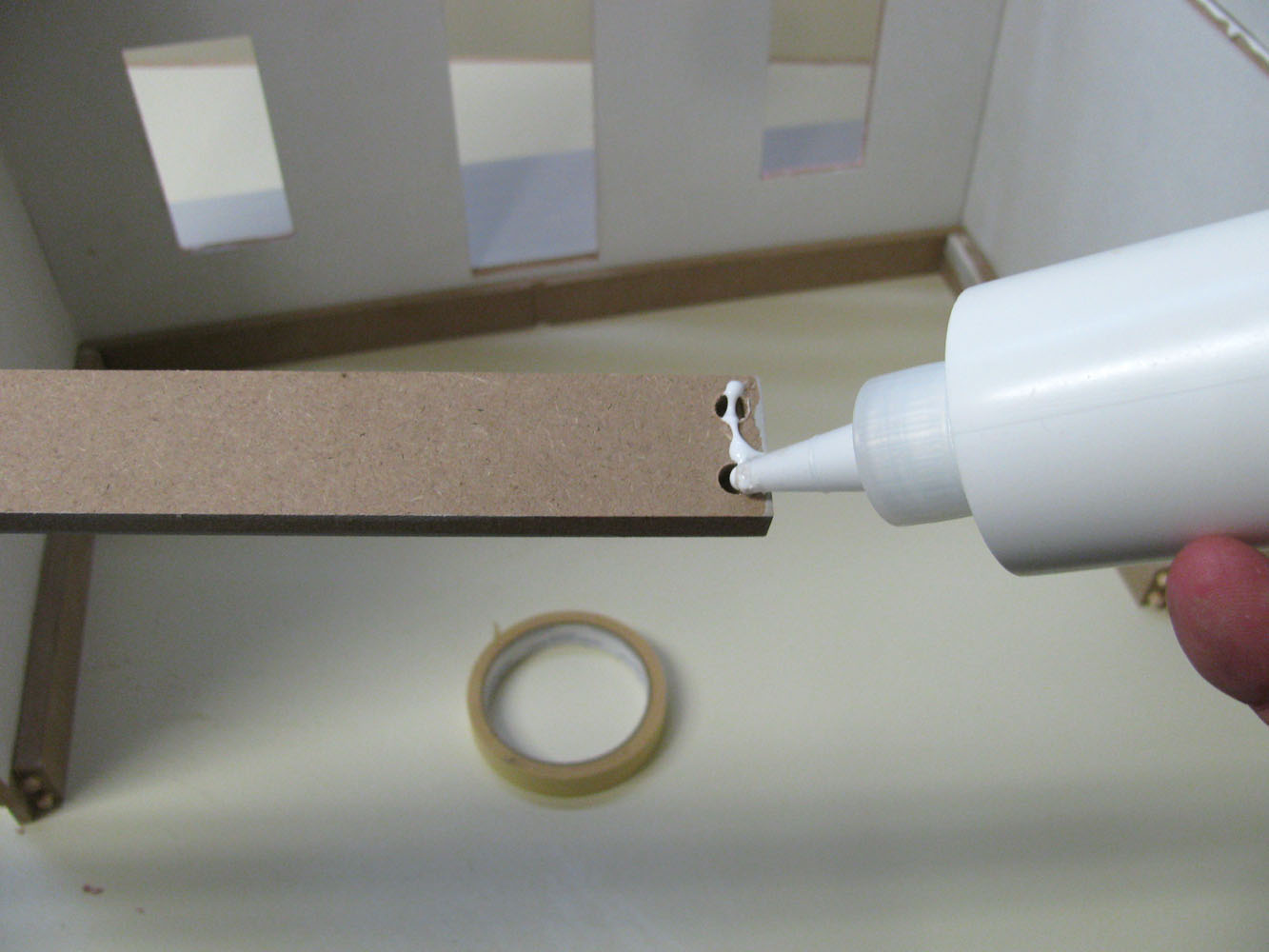

Glue on the Back Foundation WiringAssets/011_lg.jpg

DHTMLGoodies.com

WiringAssets/012_lg.jpg

DHTMLGoodies.com

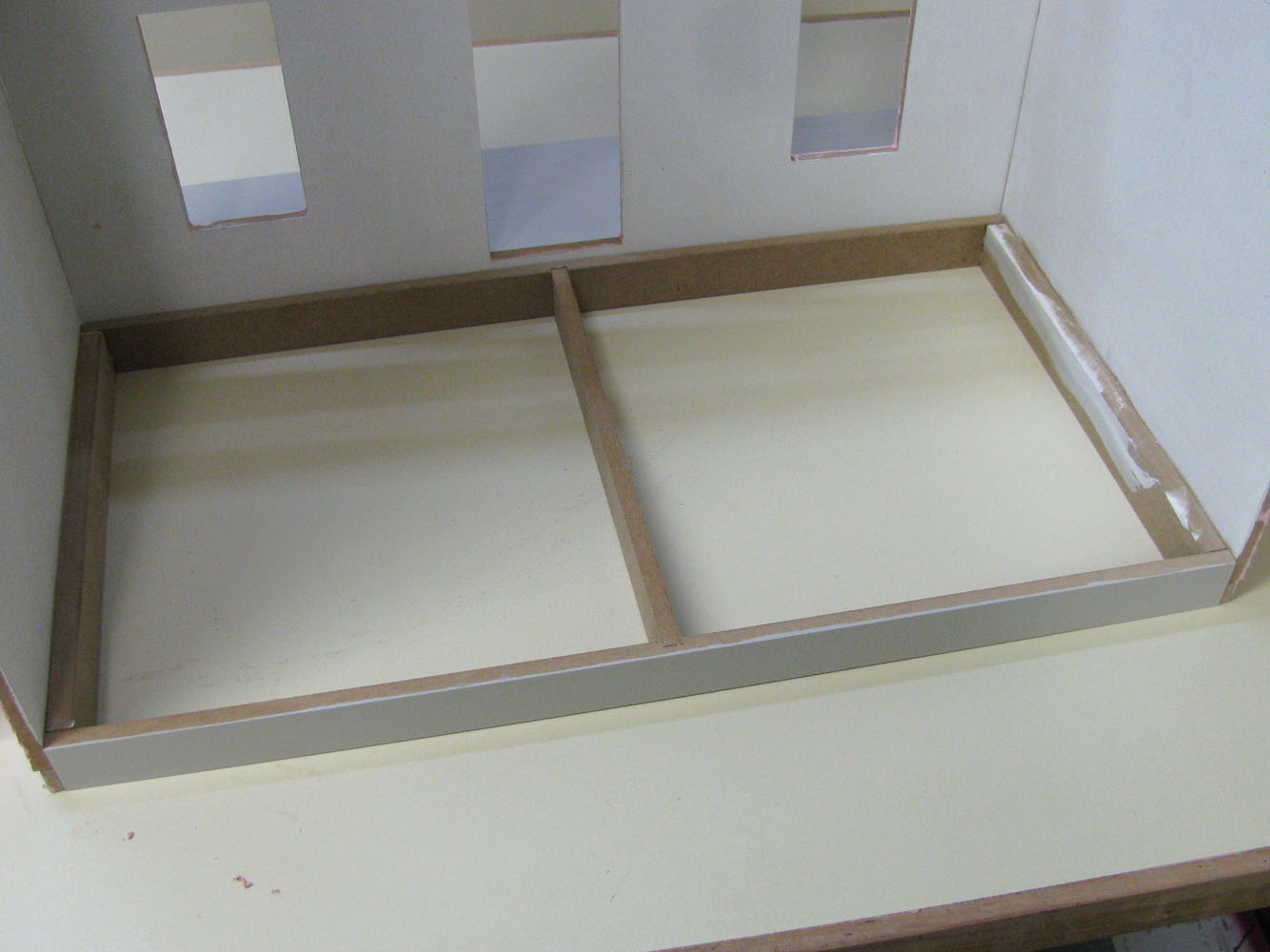

Glue in the Middle Foundation WiringAssets/013_lg.jpg

DHTMLGoodies.com

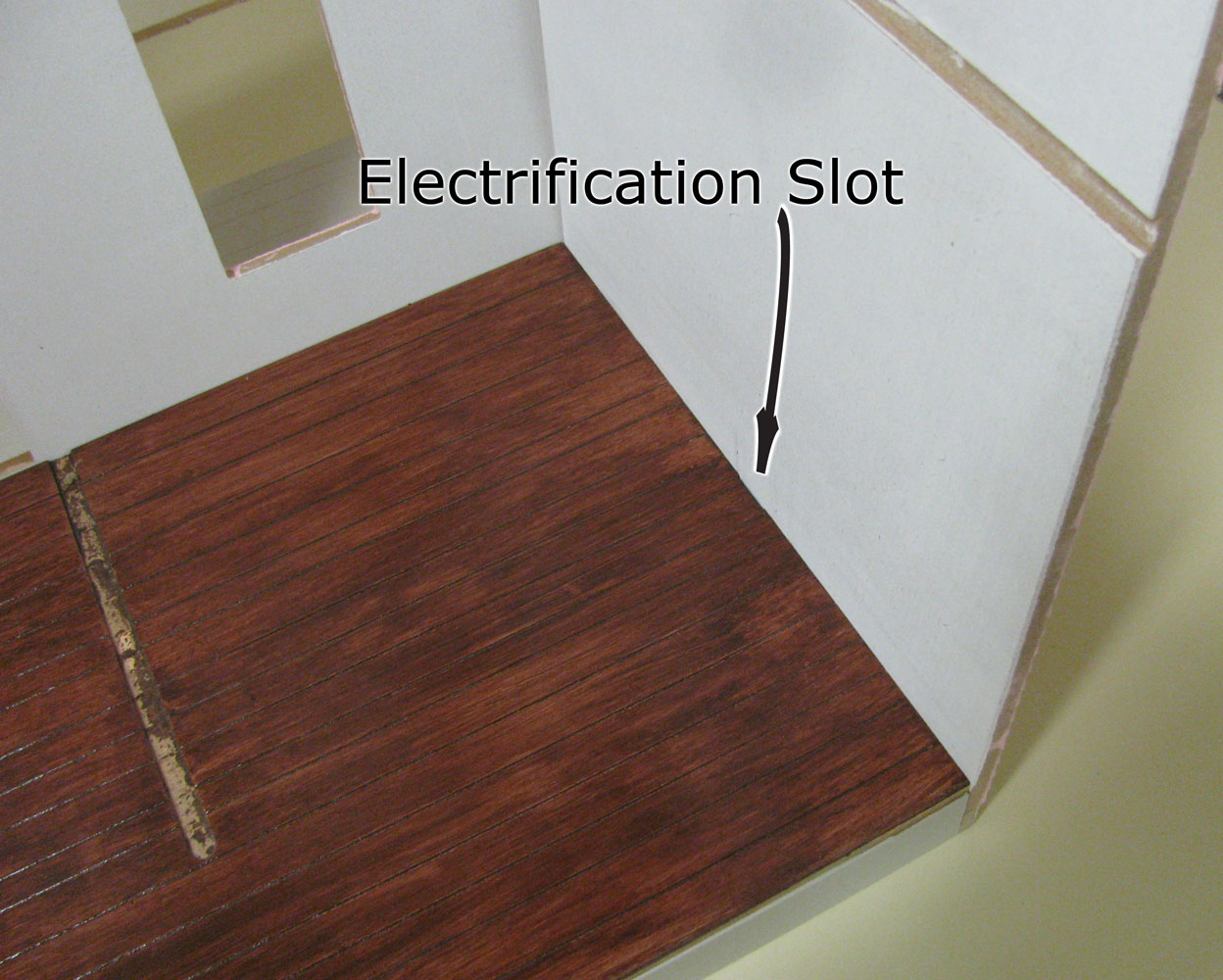

Without Glue - test the Base Floor WiringAssets/014_lg.jpg

DHTMLGoodies.com

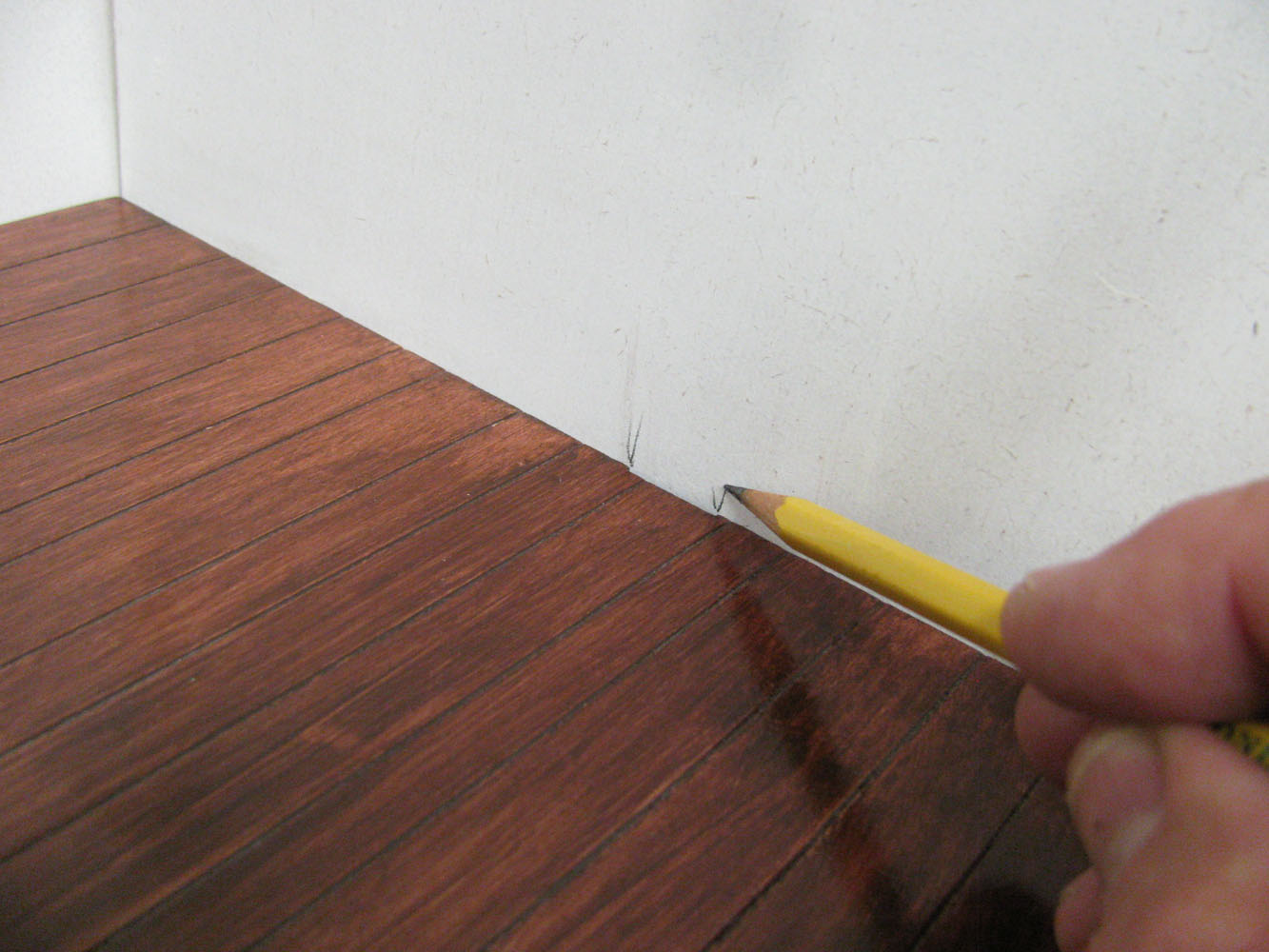

Mark the Electrification Slot on the Sidewall WiringAssets/015_lg.jpg

DHTMLGoodies.com

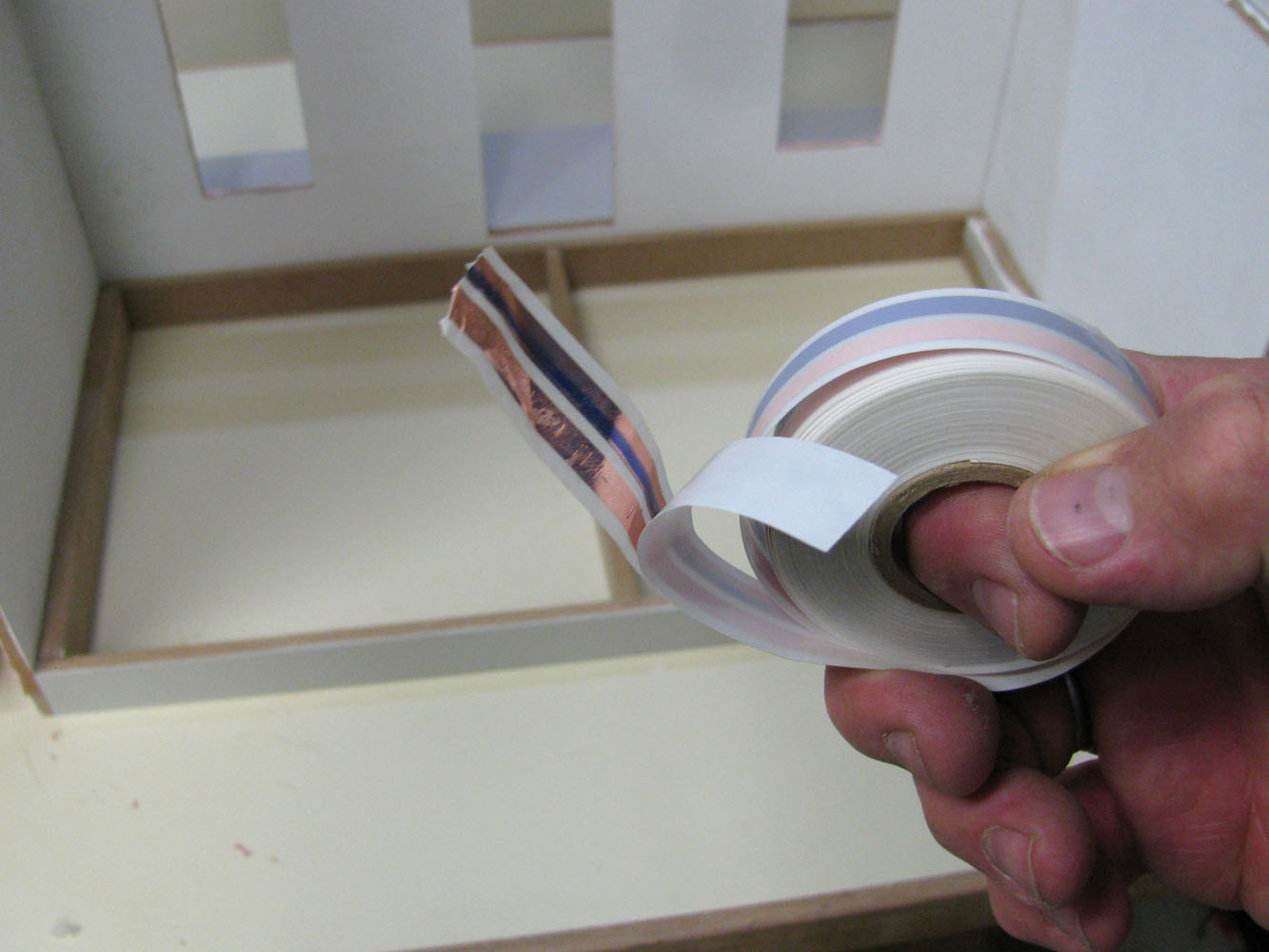

Peal some backing off the Tapewire WiringAssets/016_lg.jpg

DHTMLGoodies.com

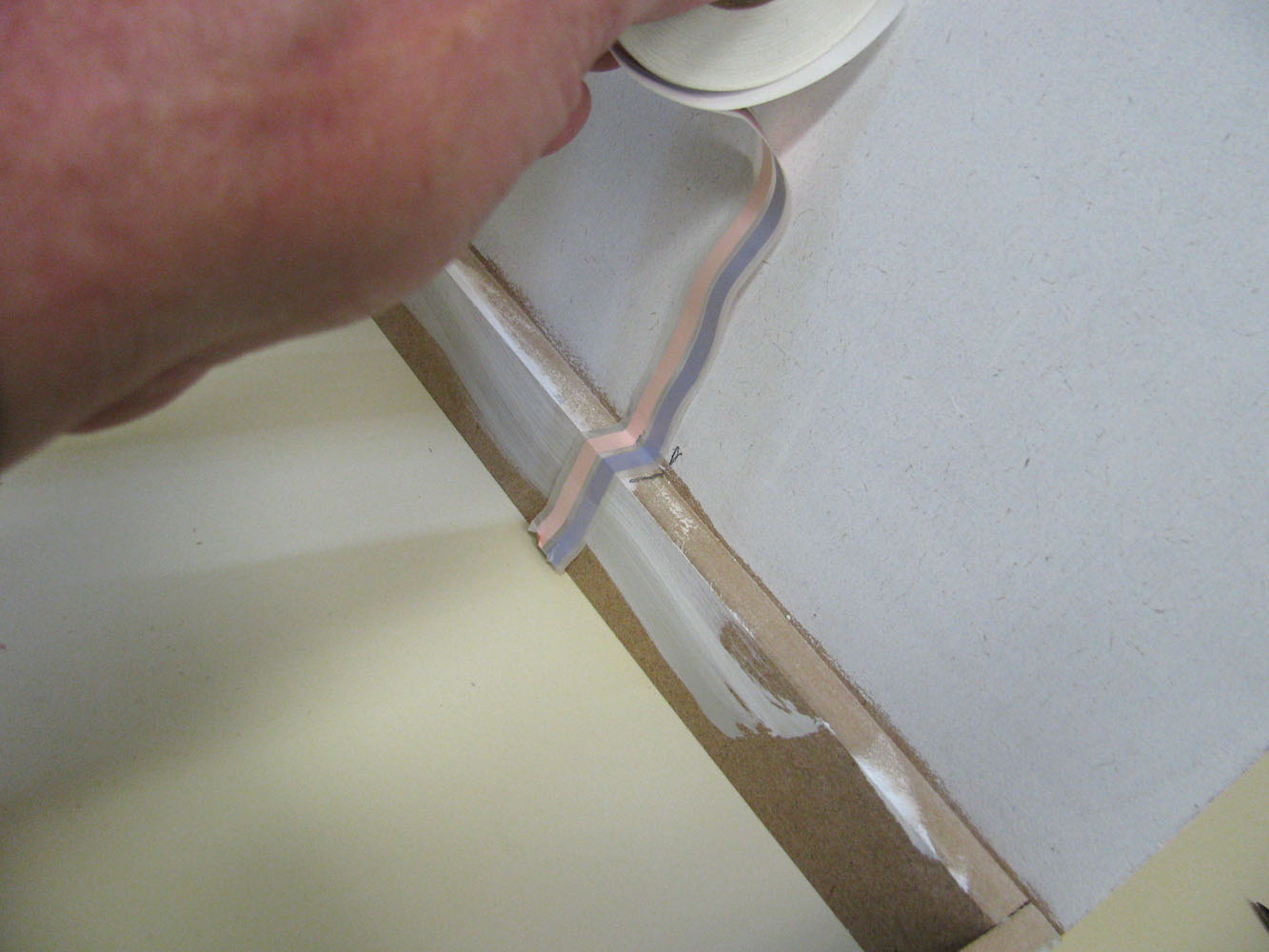

Stick the tapewire to the Side lined up with the mark WiringAssets/017_lg.jpg

DHTMLGoodies.com

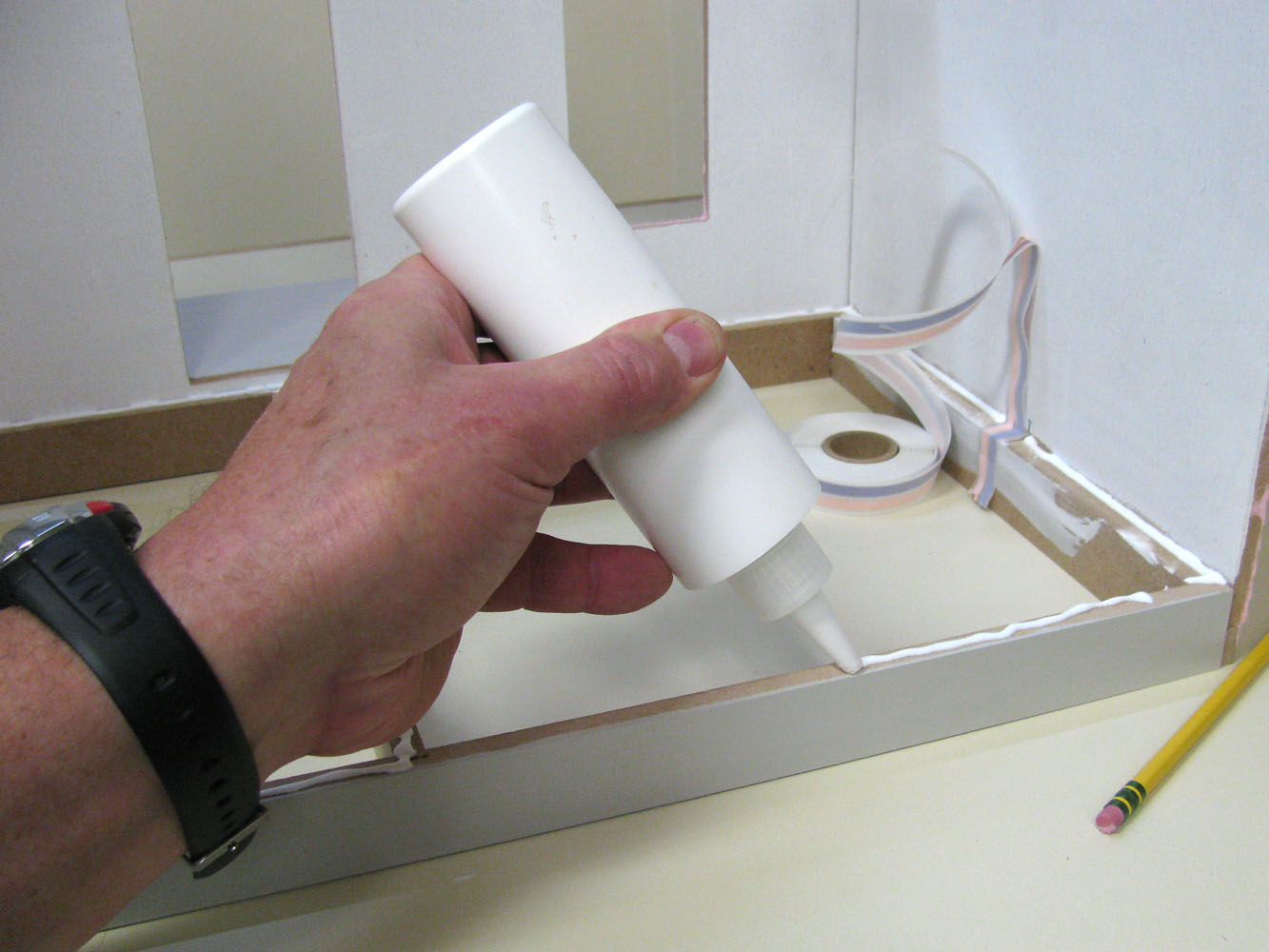

Now you can use glue WiringAssets/018_lg.jpg

DHTMLGoodies.com

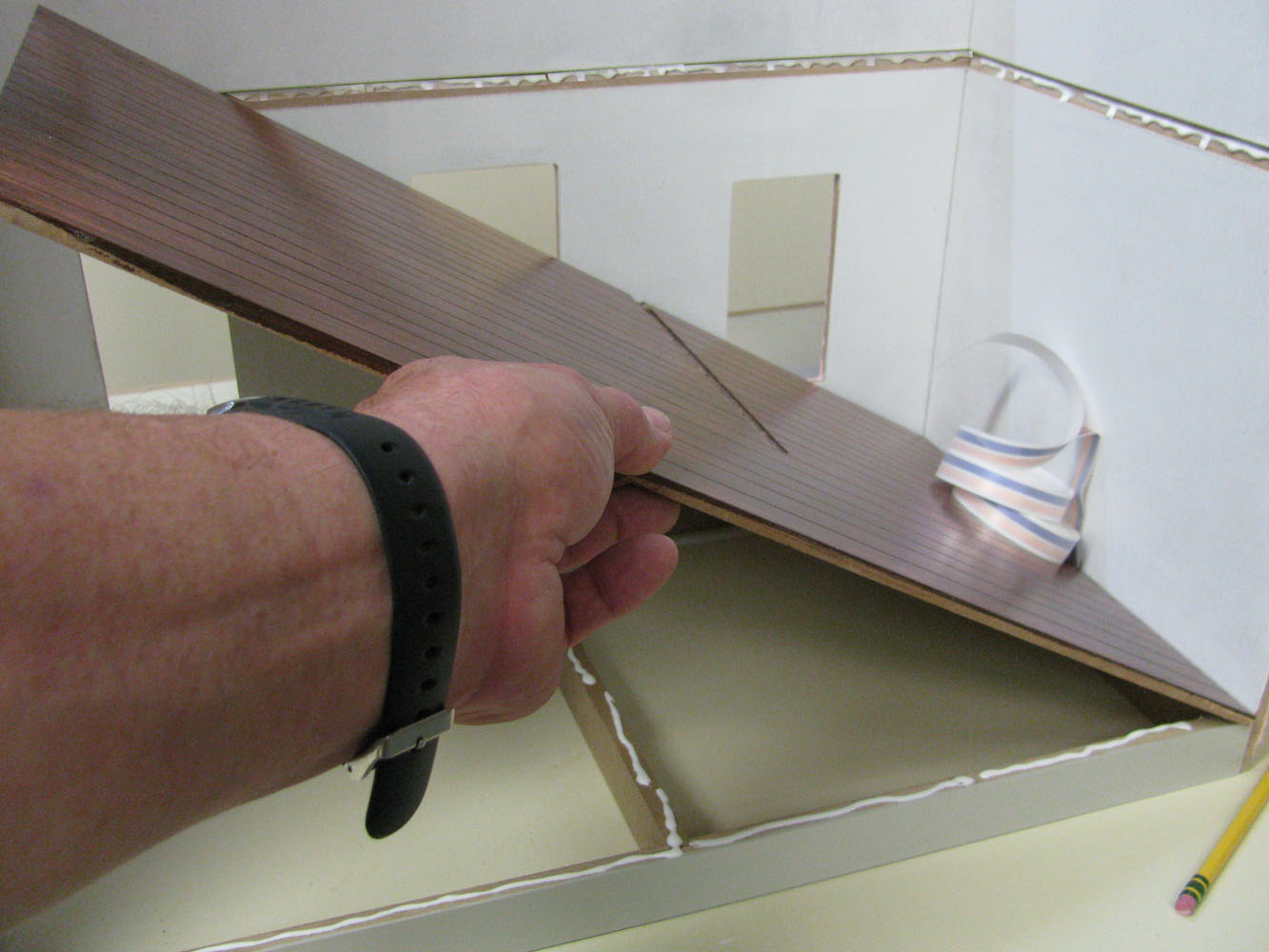

Tip the Base Floor into position with the tapewire in the E-Slot WiringAssets/019_lg.jpg

DHTMLGoodies.com

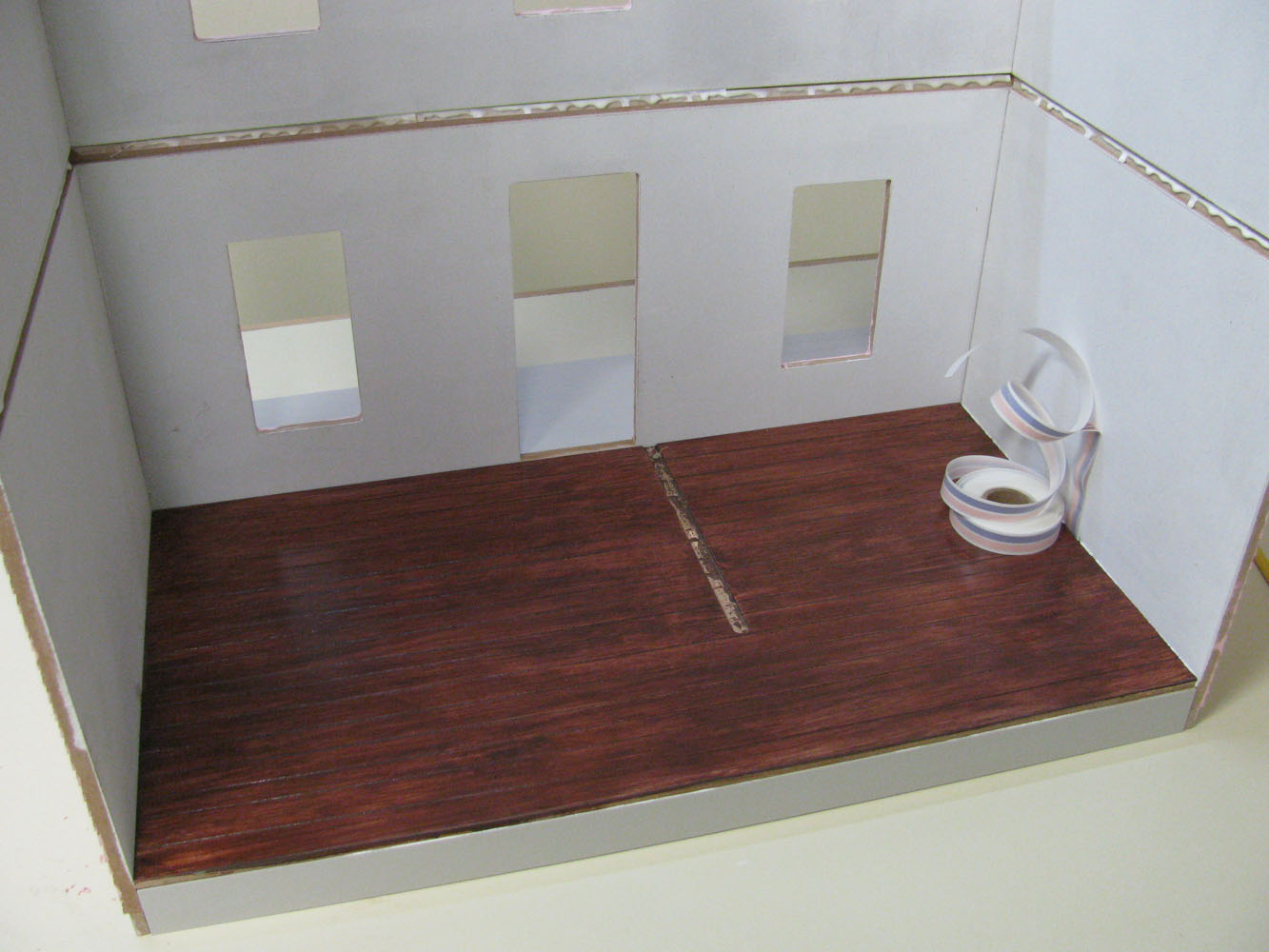

Tape and weight the Base Floor to the Foundation WiringAssets/020_lg.jpg

DHTMLGoodies.com

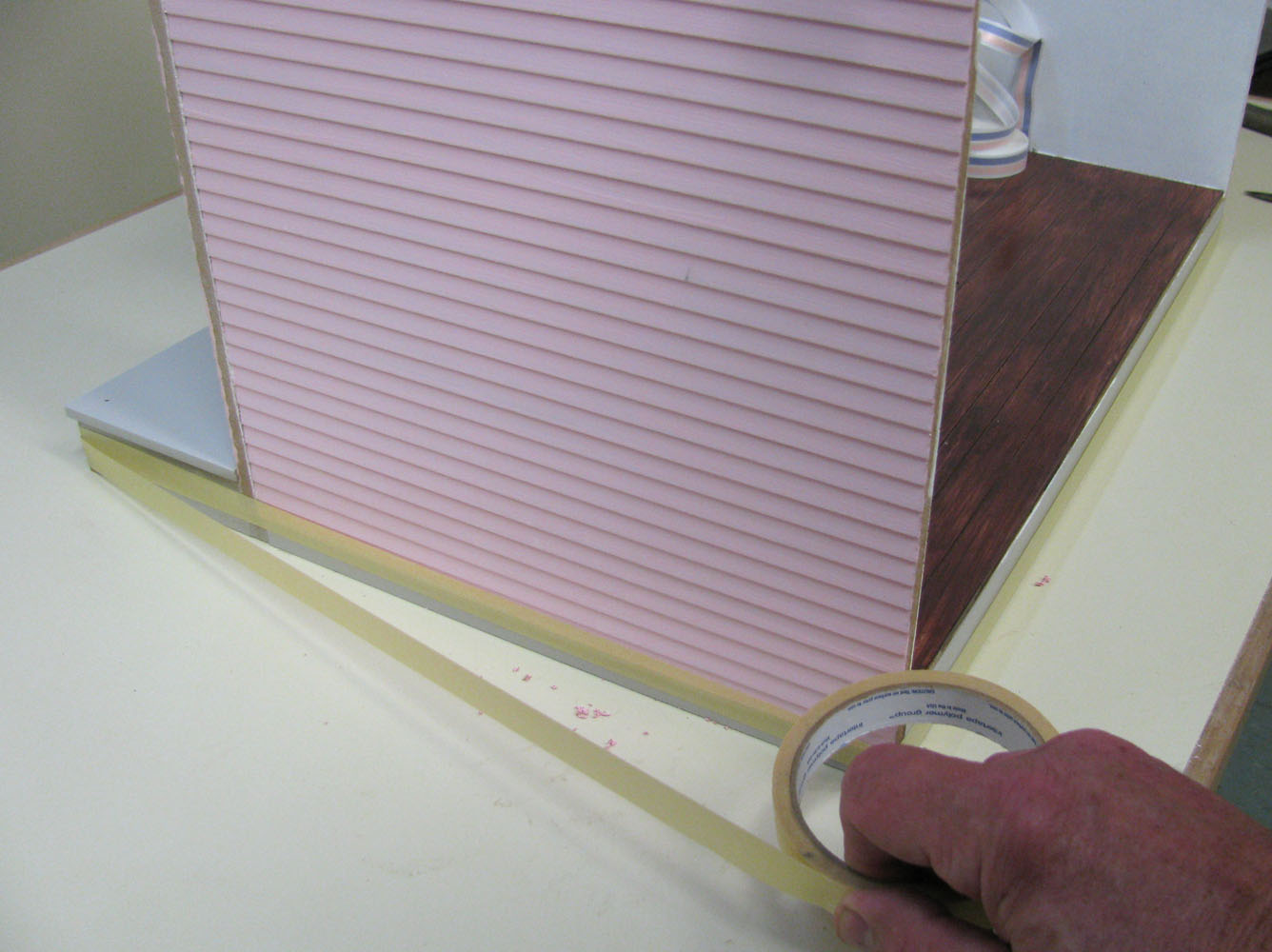

Tape around the base (twice around is tighter!) WiringAssets/021_lg.jpg

DHTMLGoodies.com

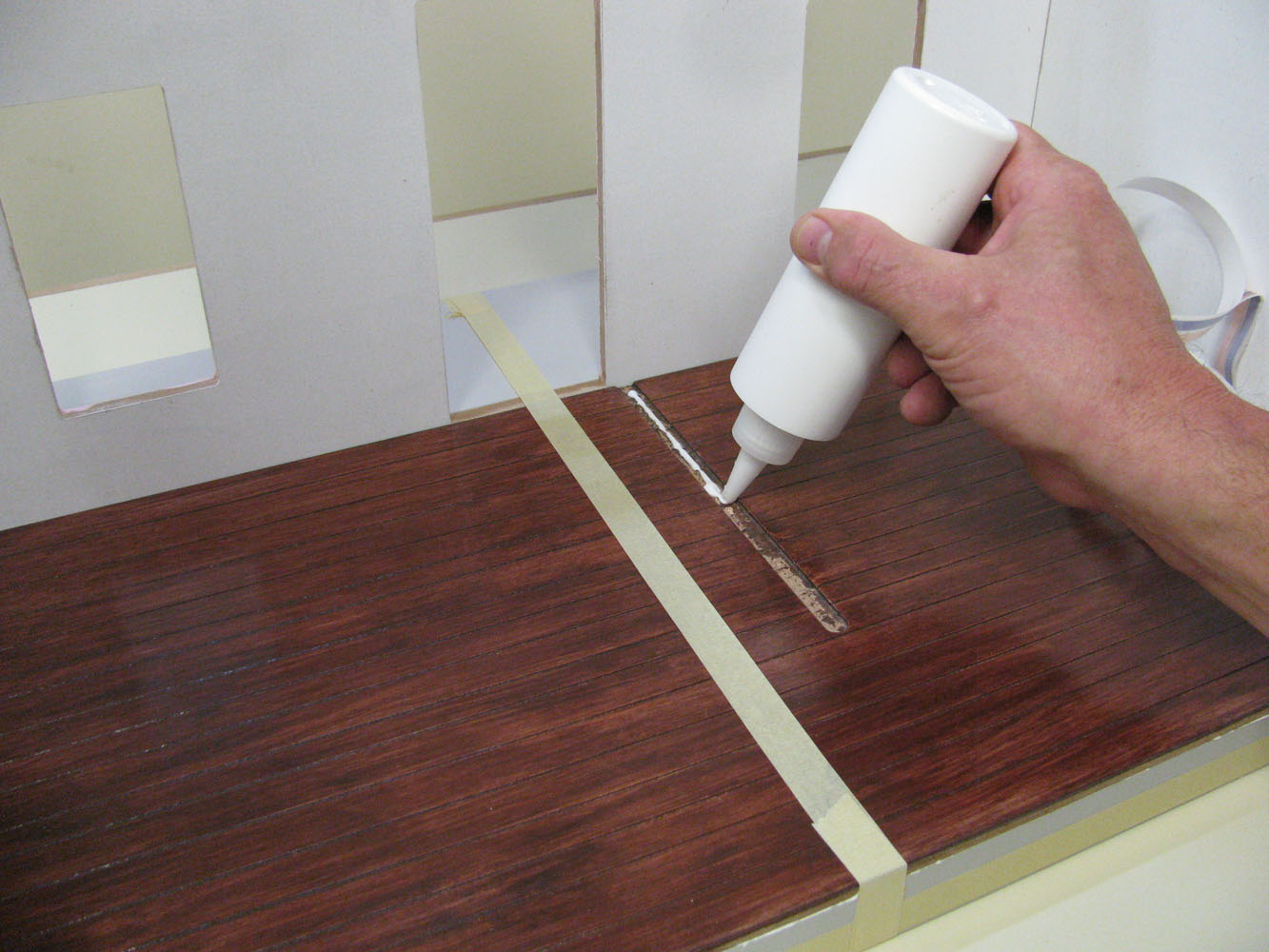

Did you clean out the groove? WiringAssets/022_lg.jpg

DHTMLGoodies.com

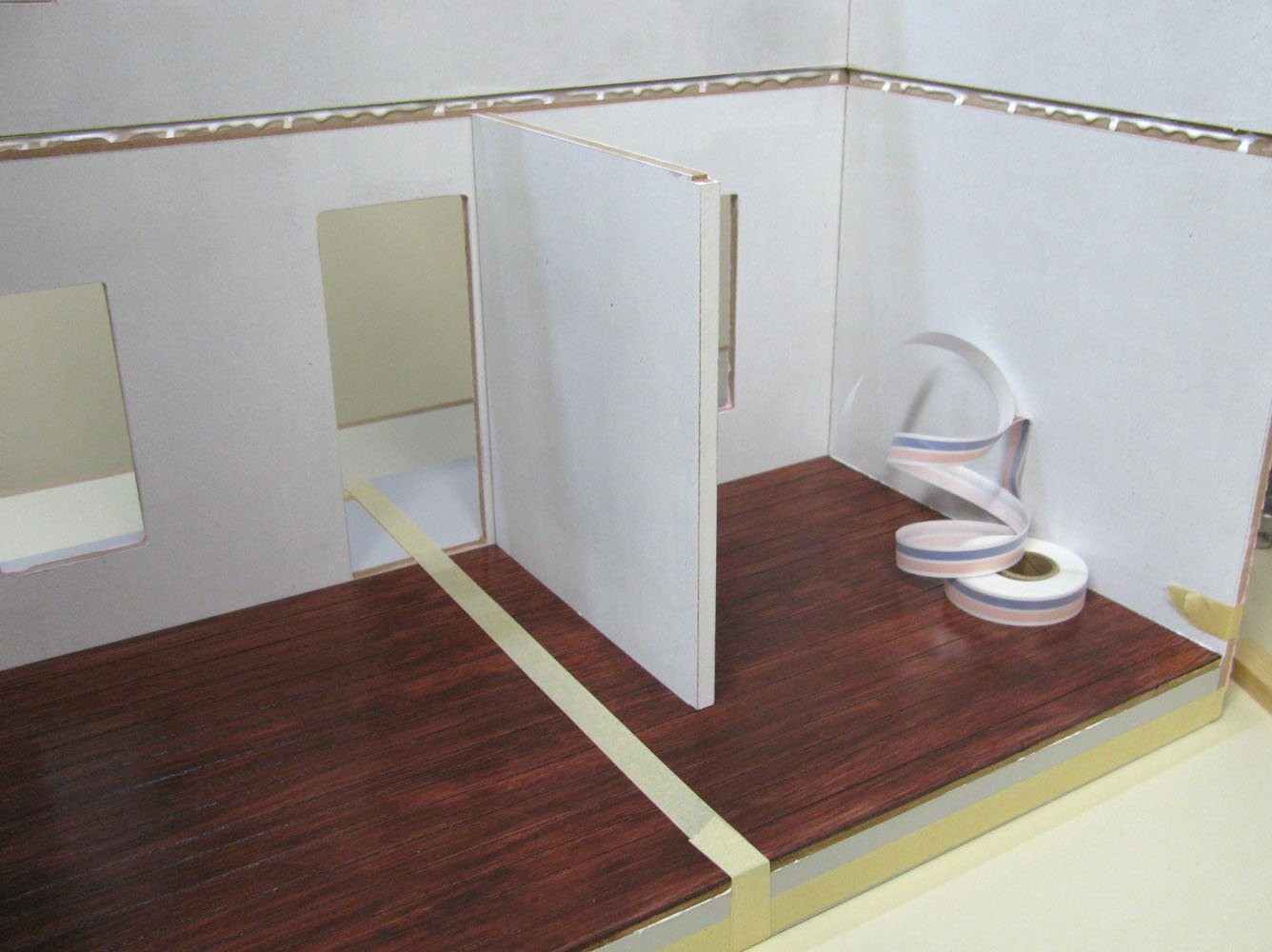

Install the Divider WiringAssets/023_lg.jpg

DHTMLGoodies.com

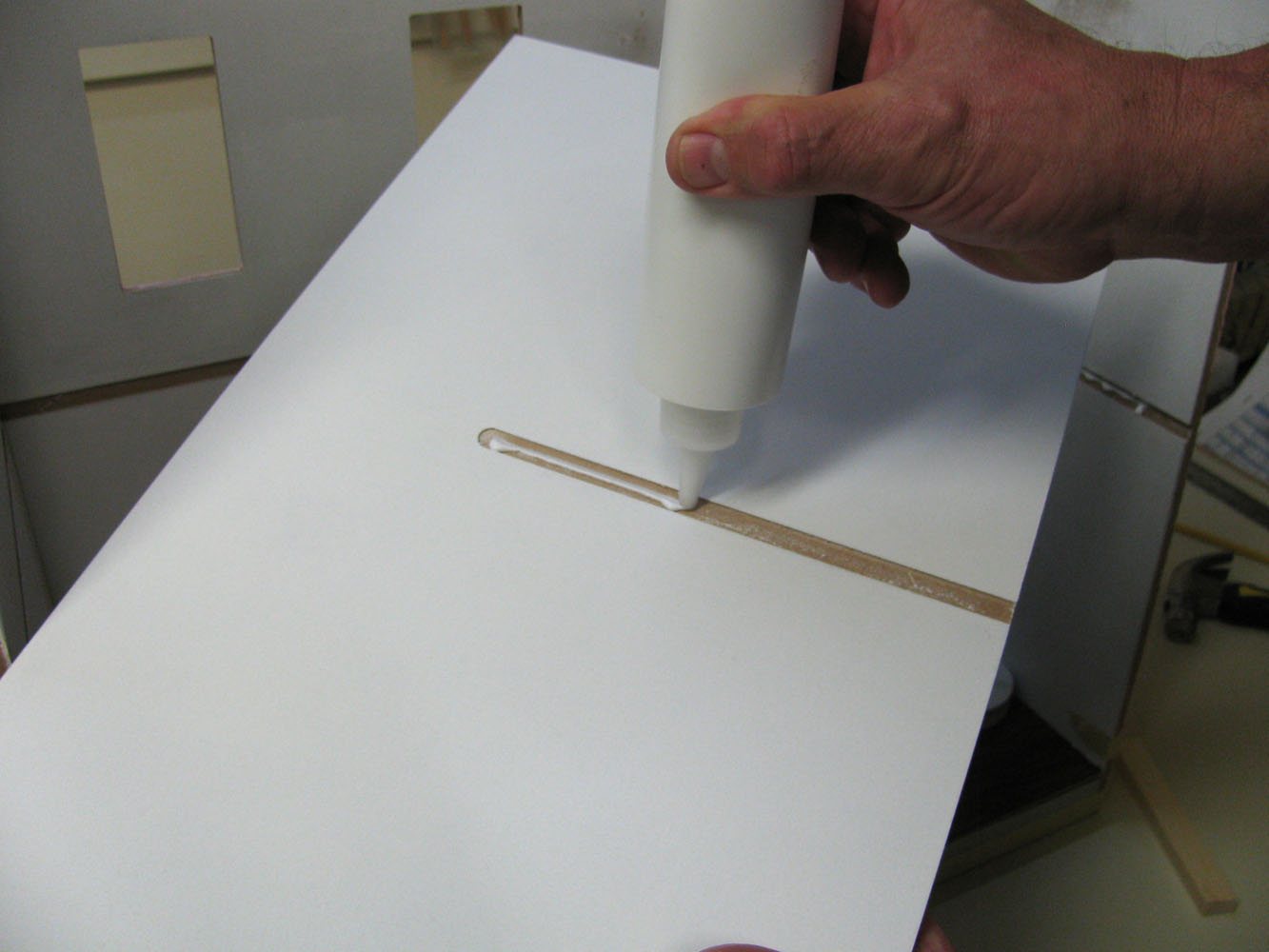

The Mid Floor ceiling WiringAssets/024_lg.jpg

DHTMLGoodies.com

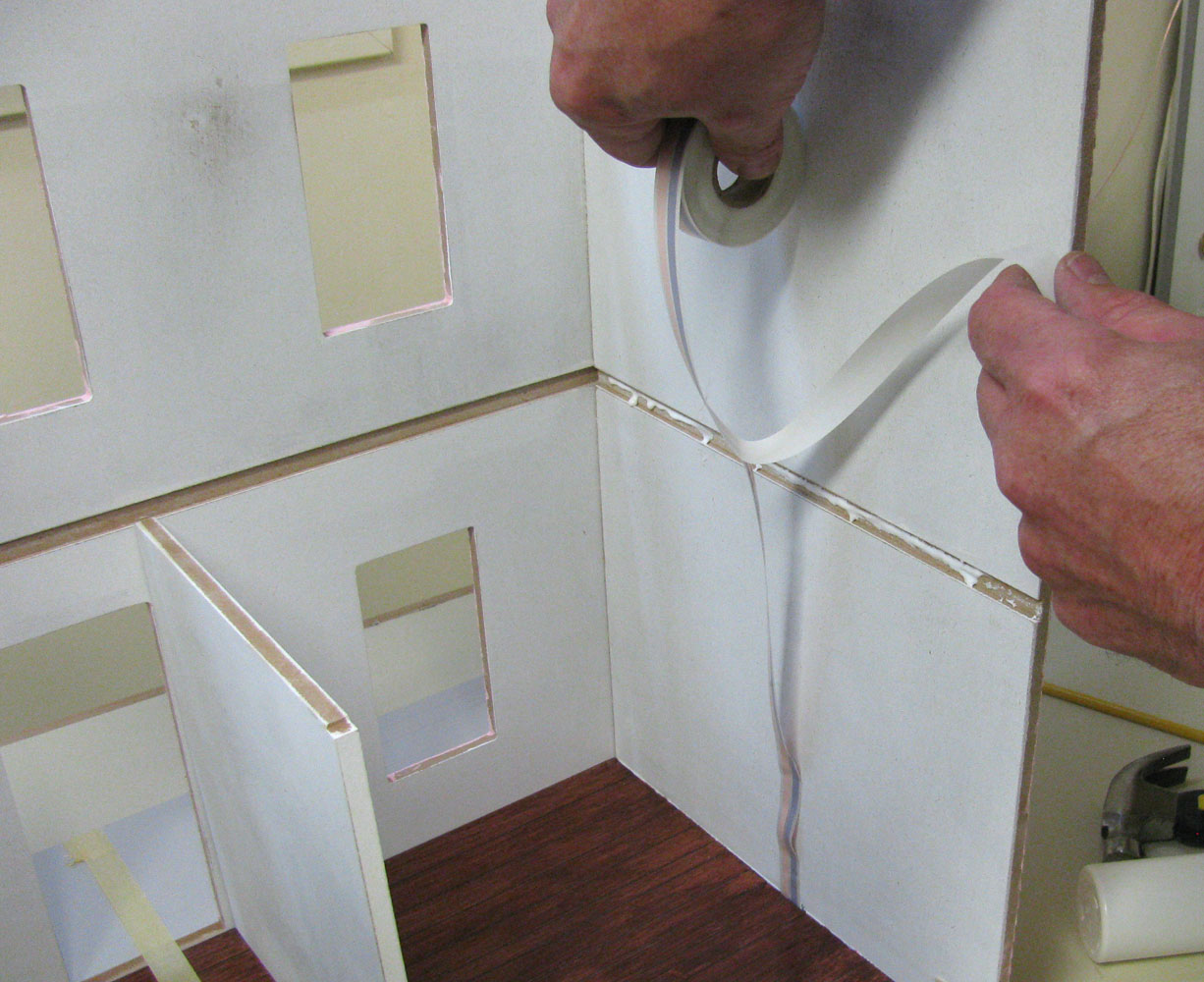

Strip the backing off but don't rub it onto the wall yet WiringAssets/025_lg.jpg

DHTMLGoodies.com

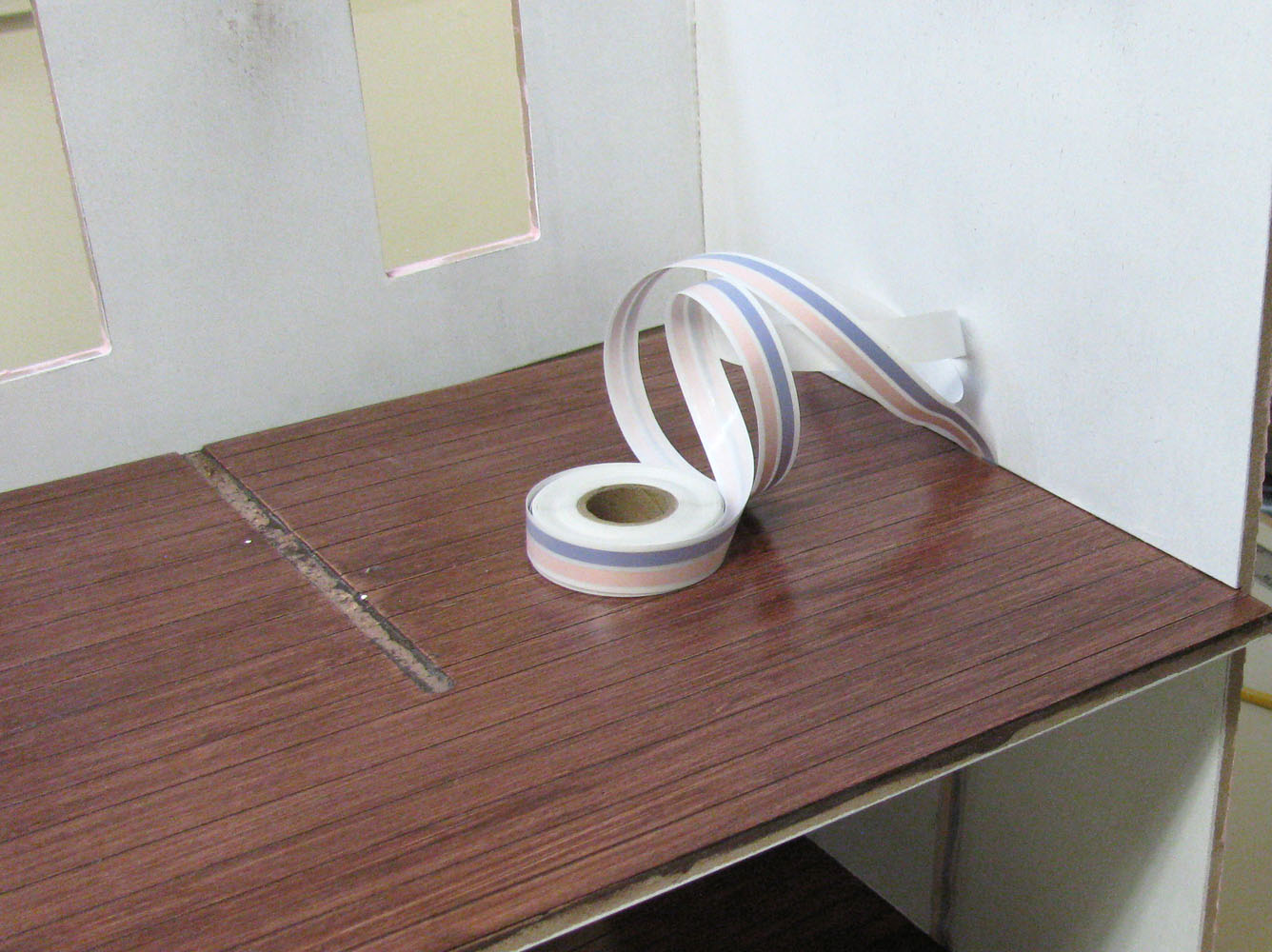

Tip the floor into position with the tapewire held tight in the E-slot WiringAssets/026_lg.jpg

DHTMLGoodies.com

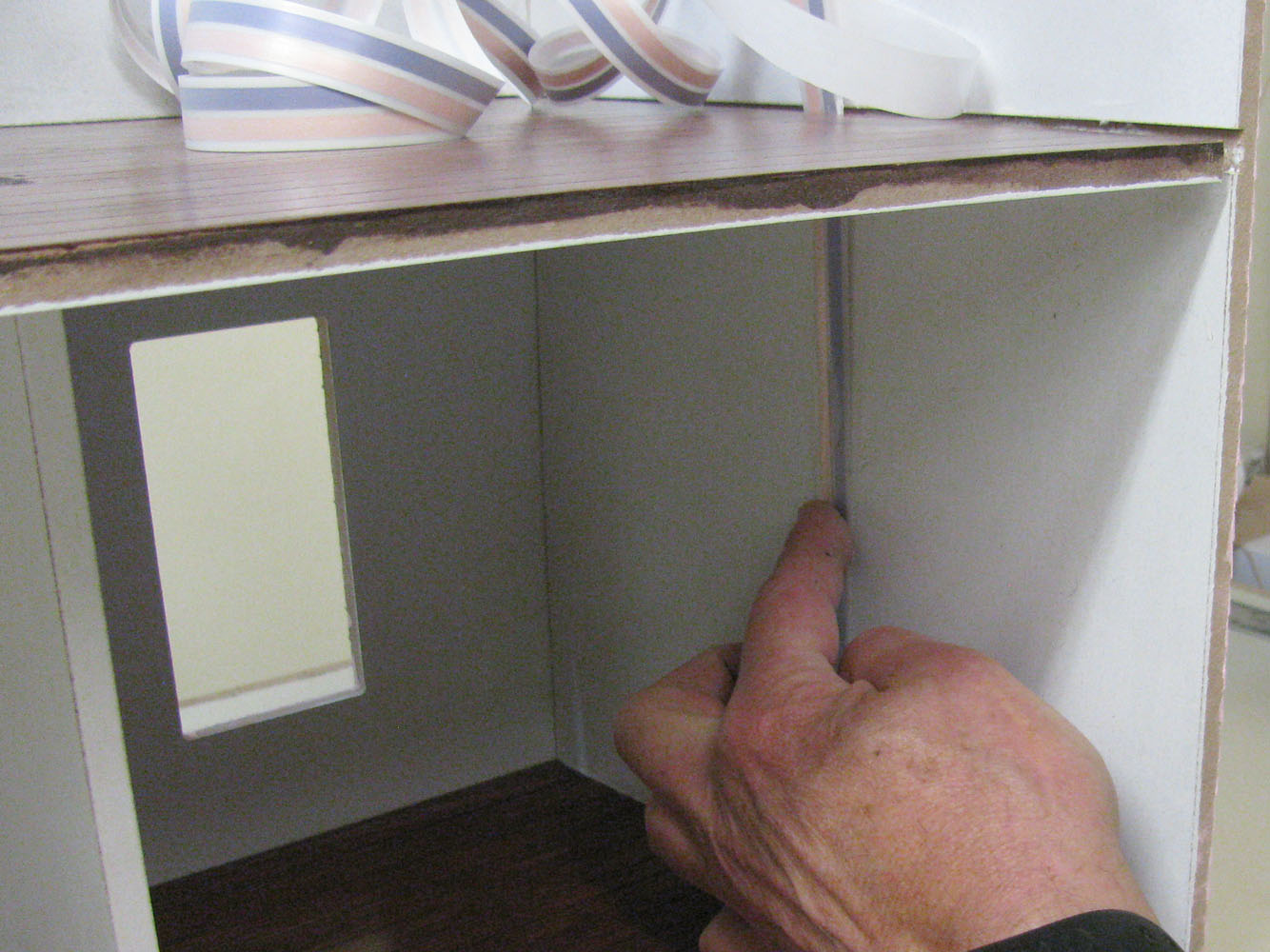

... now you can rub down the tapewire WiringAssets/027_lg.jpg

DHTMLGoodies.com

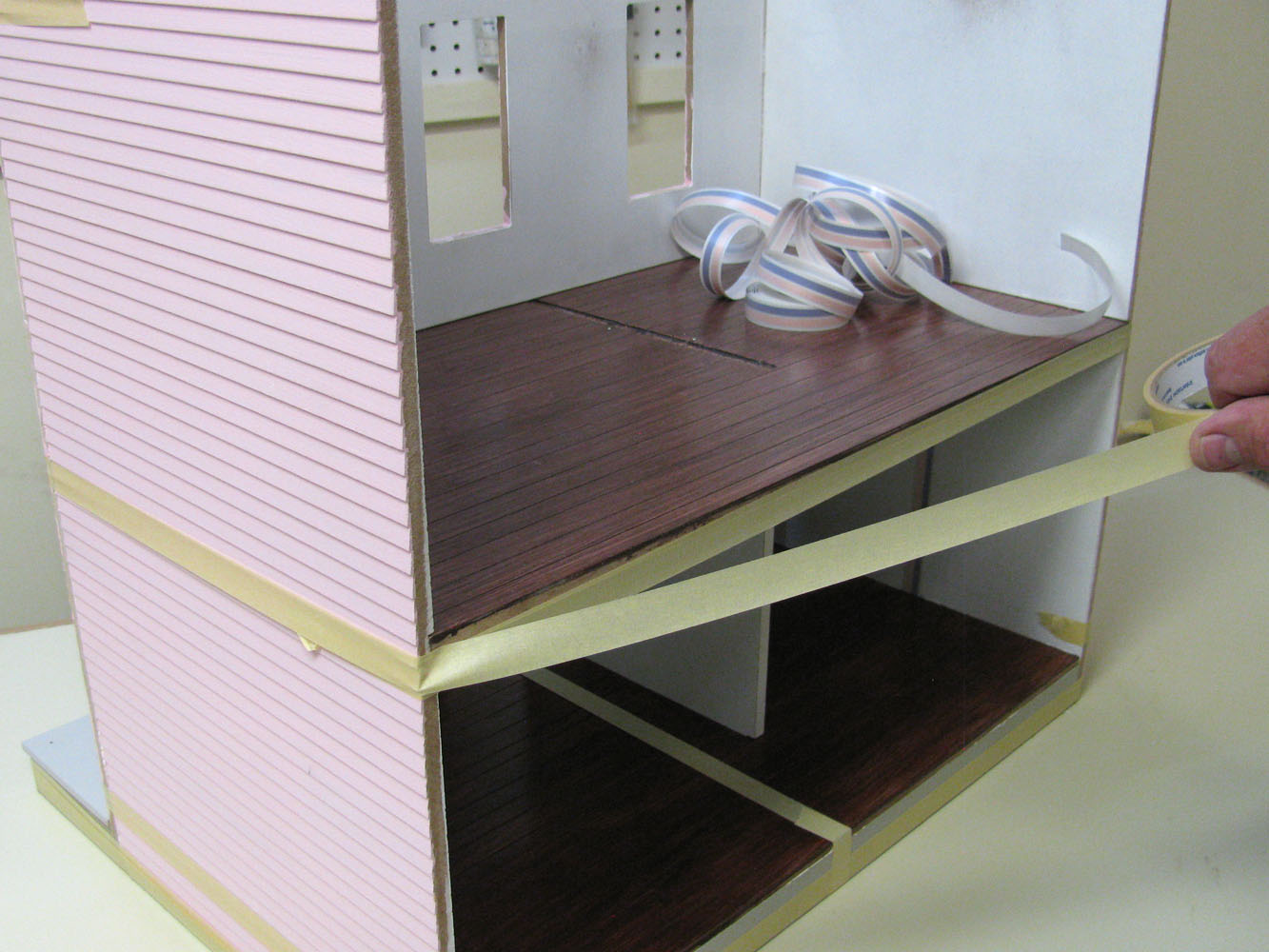

Tighten up the house in the middle WiringAssets/028_lg.jpg

DHTMLGoodies.com

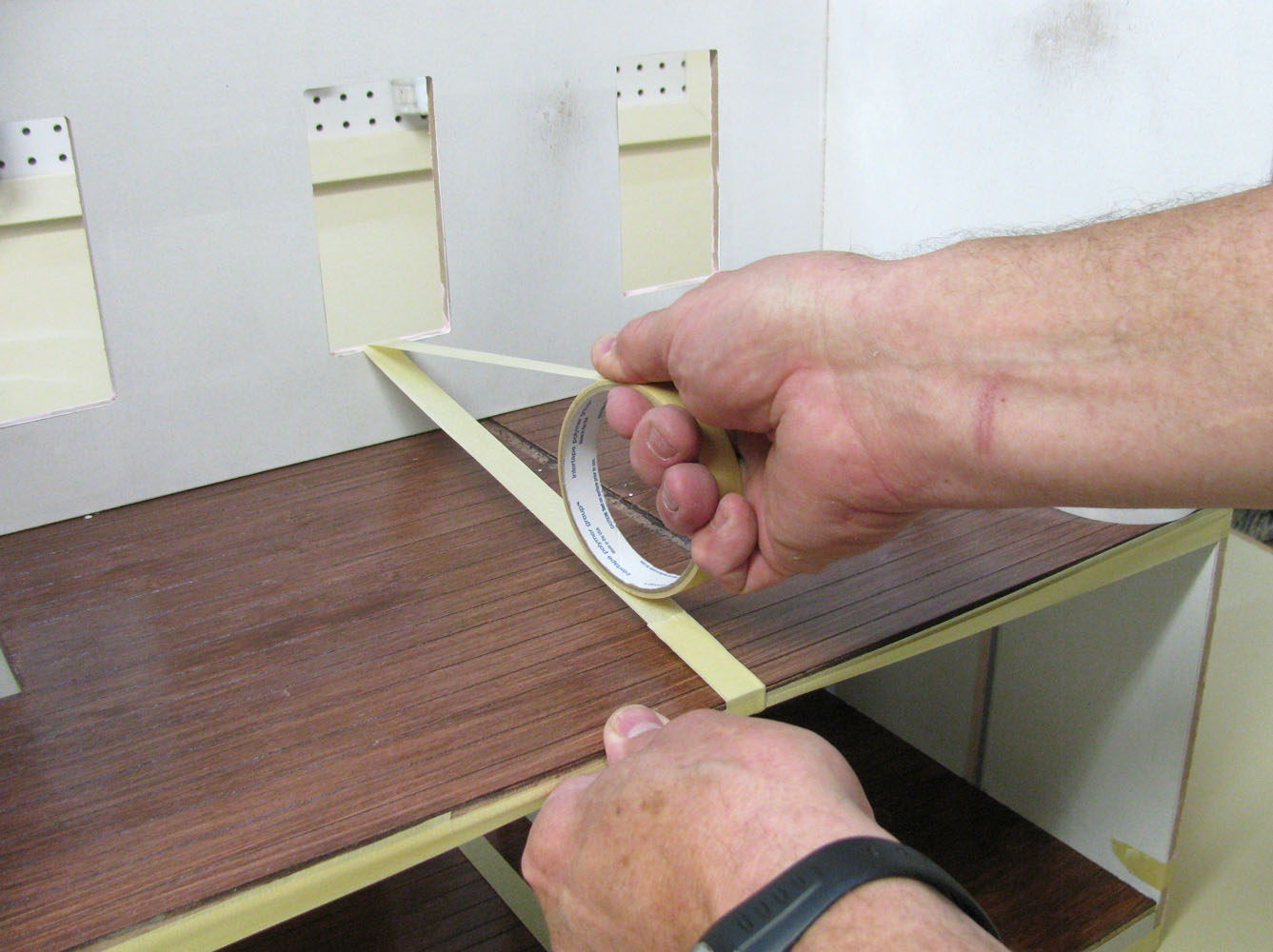

Tighten up the Front WiringAssets/029_lg.jpg

DHTMLGoodies.com

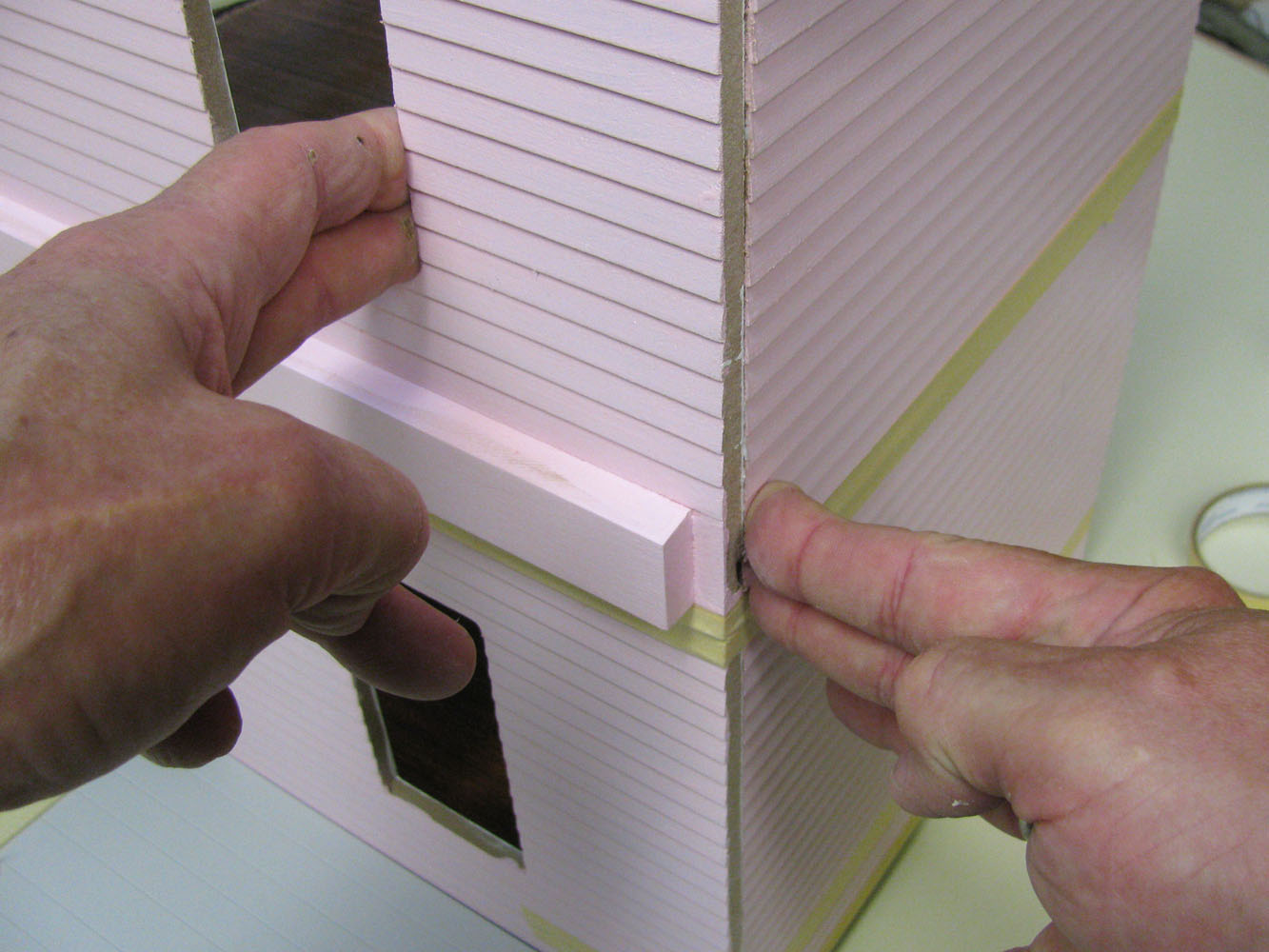

Make sure the Front is lined up with the Sides WiringAssets/030_lg.jpg

DHTMLGoodies.com

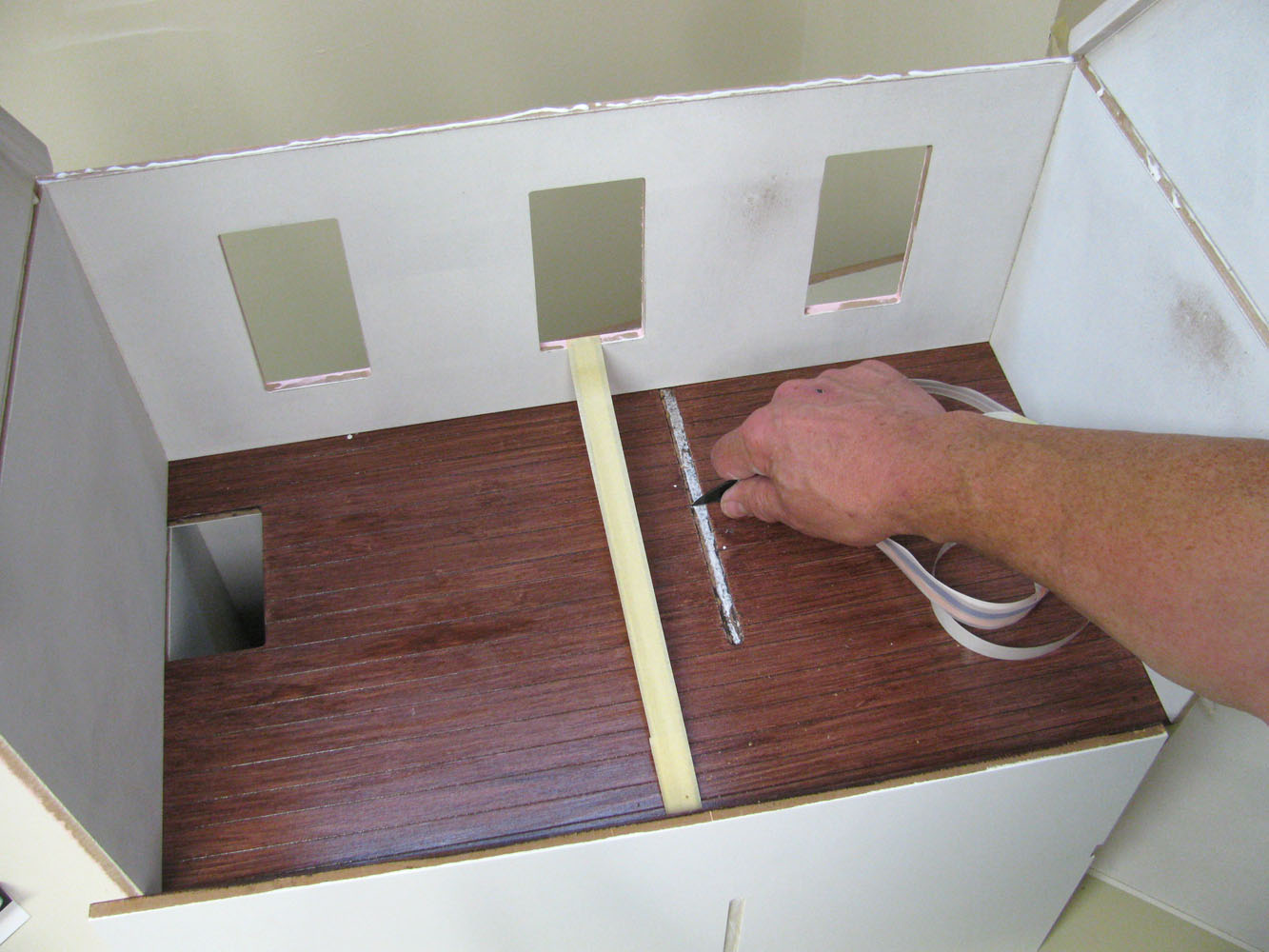

I forgot to clean out this groove - so I have to do it now! WiringAssets/031_lg.jpg

DHTMLGoodies.com

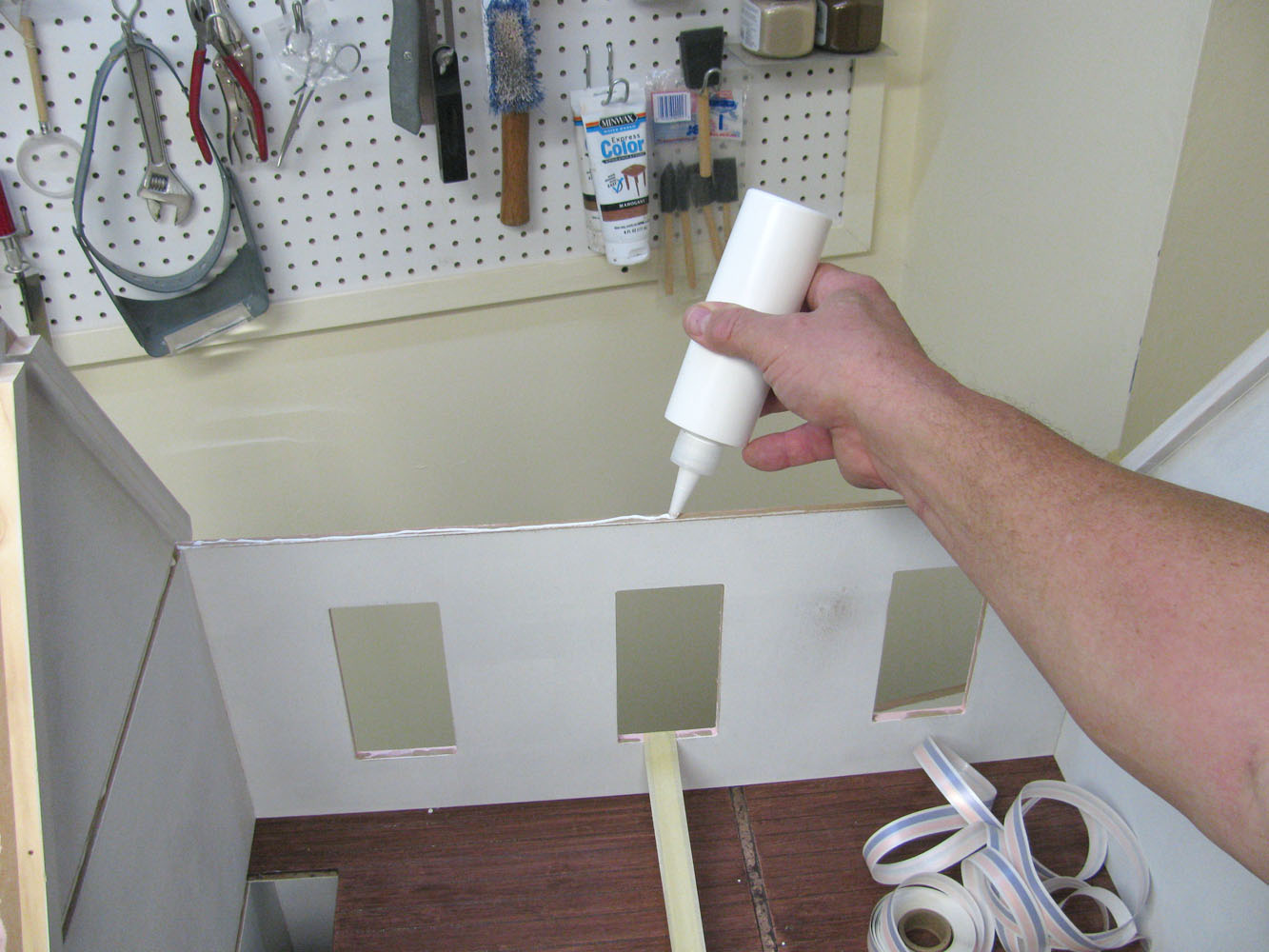

Put glue on the top edge of the Front WiringAssets/032_lg.jpg

DHTMLGoodies.com

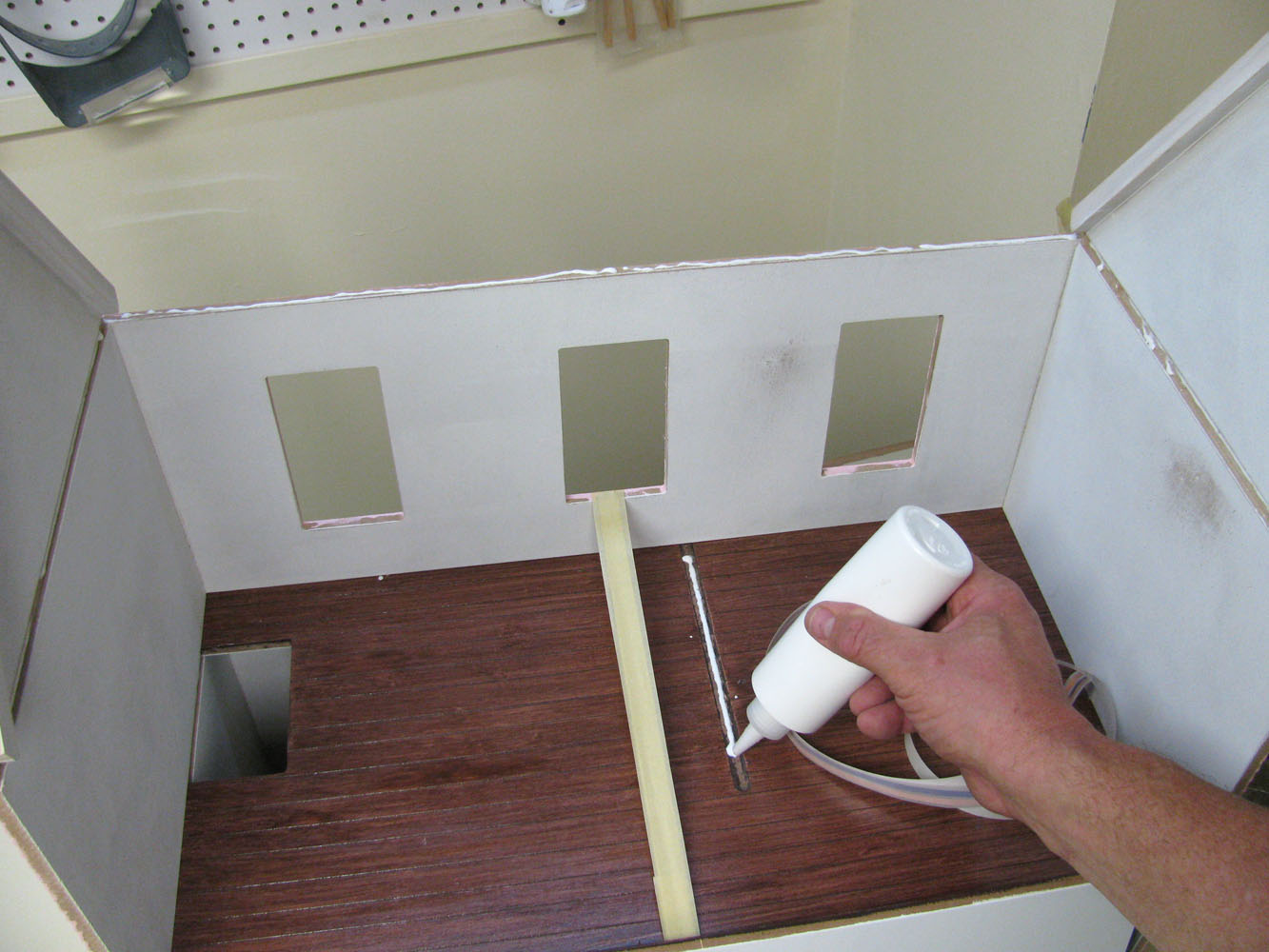

WiringAssets/033_lg.jpg

DHTMLGoodies.com

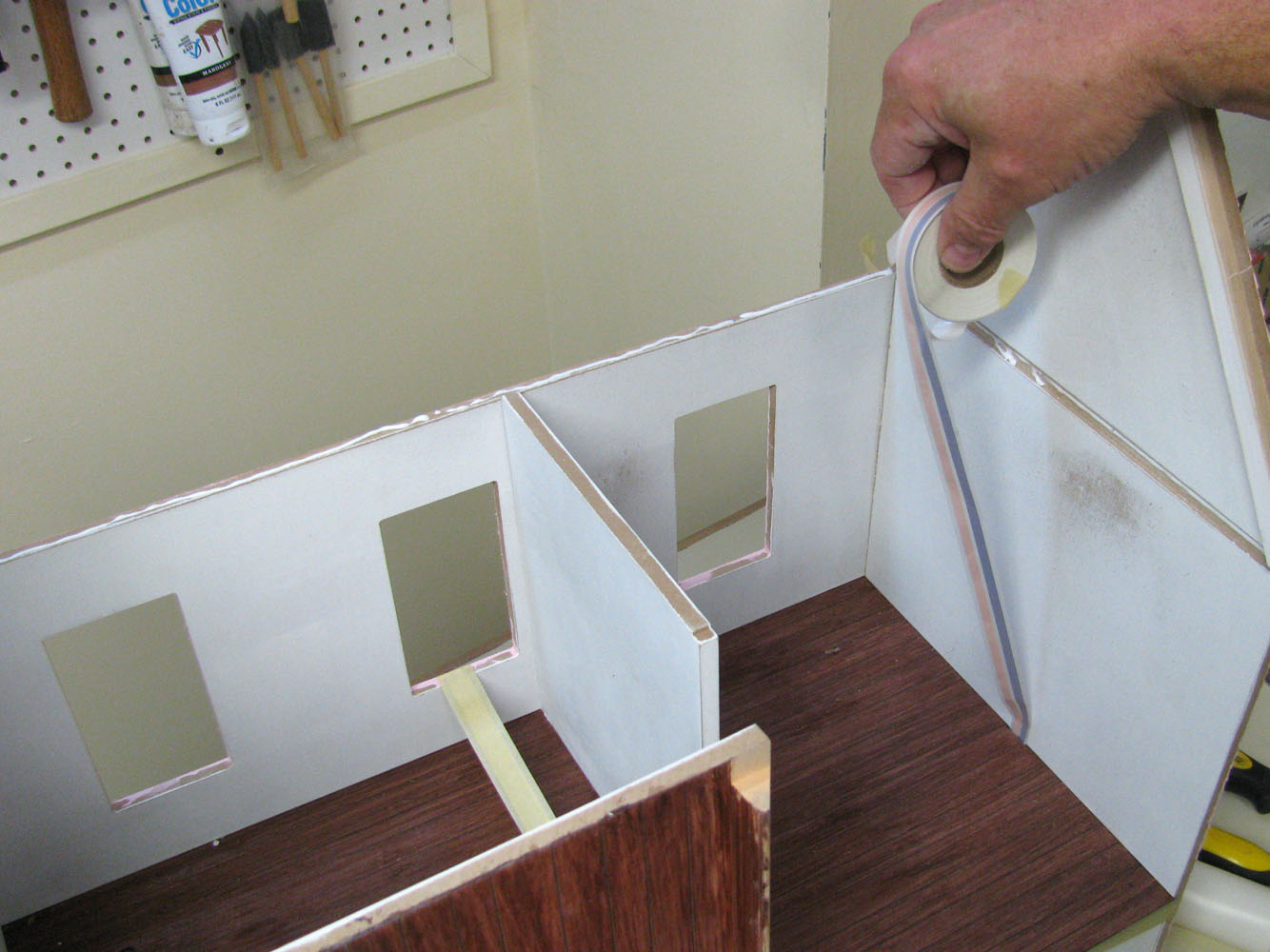

Strip off the backing but don't rub it down WiringAssets/034_lg.jpg

DHTMLGoodies.com

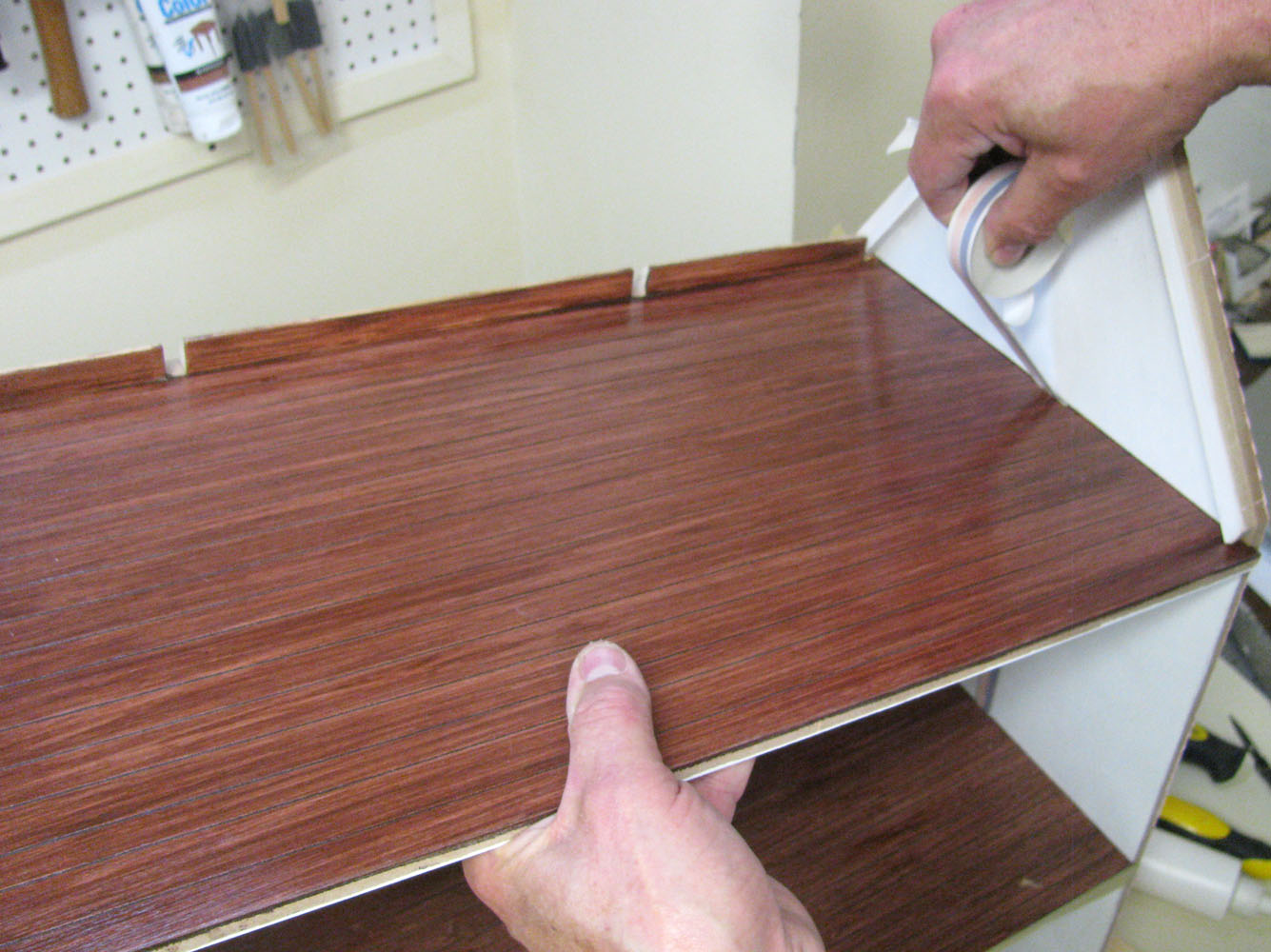

Tip in the floor with the tape tight in the E-Slot WiringAssets/035_lg.jpg

DHTMLGoodies.com

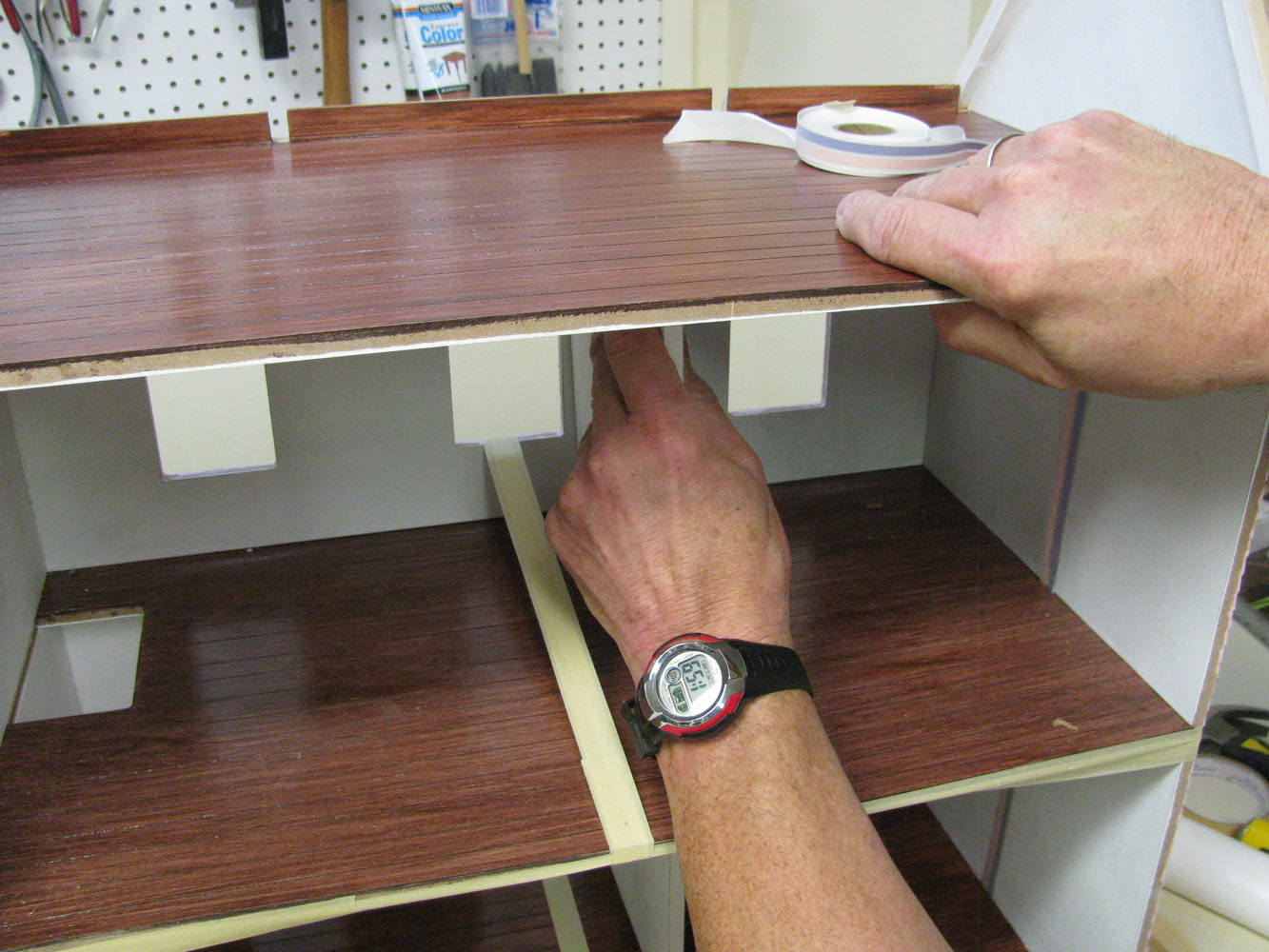

Feed the Divider into the groove WiringAssets/036_lg.jpg

DHTMLGoodies.com

Line up the back edges WiringAssets/037_lg.jpg

DHTMLGoodies.com

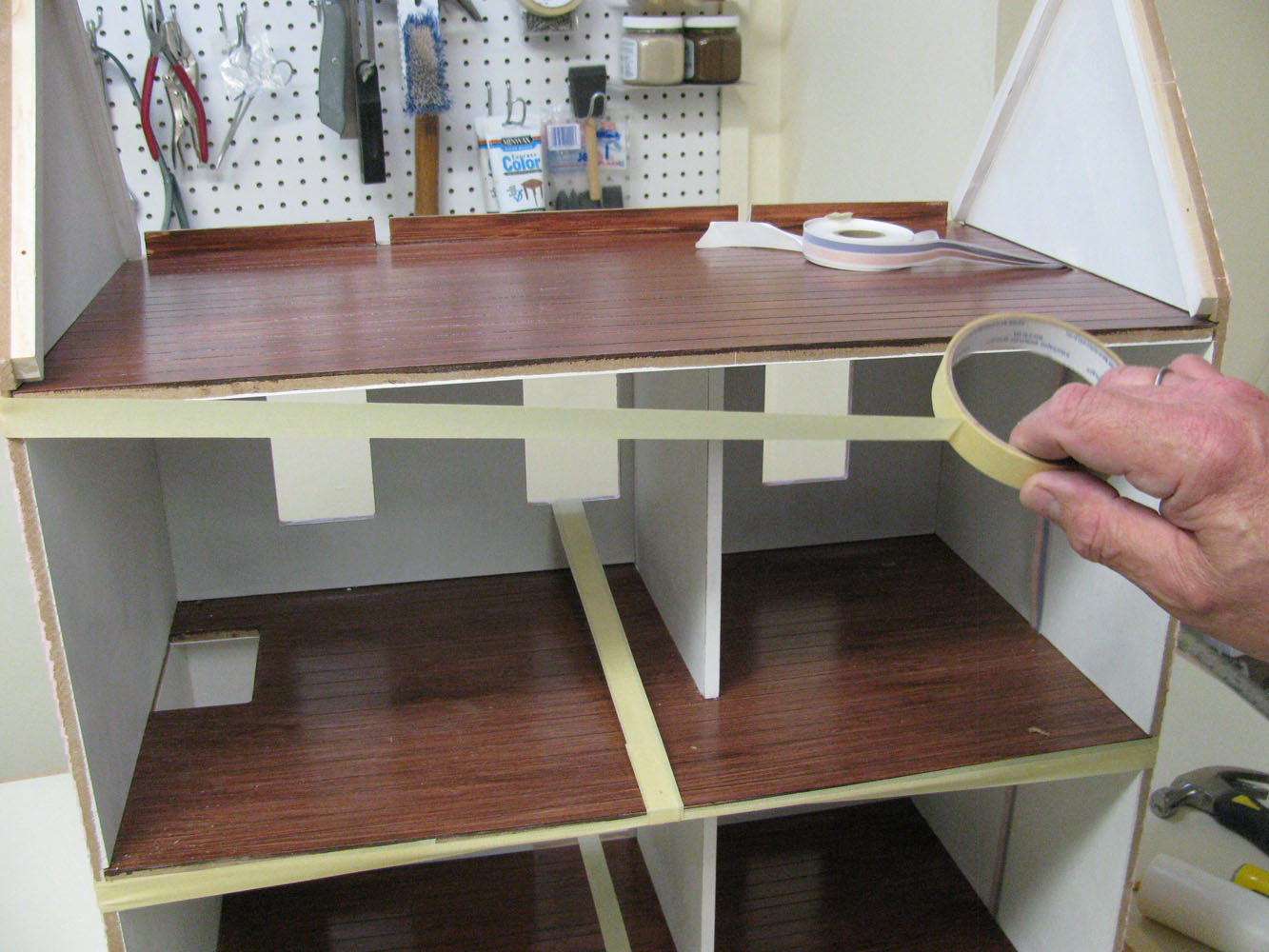

Tighten up the house at the Top Floor WiringAssets/038_lg.jpg

DHTMLGoodies.com

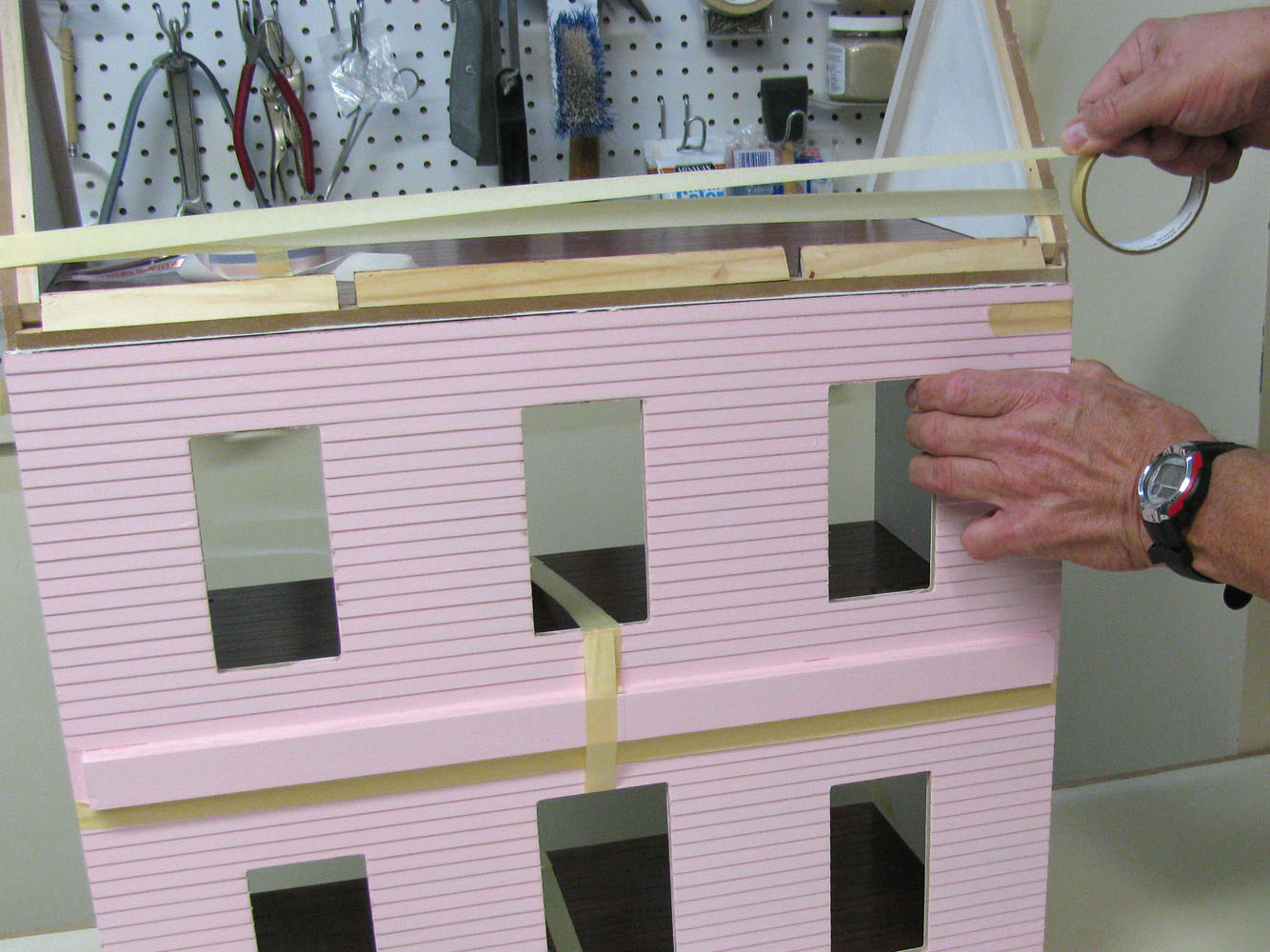

Tape above the Top Floor WiringAssets/039_lg.jpg

DHTMLGoodies.com

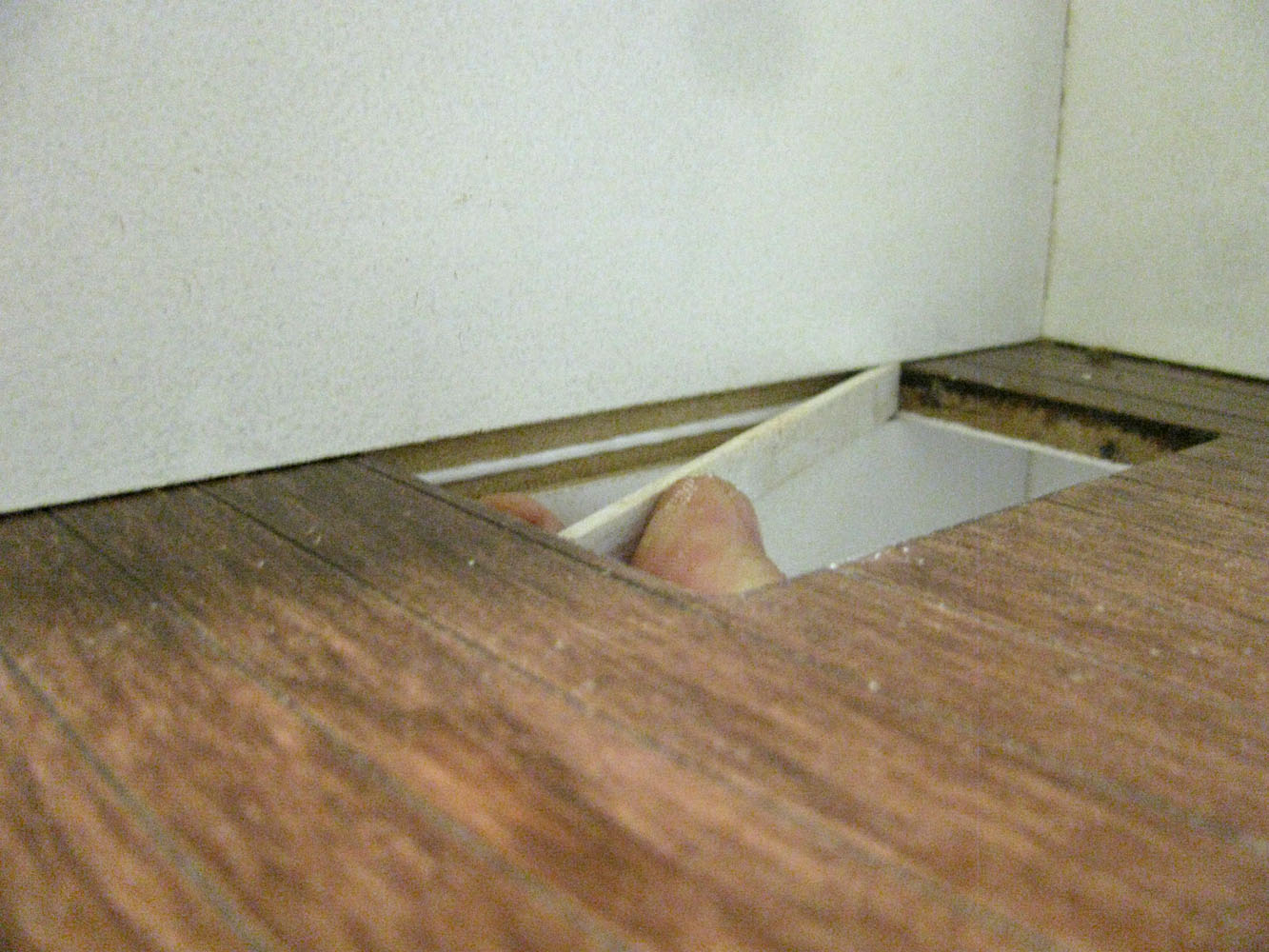

Install the Groove-Fill WiringAssets/040_lg.jpg

DHTMLGoodies.com

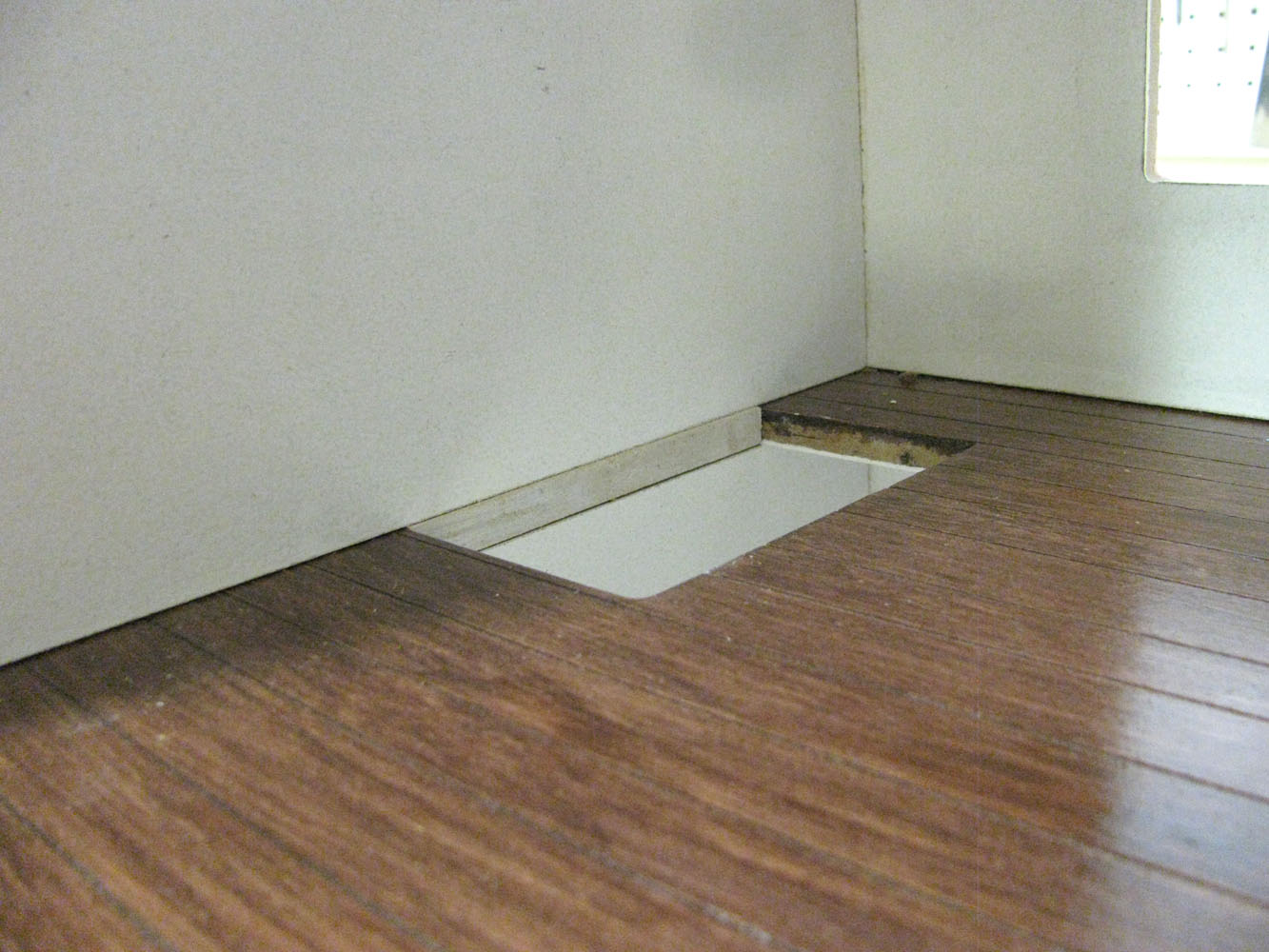

WiringAssets/041_lg.jpg

DHTMLGoodies.com

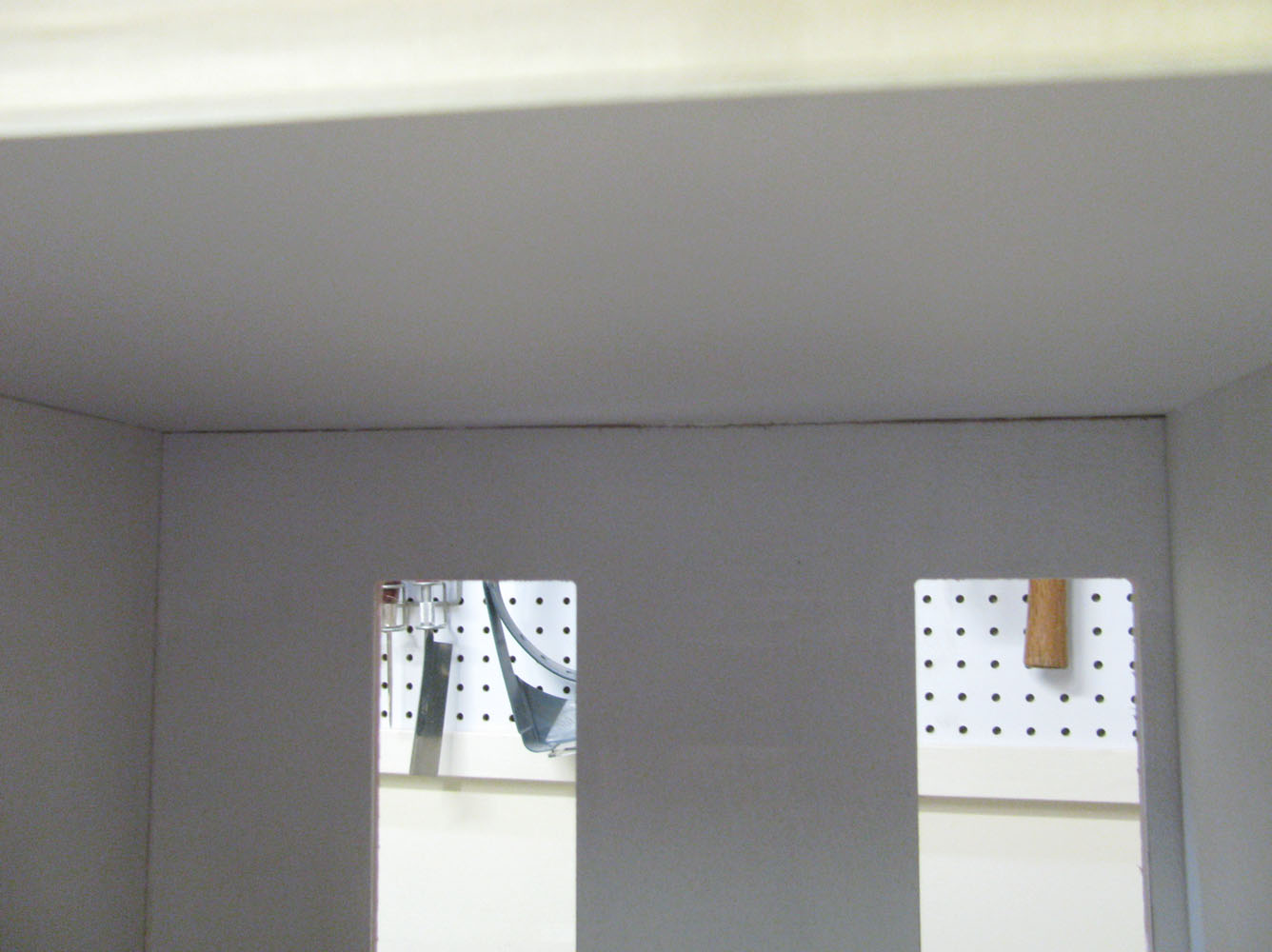

A good fit - there's no gap under the Top Floor WiringAssets/042_lg.jpg

DHTMLGoodies.com

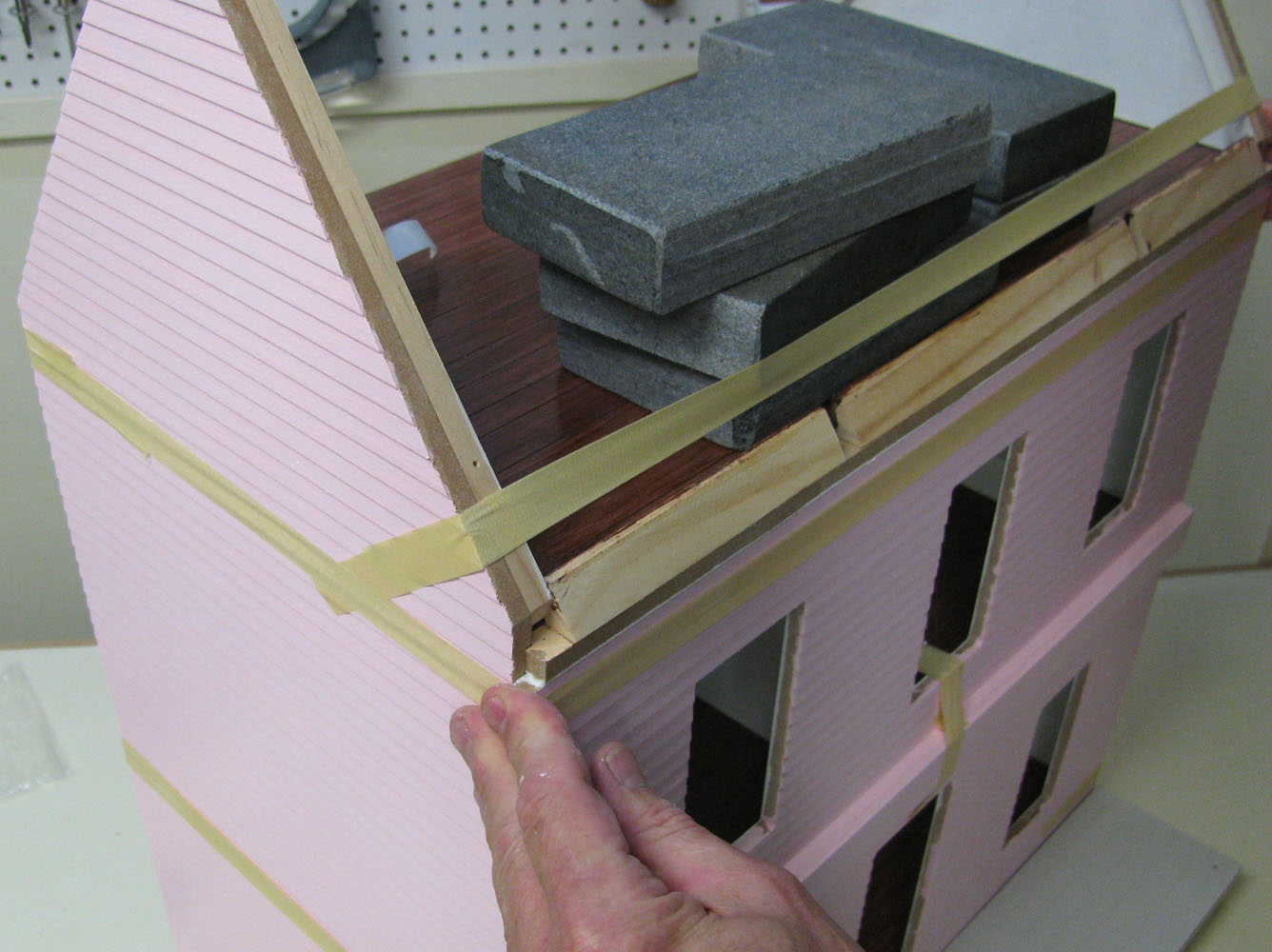

Line up the Front with the Sides on both ends WiringAssets/043_lg.jpg

DHTMLGoodies.com

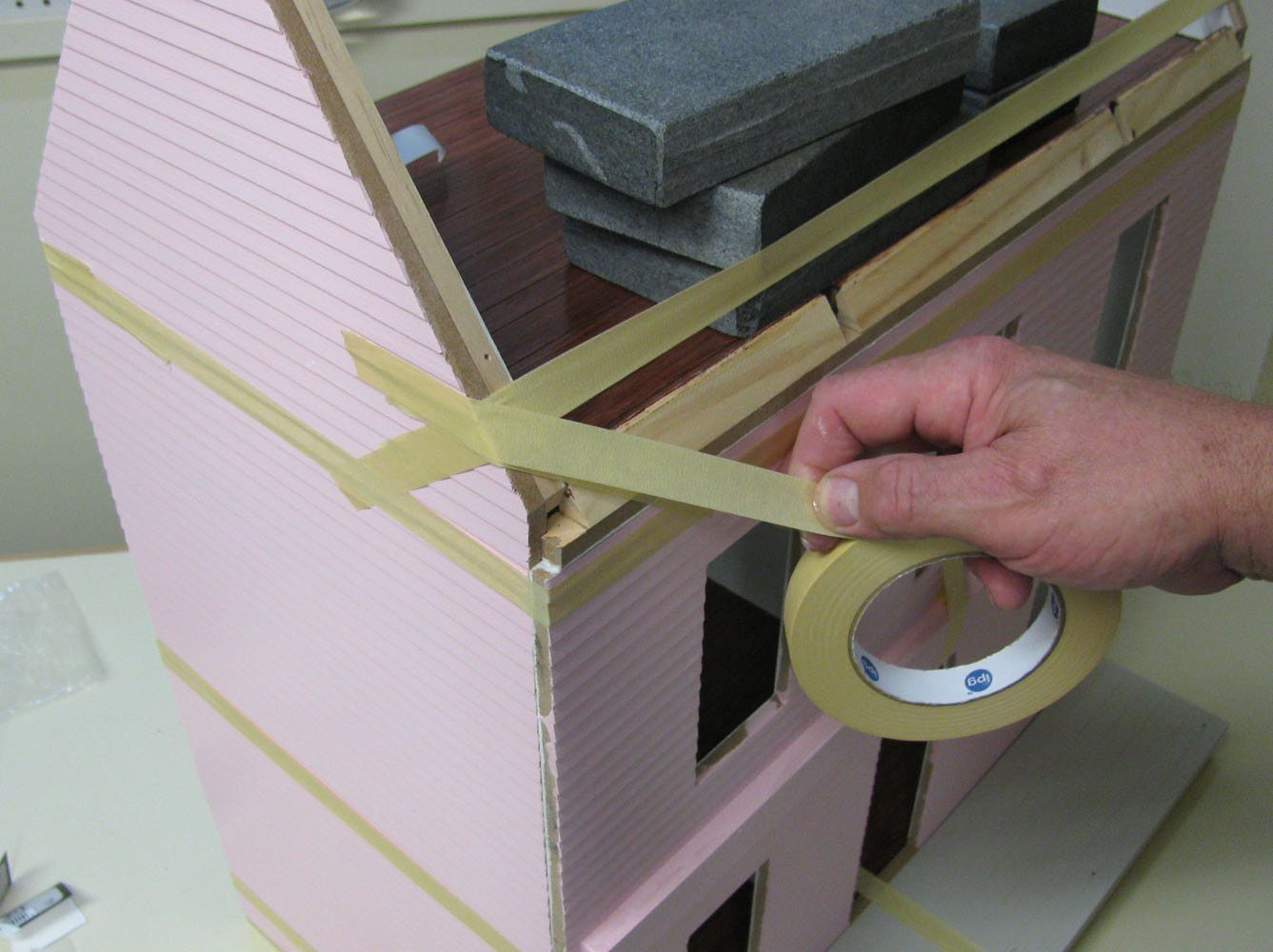

Tape to keep the Front lined up WiringAssets/044_lg.jpg

DHTMLGoodies.com

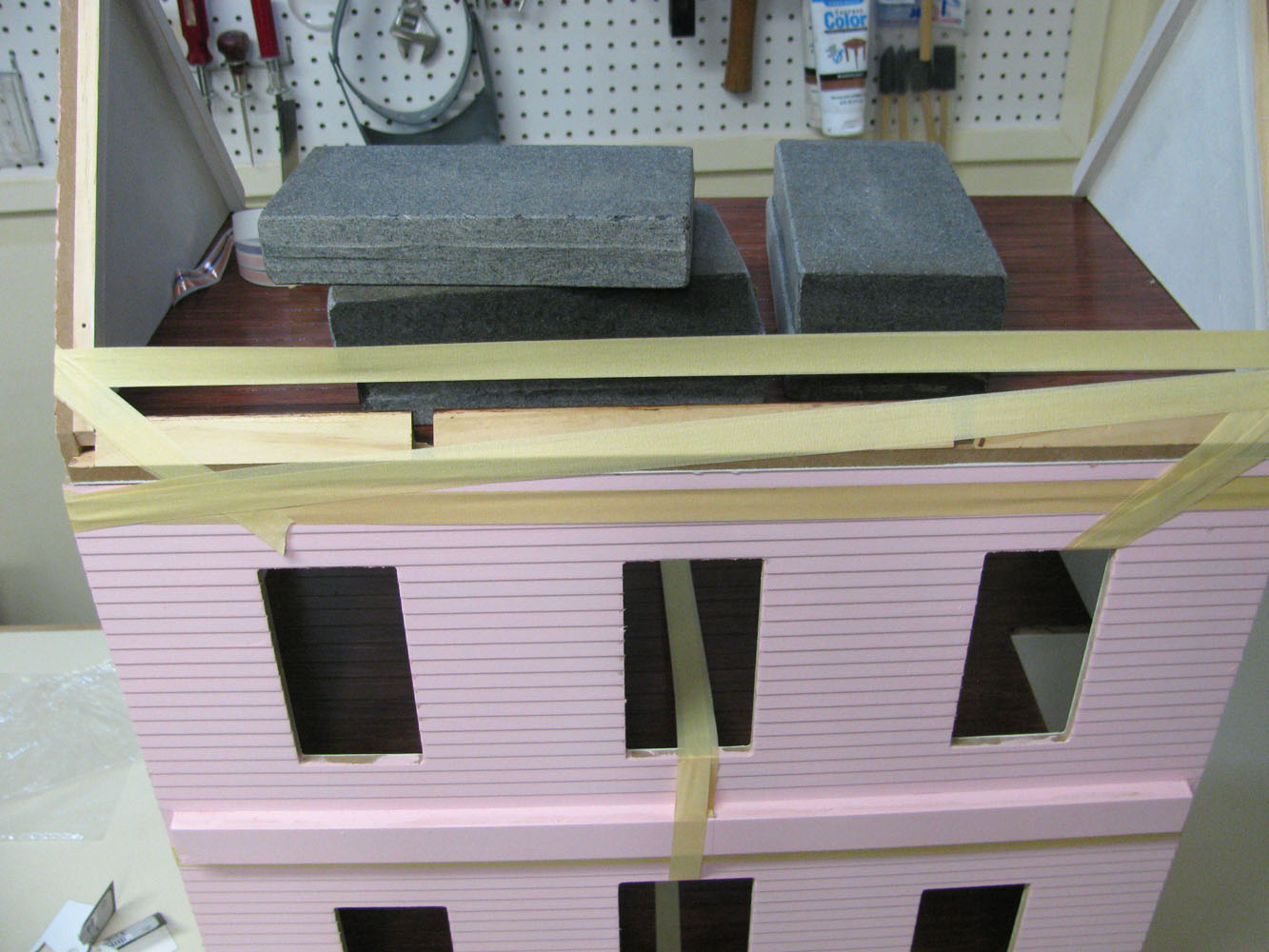

Don't be stingy with tape WiringAssets/045_lg.jpg
