Slideshow 4: 2nd floor BaseRun, Ceiling Runs, Sconce Runs Wiring assets/100_lg.jpg

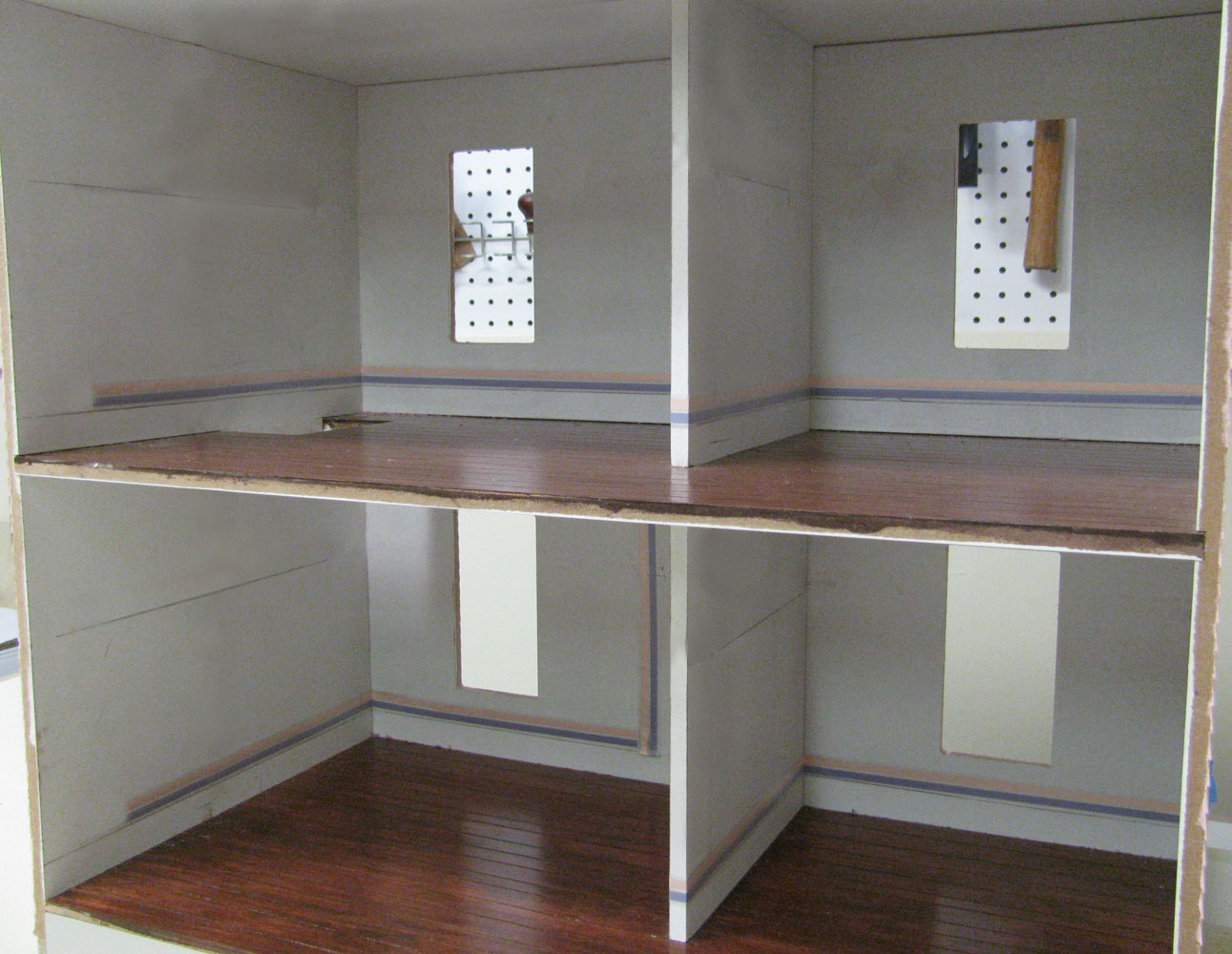

Lay the 2nd floor Baserun starting 2½" from the back WiringAssets/140A_lg.jpg

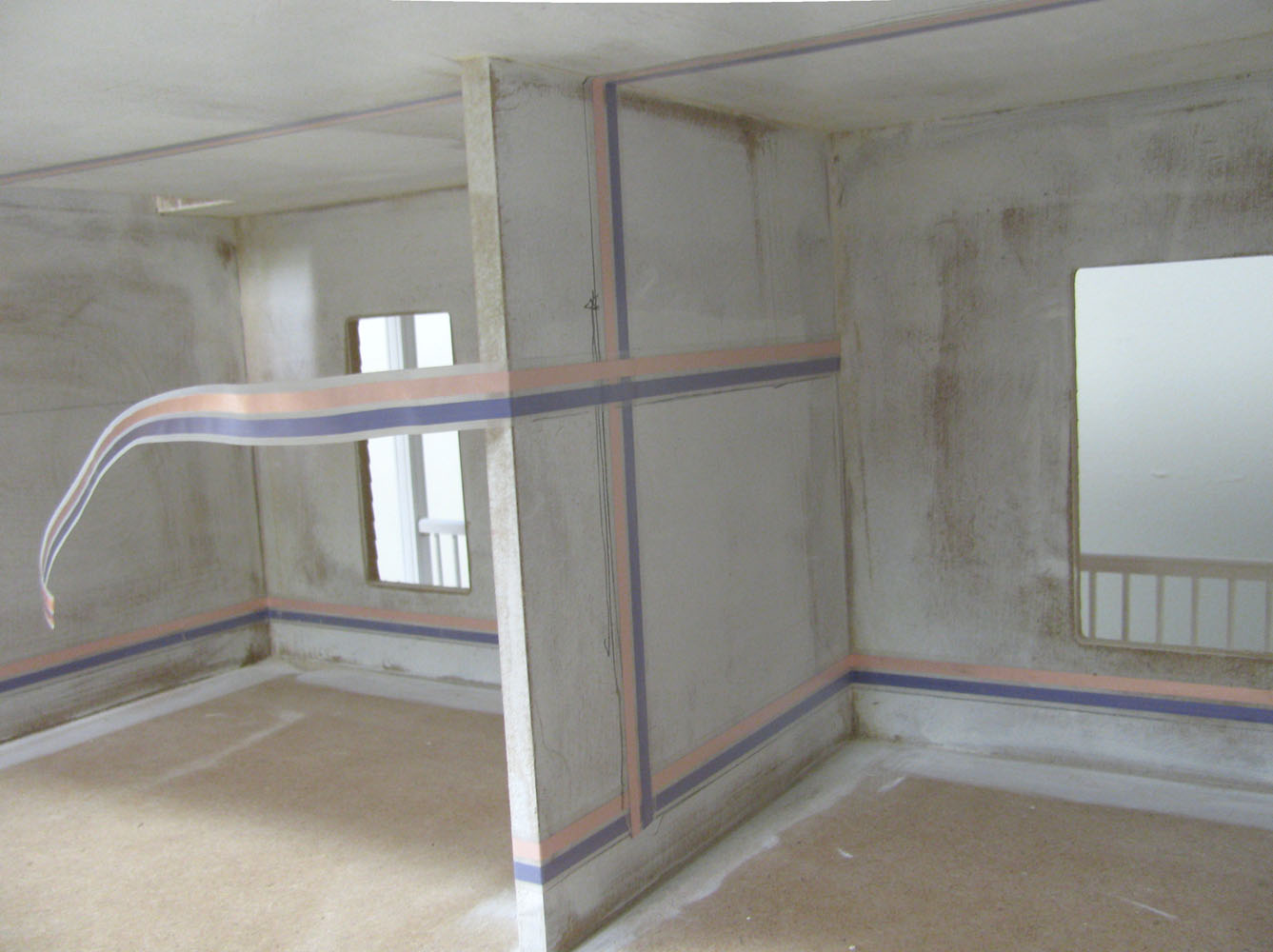

Line up the Ceiling Run with the Main Loop WiringAssets/139_lg.jpg

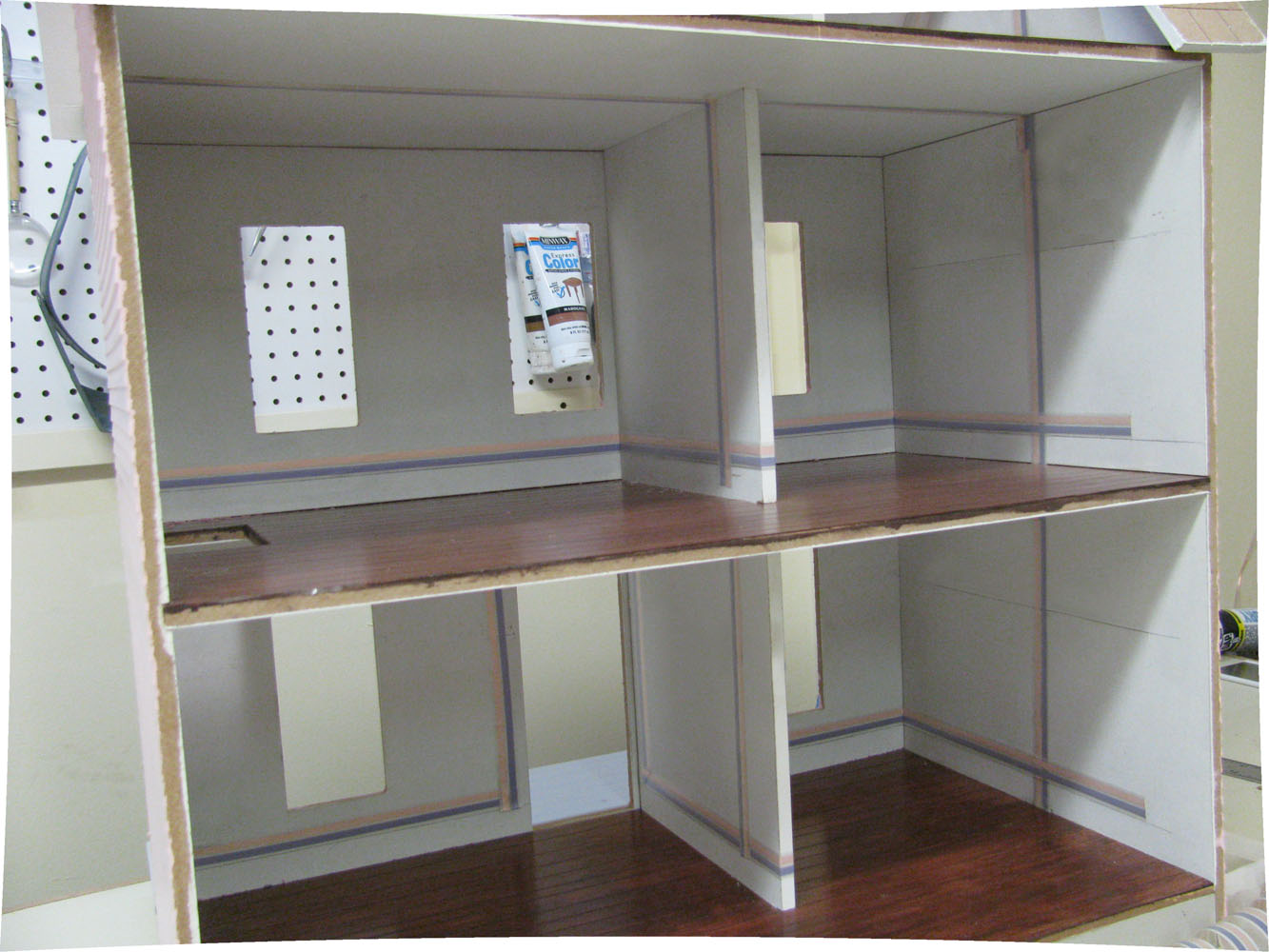

... up-and-over - to the baserun on the other side of the room WiringAssets/140B_lg.jpg

Copper-over-copper!!! WiringAssets/140_lg.jpg

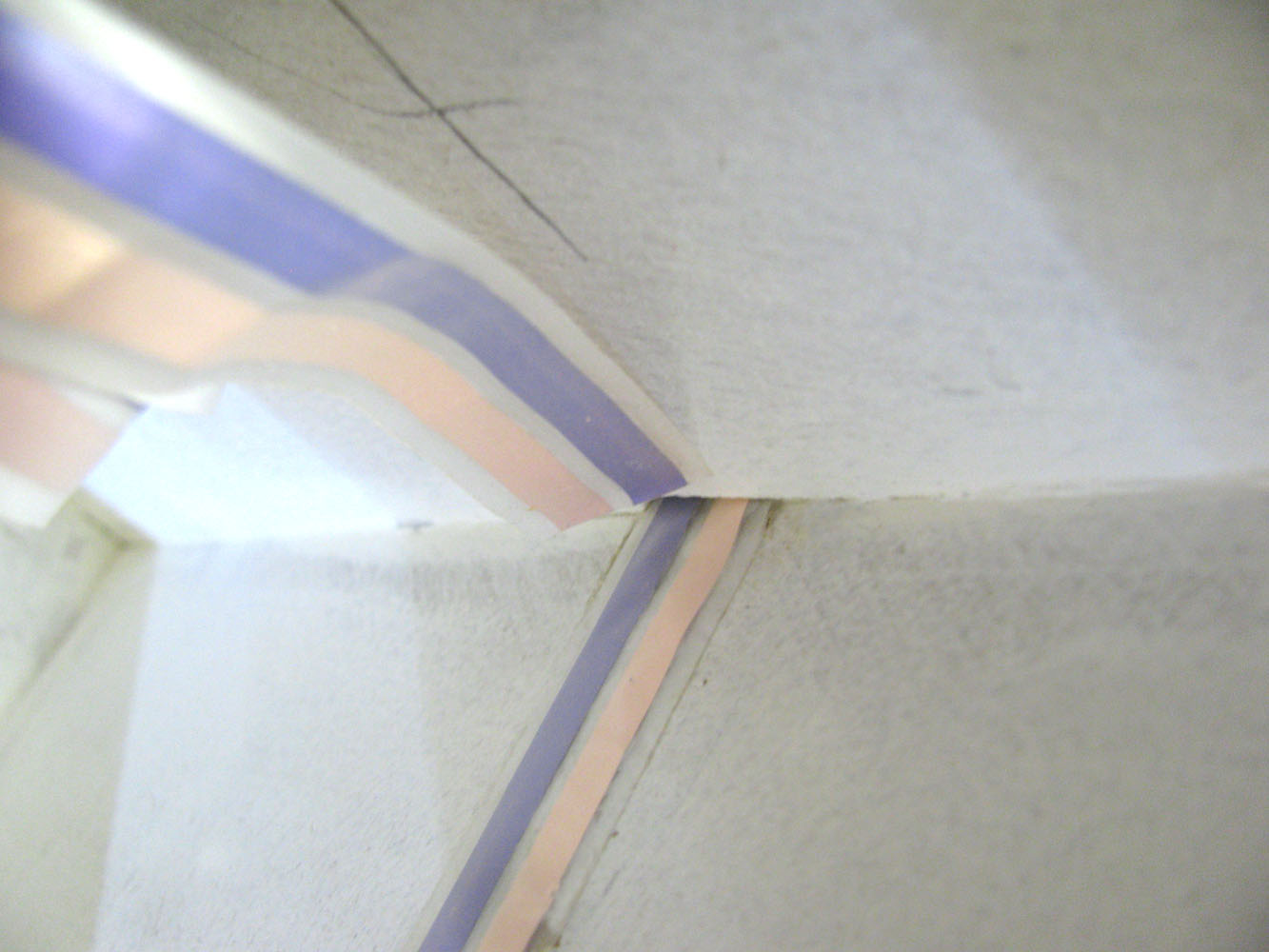

This wire would give blue-over-copper... start it on the other side WiringAssets/140C_lg.jpg

1st floor center SconceRun goes to the front for coach lamps WiringAssets/140D_lg.jpg

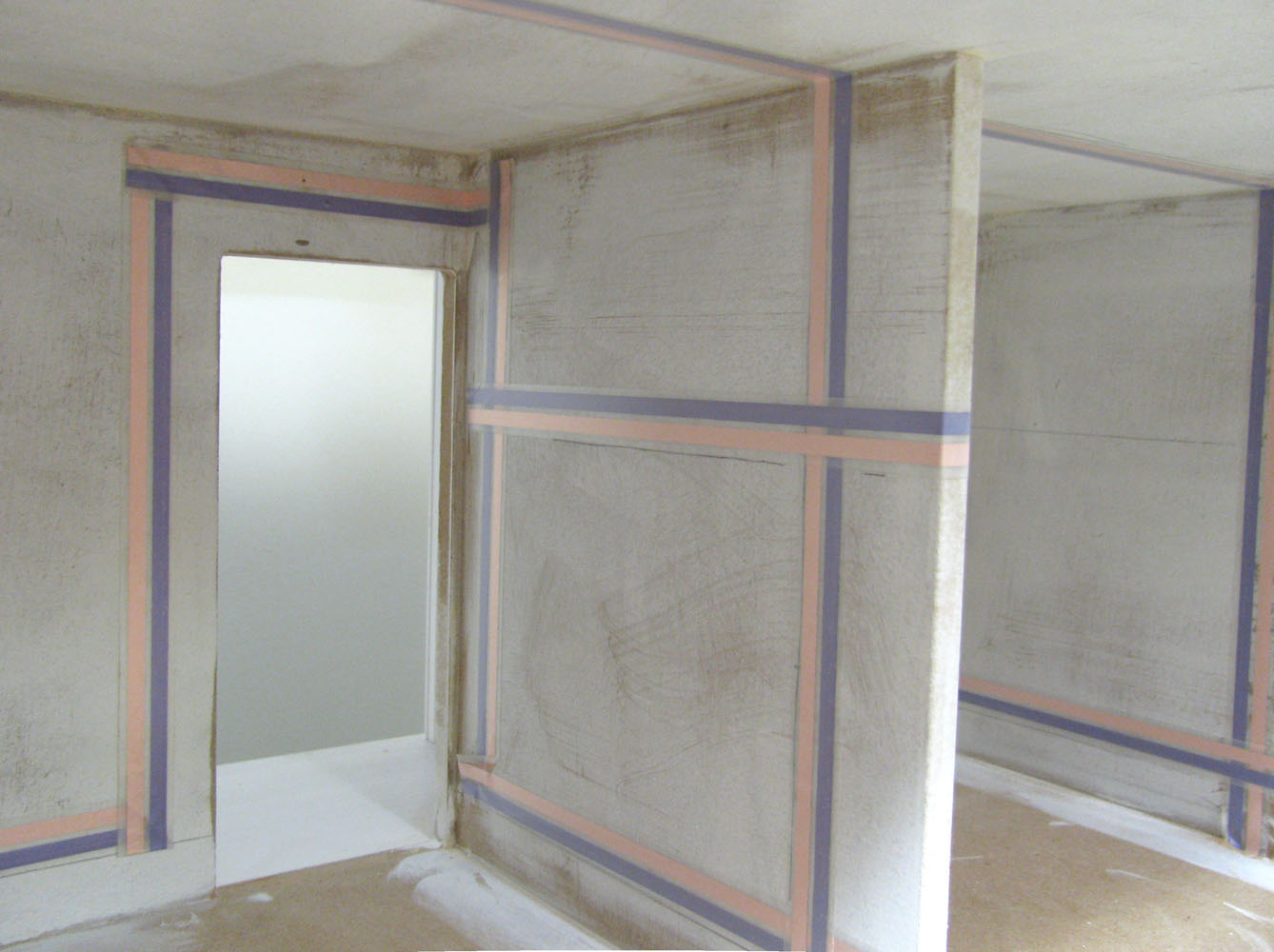

1st floor center SconceRun goes to the front for coach lamps WiringAssets/140E_lg.jpg

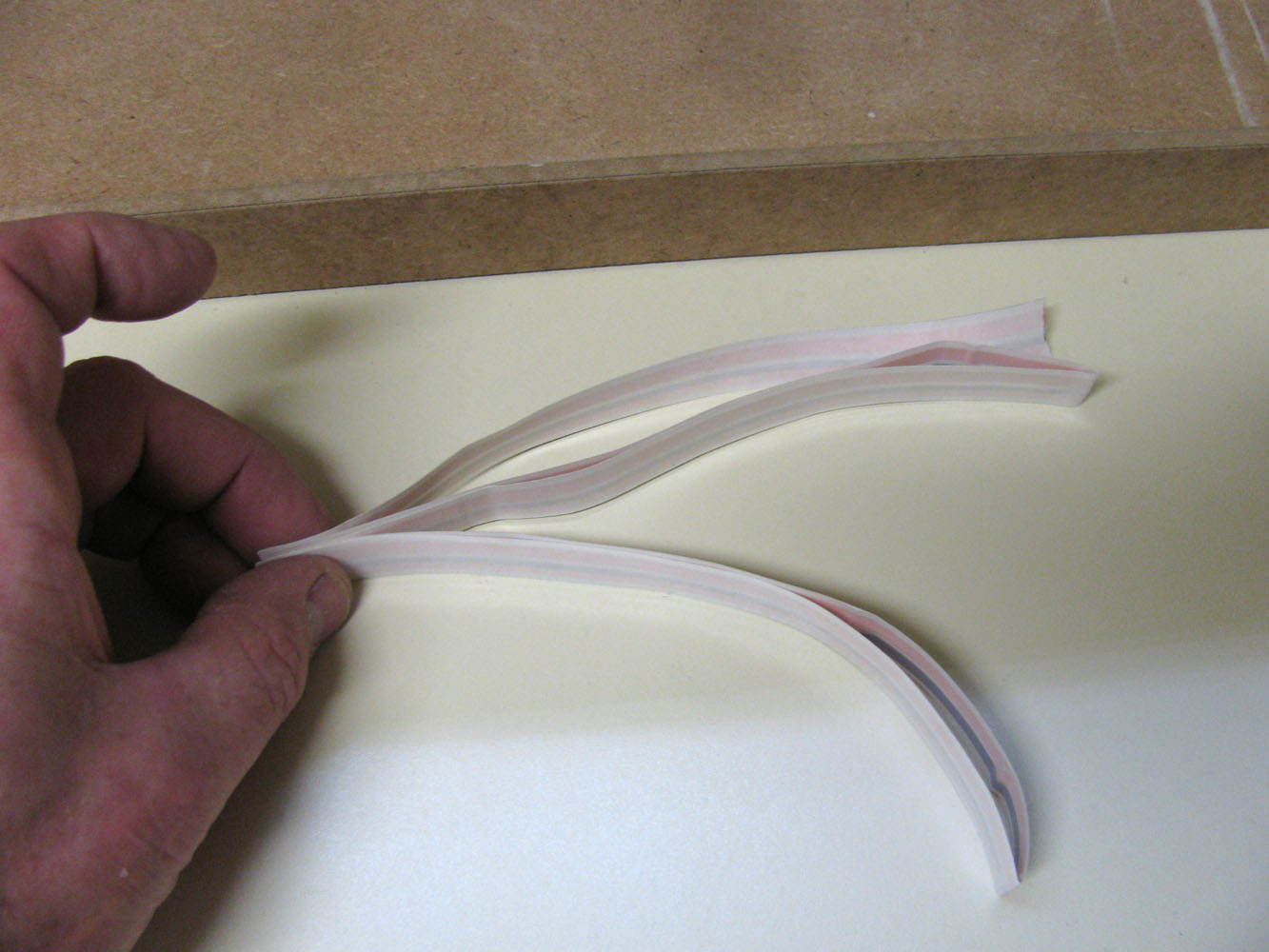

The rest of the tapewire: I will cut 5 equal pieces WiringAssets/140F_lg.jpg

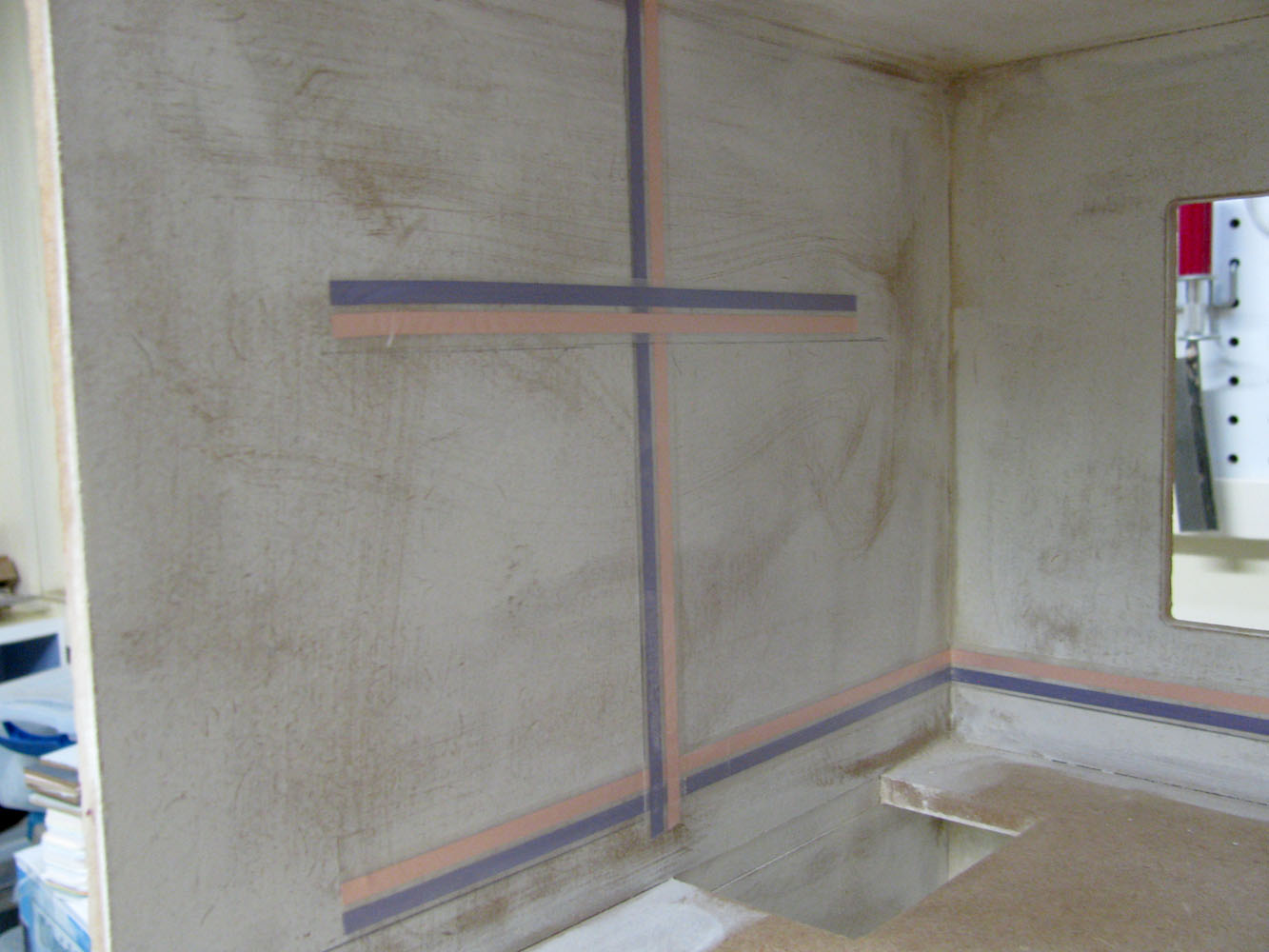

4 sections will give Sconceruns on the ends WiringAssets/140G_lg.jpg

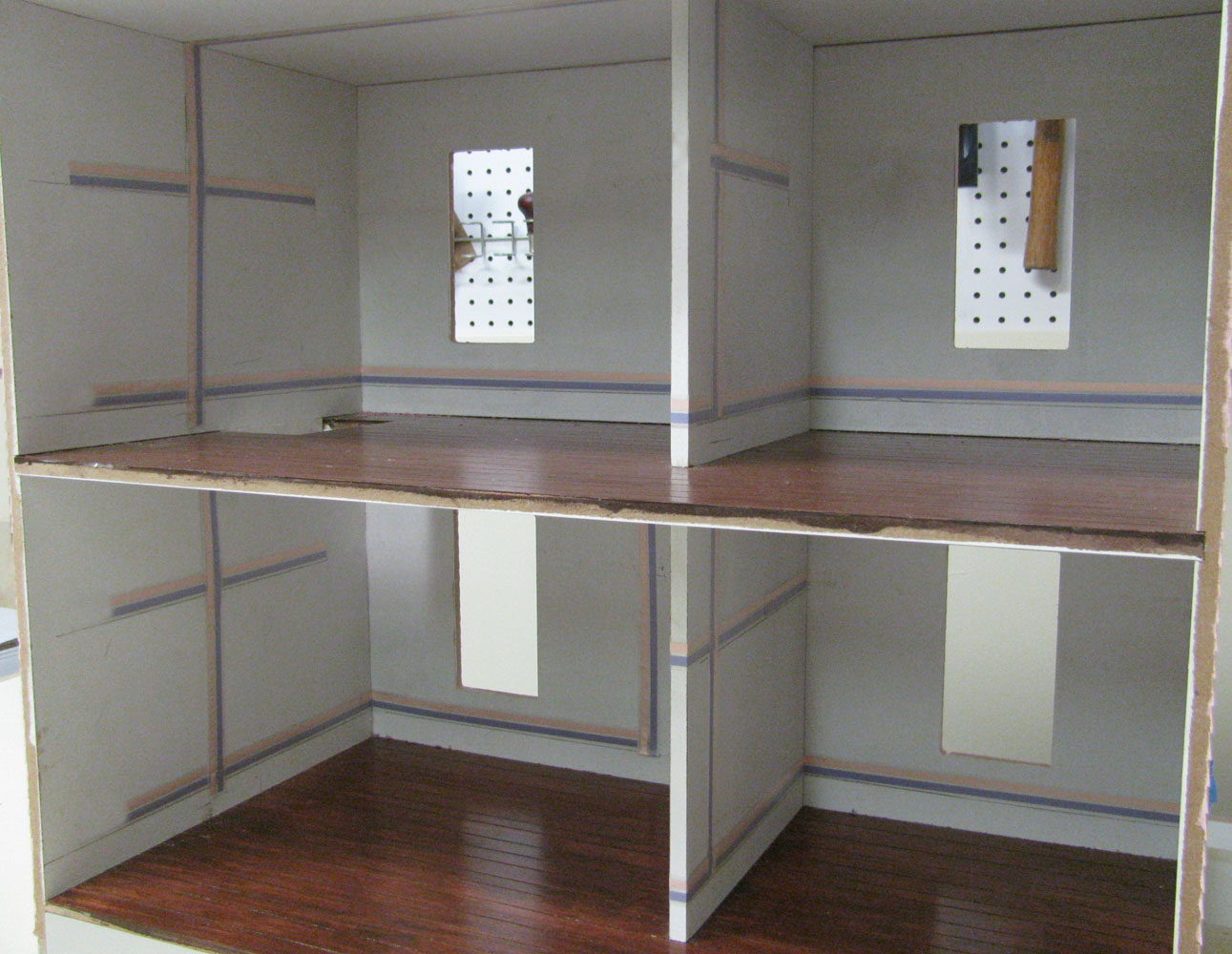

One section cut in half for the 2nd floor center Sconceruns WiringAssets/142_lg.jpg

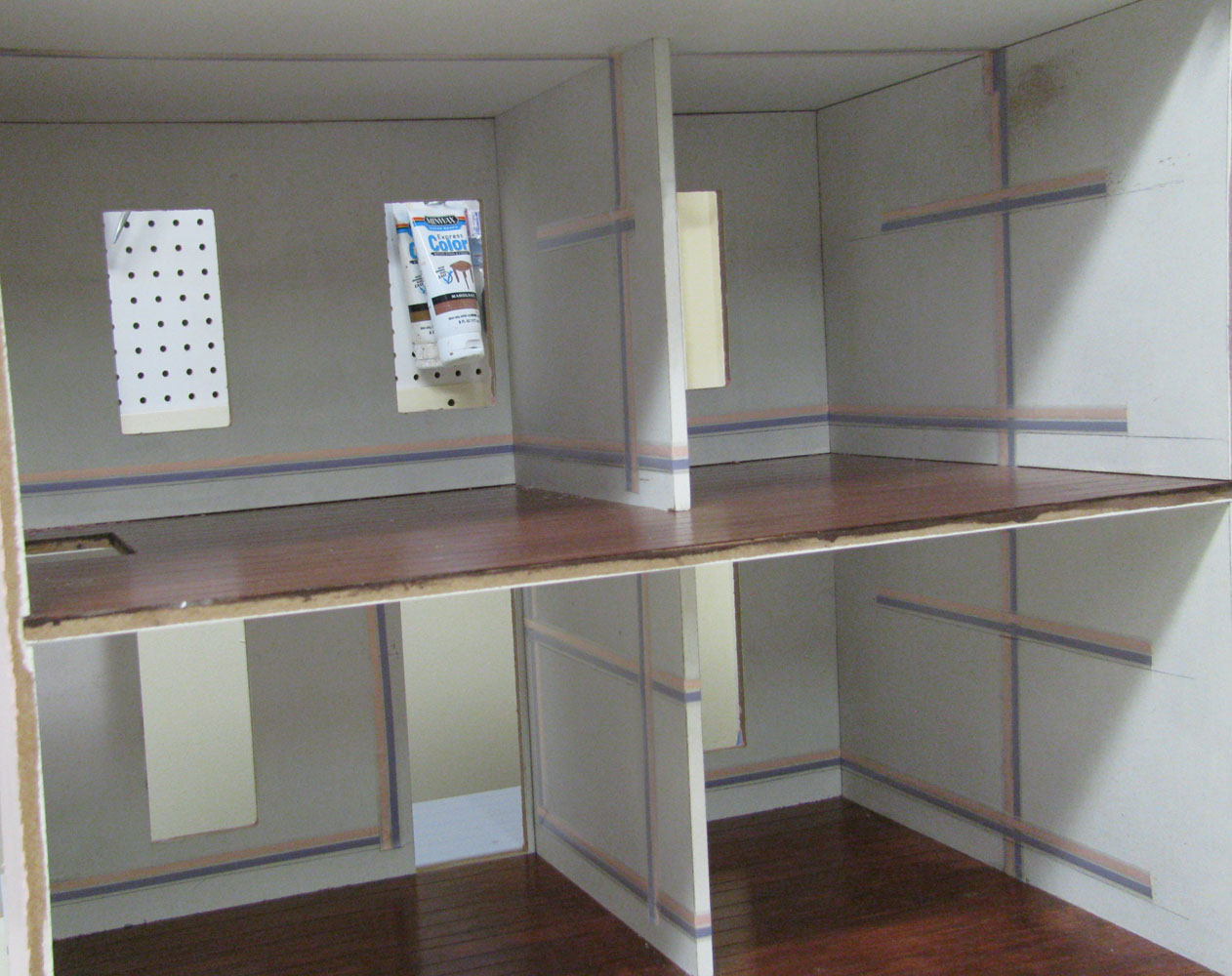

All this can be done with the Best 1 wiring set WiringAssets/143_lg.jpg
