I find small plugs difficult to attach, but the outlets are easy

Install a Small Outlet

DHTMLGoodies.com

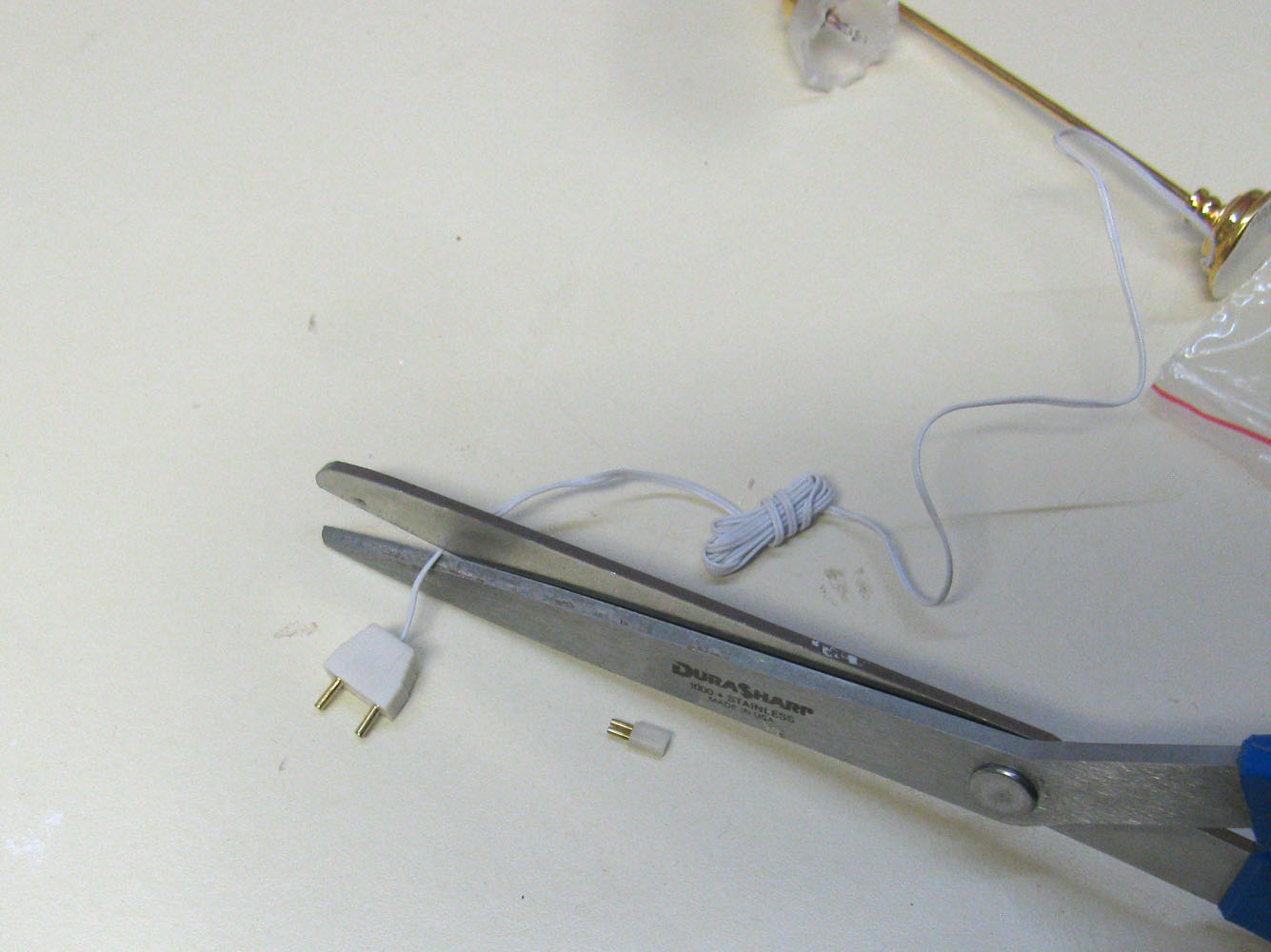

Replace the large plug with a small plug SmallOutlet/SmallOutlet01_lg.jpg

DHTMLGoodies.com

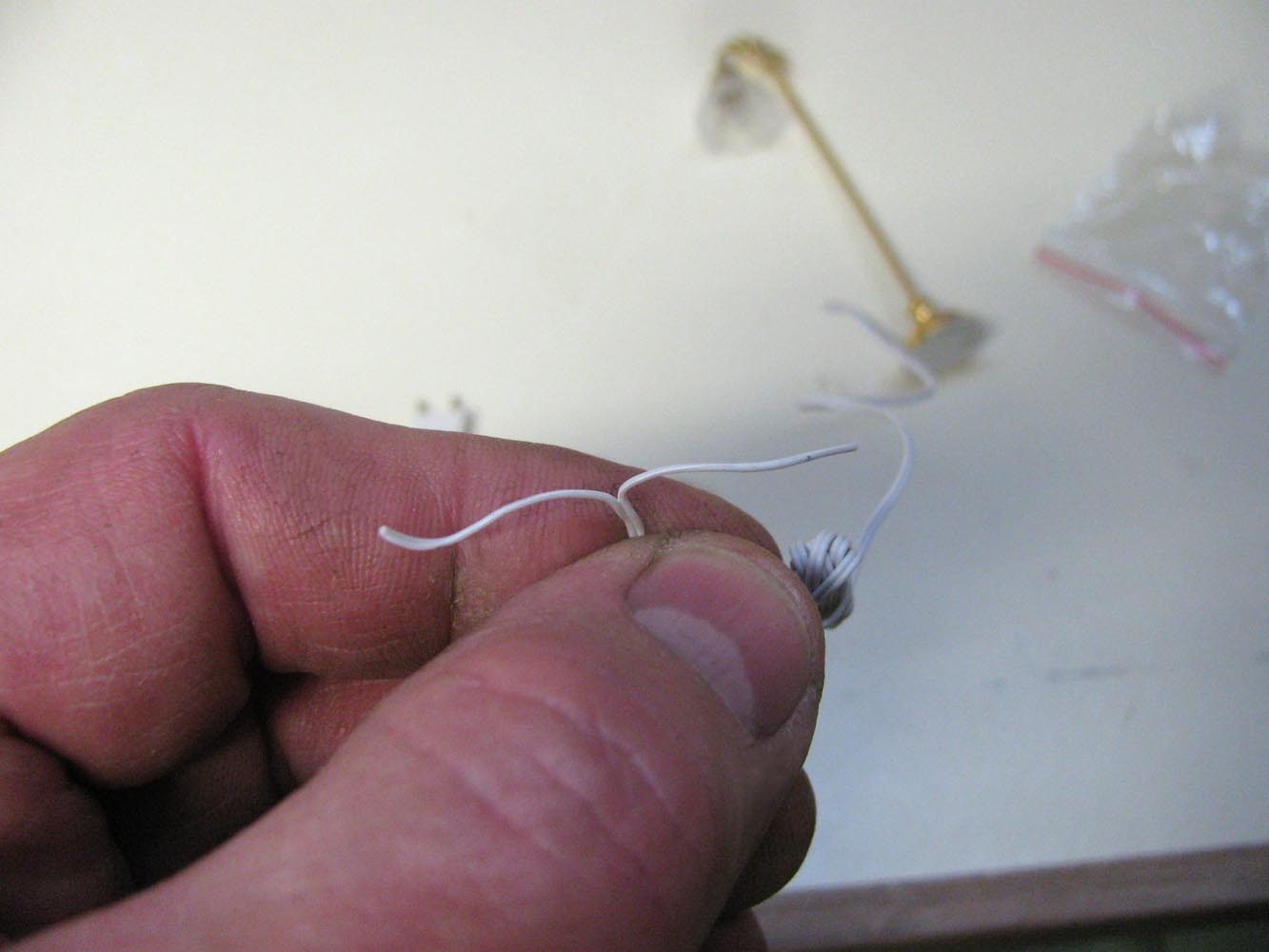

separate the wires 1” SmallOutlet/SmallOutlet02_lg.jpg

DHTMLGoodies.com

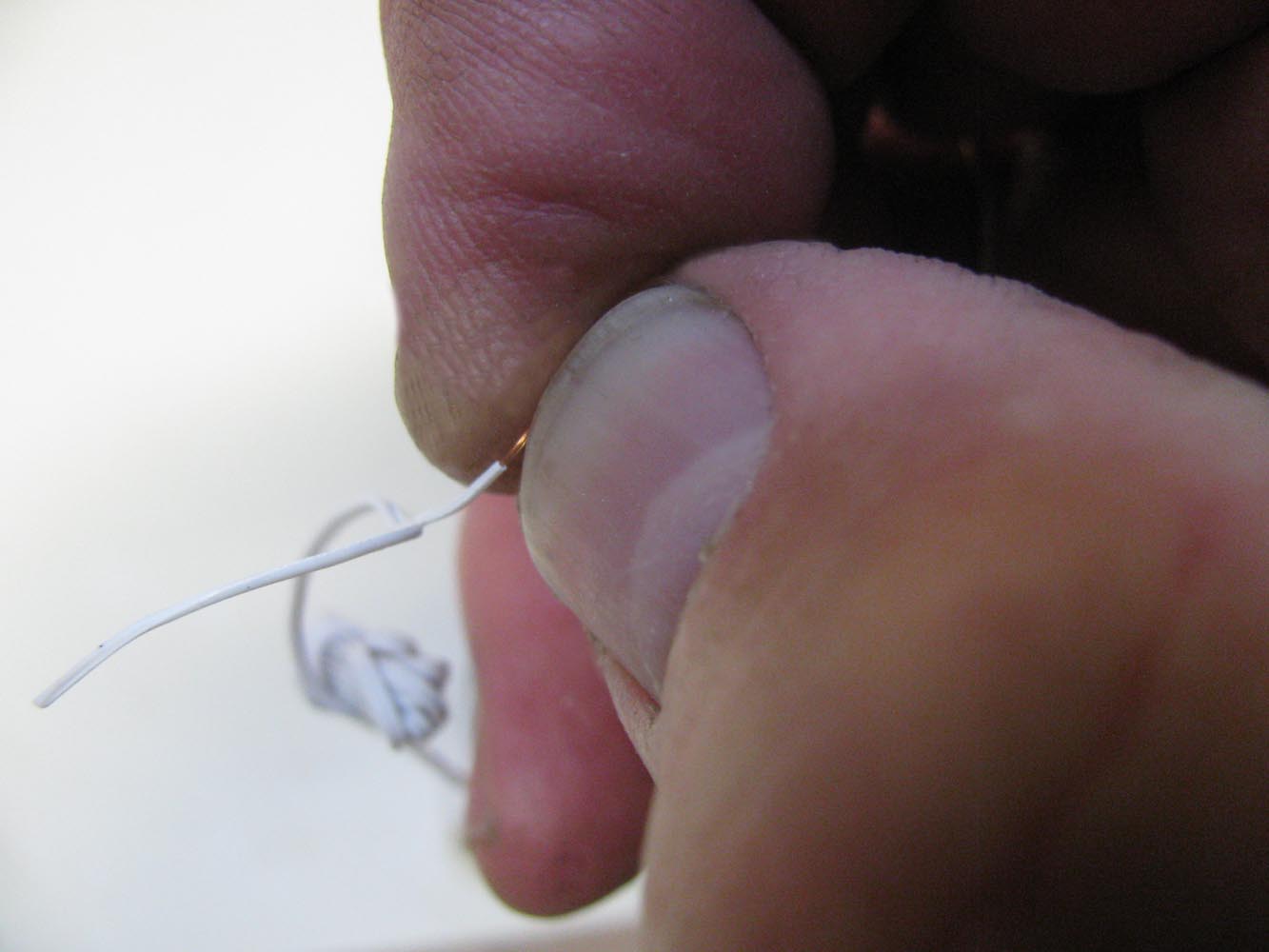

Pinch the insulation and pull it part-way off SmallOutlet/SmallOutlet03_lg.jpg

DHTMLGoodies.com

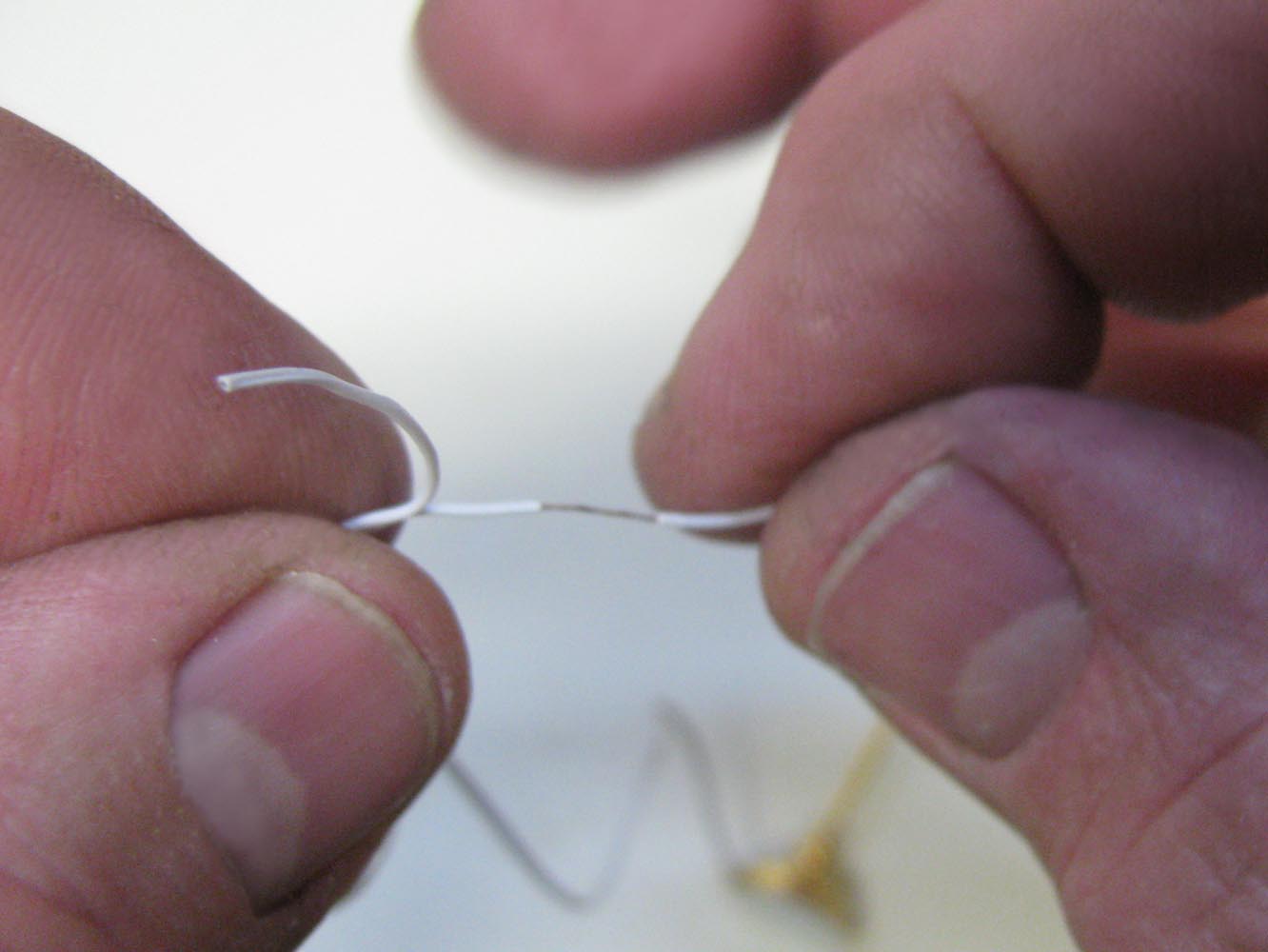

Spin the insulation as you pull it off to twist the wire SmallOutlet/SmallOutlet04_lg.jpg

DHTMLGoodies.com

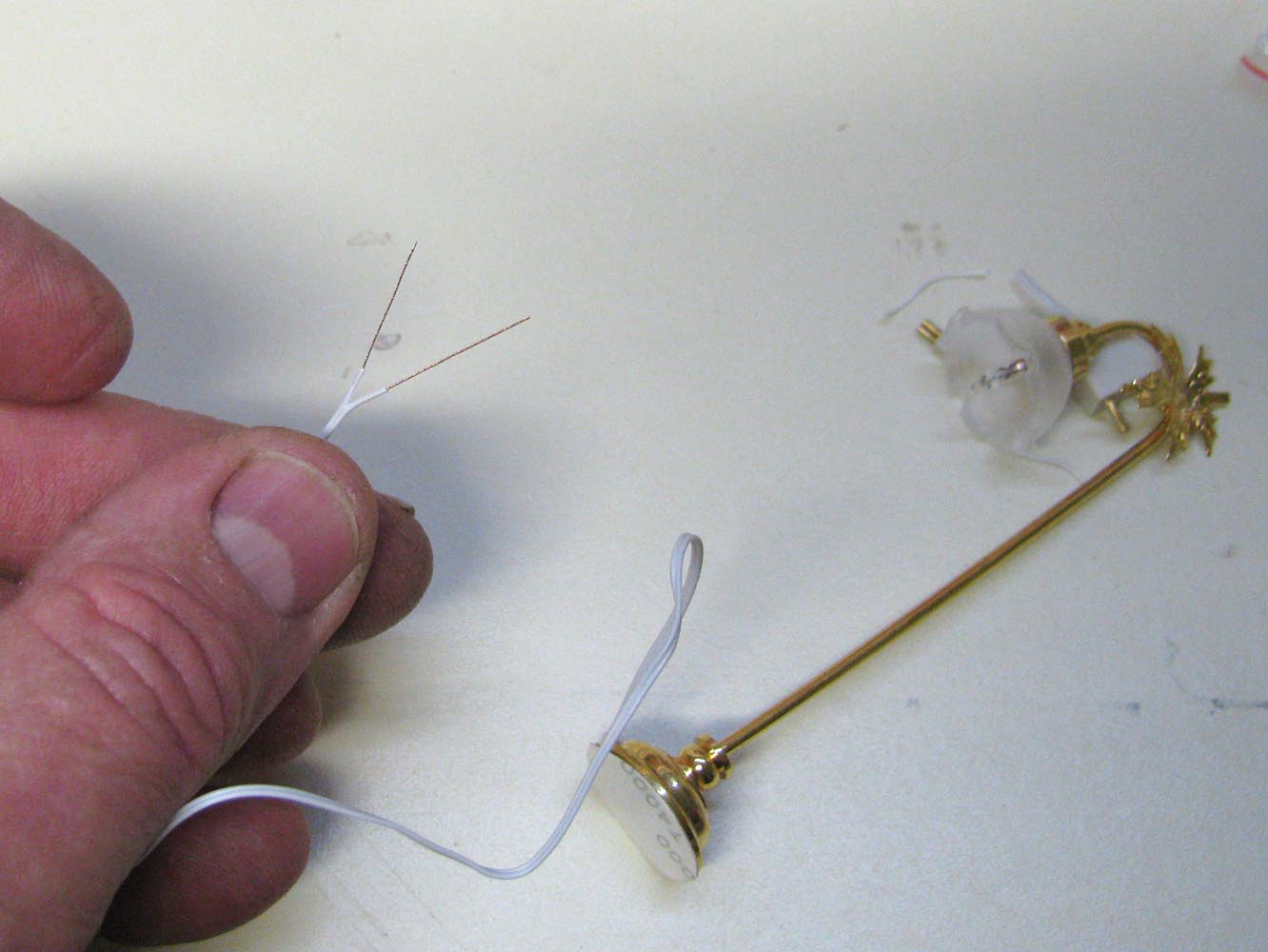

Make sure the insulation ends exactly the same length SmallOutlet/SmallOutlet05_lg.jpg

DHTMLGoodies.com

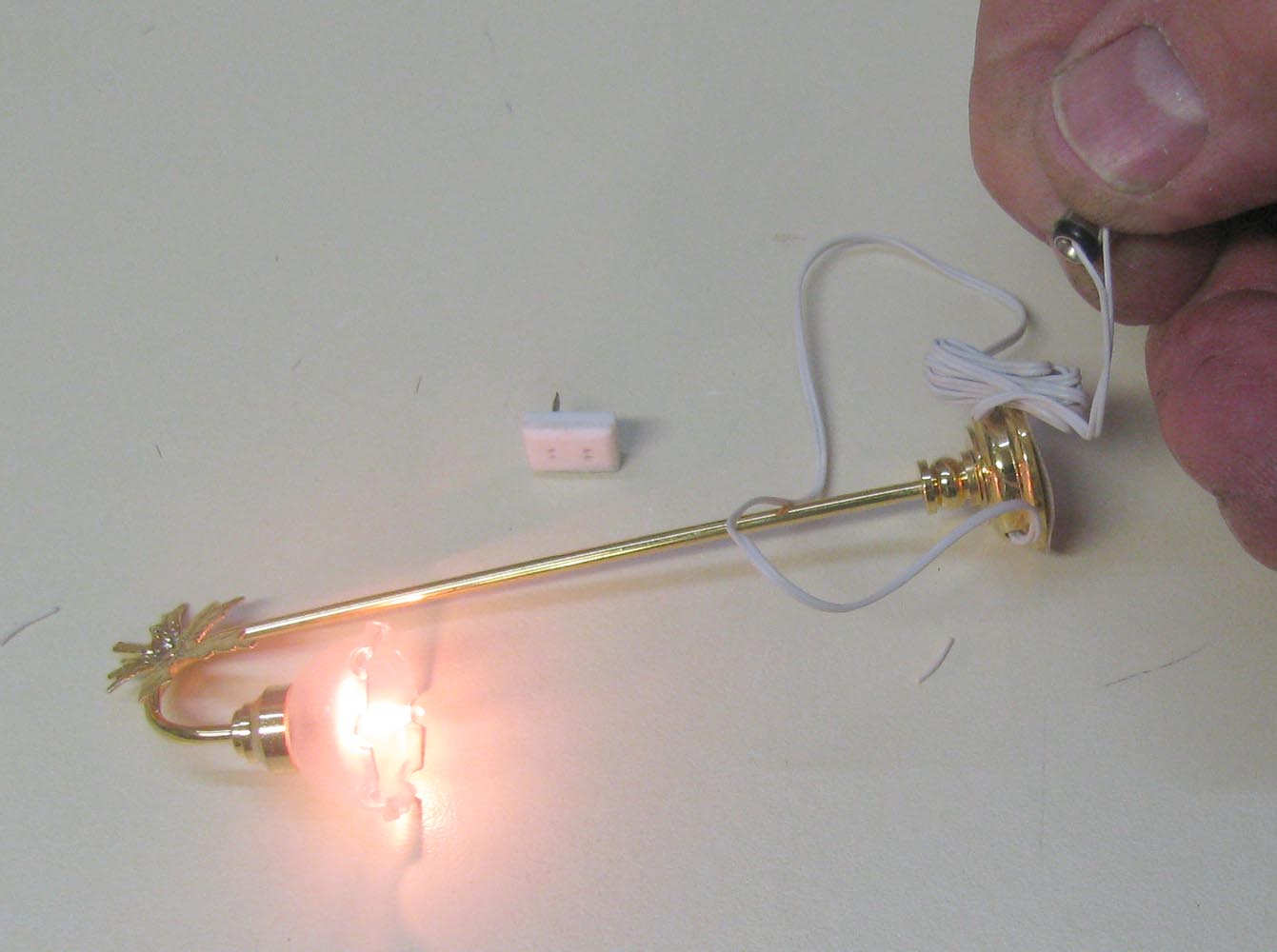

Test the fixture - Don't skip this test! SmallOutlet/SmallOutlet06_lg.jpg

DHTMLGoodies.com

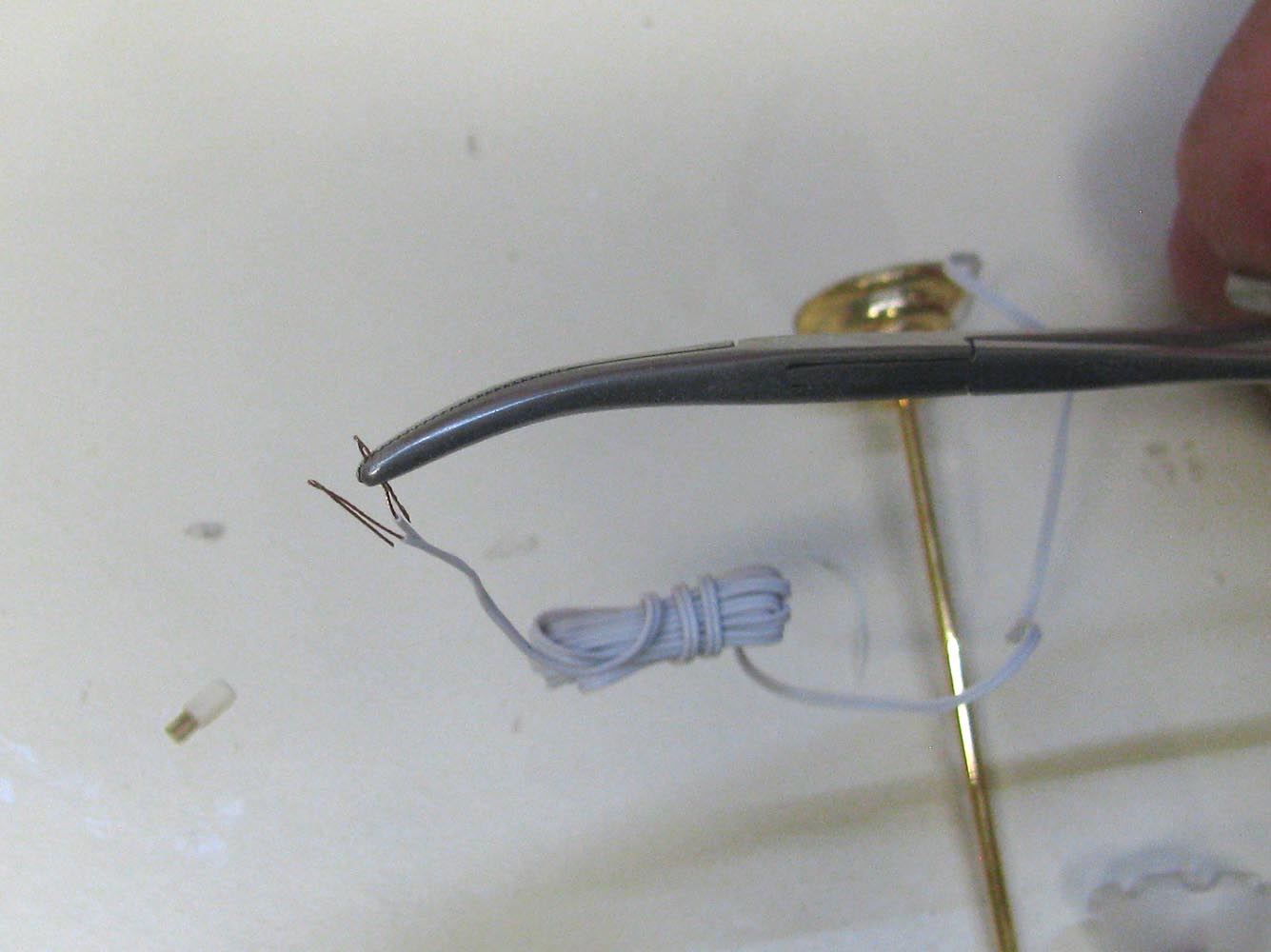

Fold the wire: pinch to a sharp point SmallOutlet/SmallOutlet07_lg.jpg

DHTMLGoodies.com

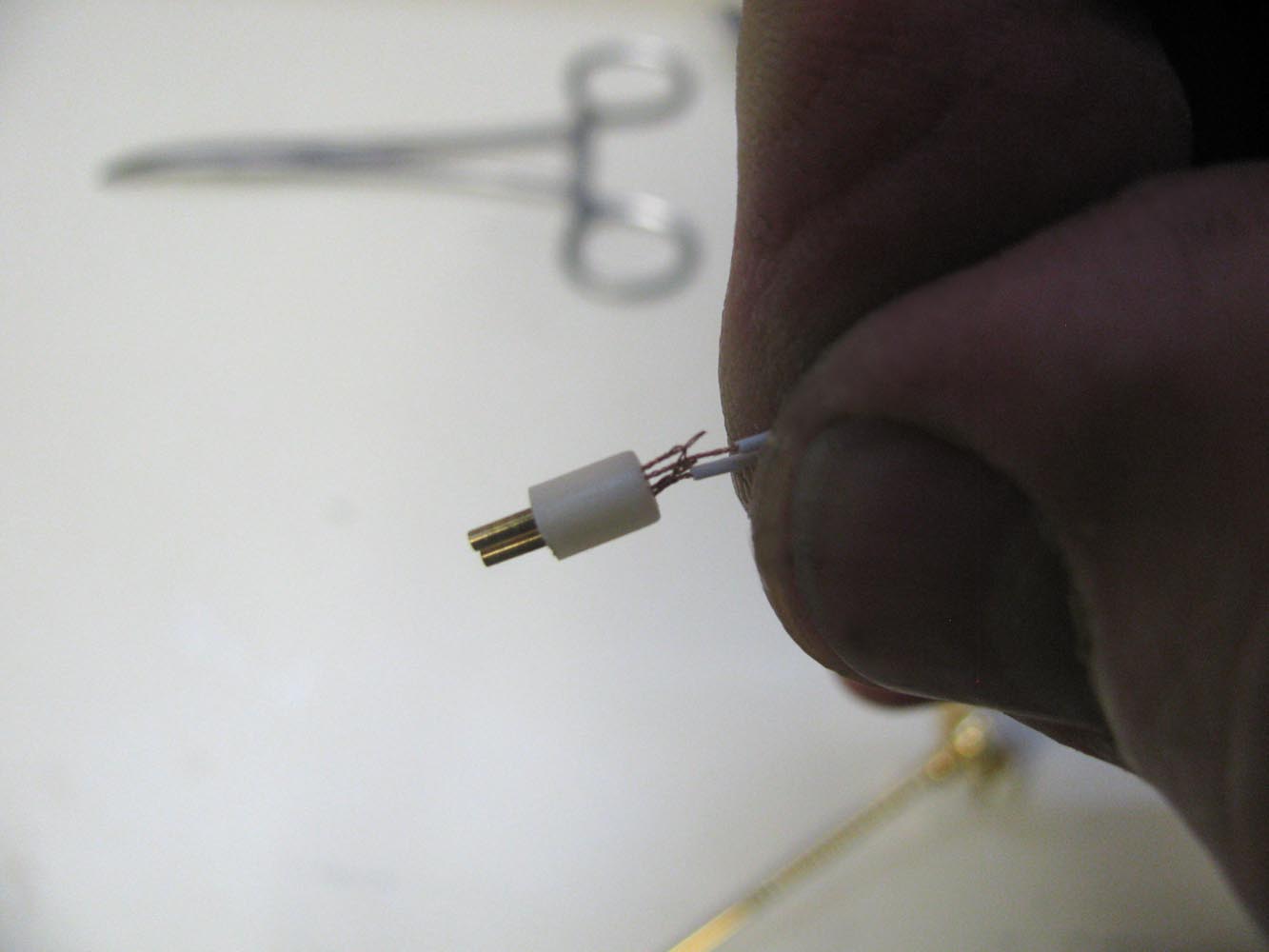

Wiggle the wires into the plug SmallOutlet/SmallOutlet08_lg.jpg

DHTMLGoodies.com

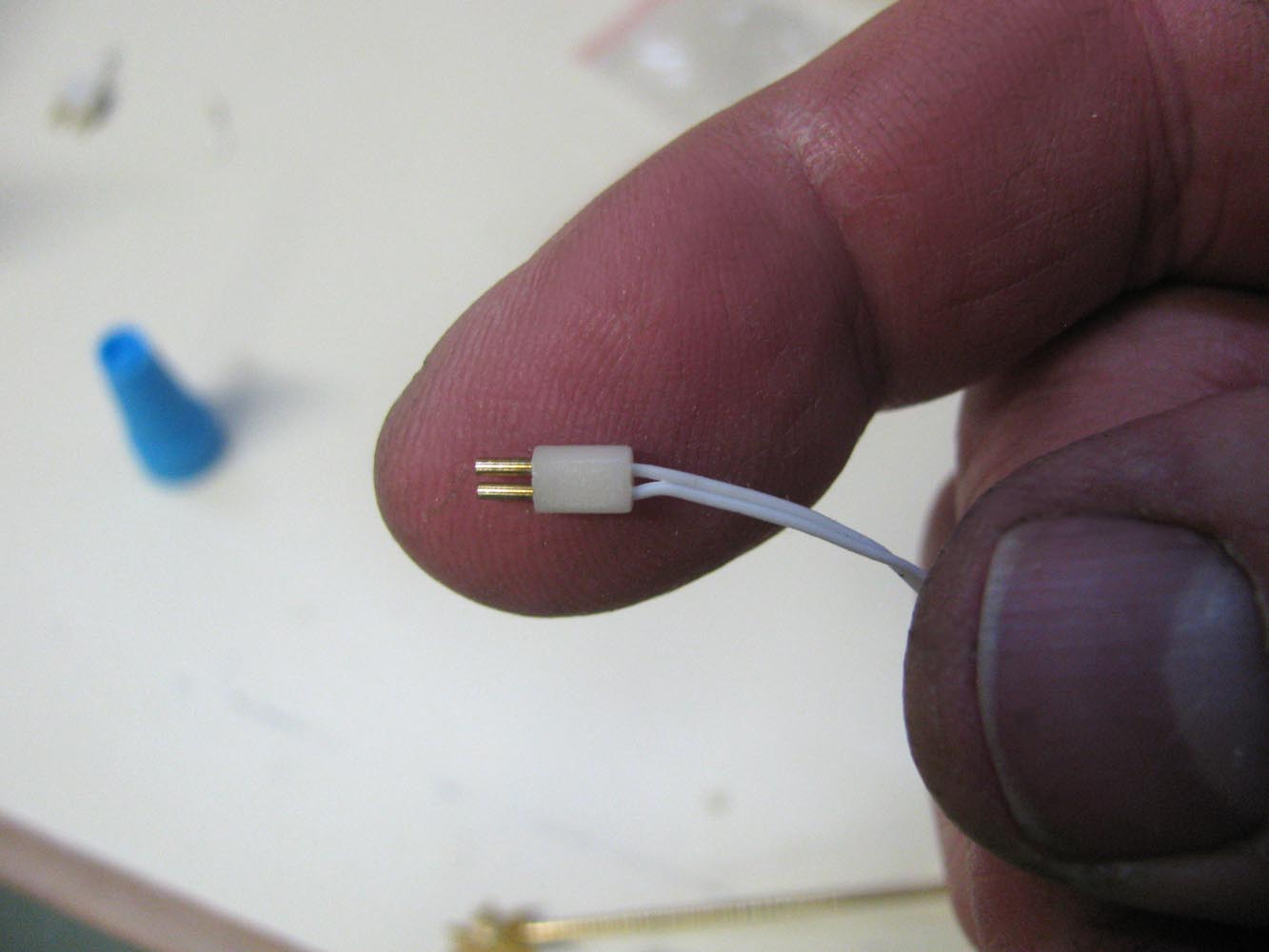

... all the way in until the insulation goes in too SmallOutlet/SmallOutlet09_lg.jpg

DHTMLGoodies.com

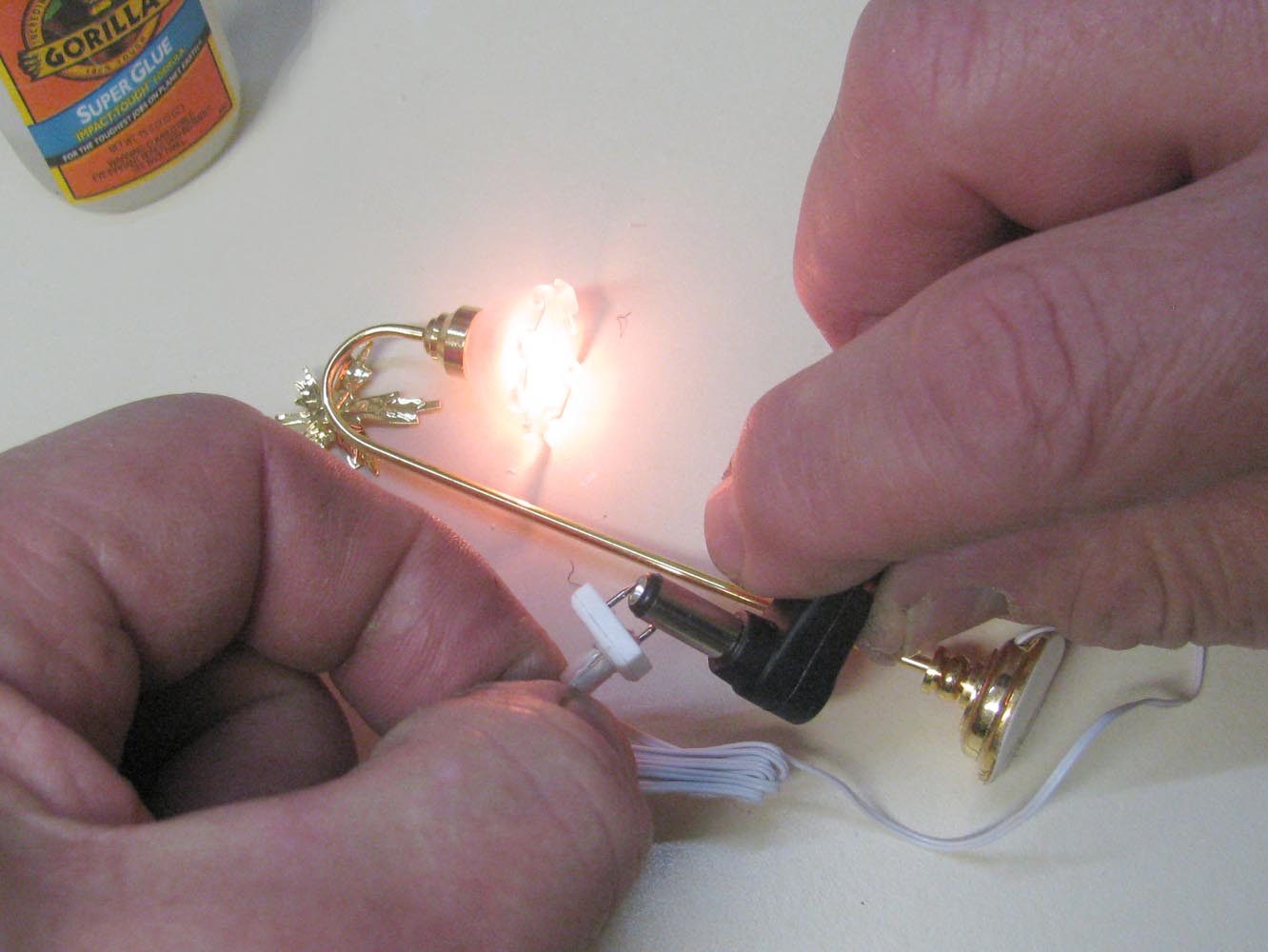

Plug it in and test SmallOutlet/SmallOutlet10_lg.jpg

DHTMLGoodies.com

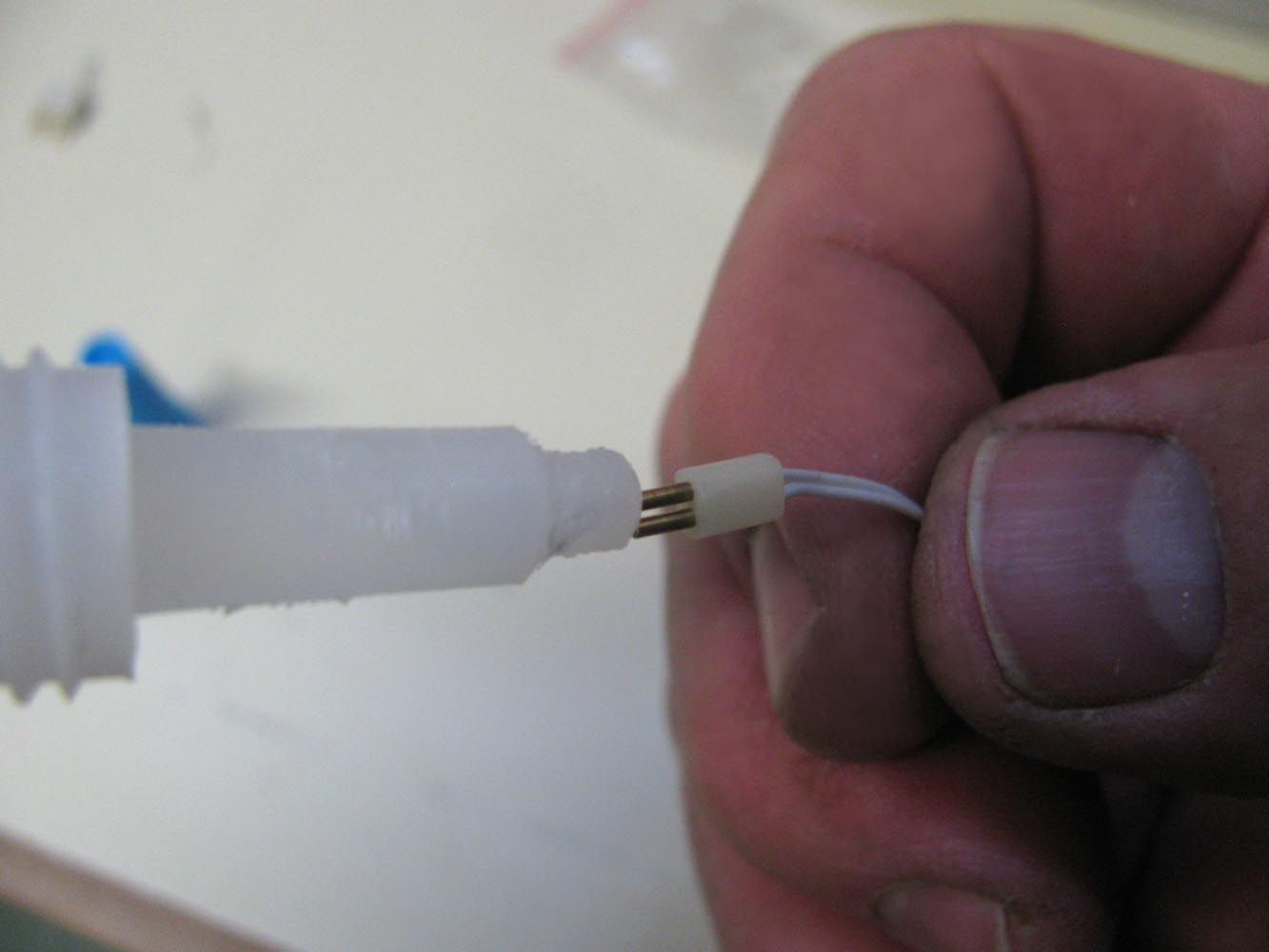

Super Glue the wire into the plug SmallOutlet/SmallOutlet11_lg.jpg

DHTMLGoodies.com

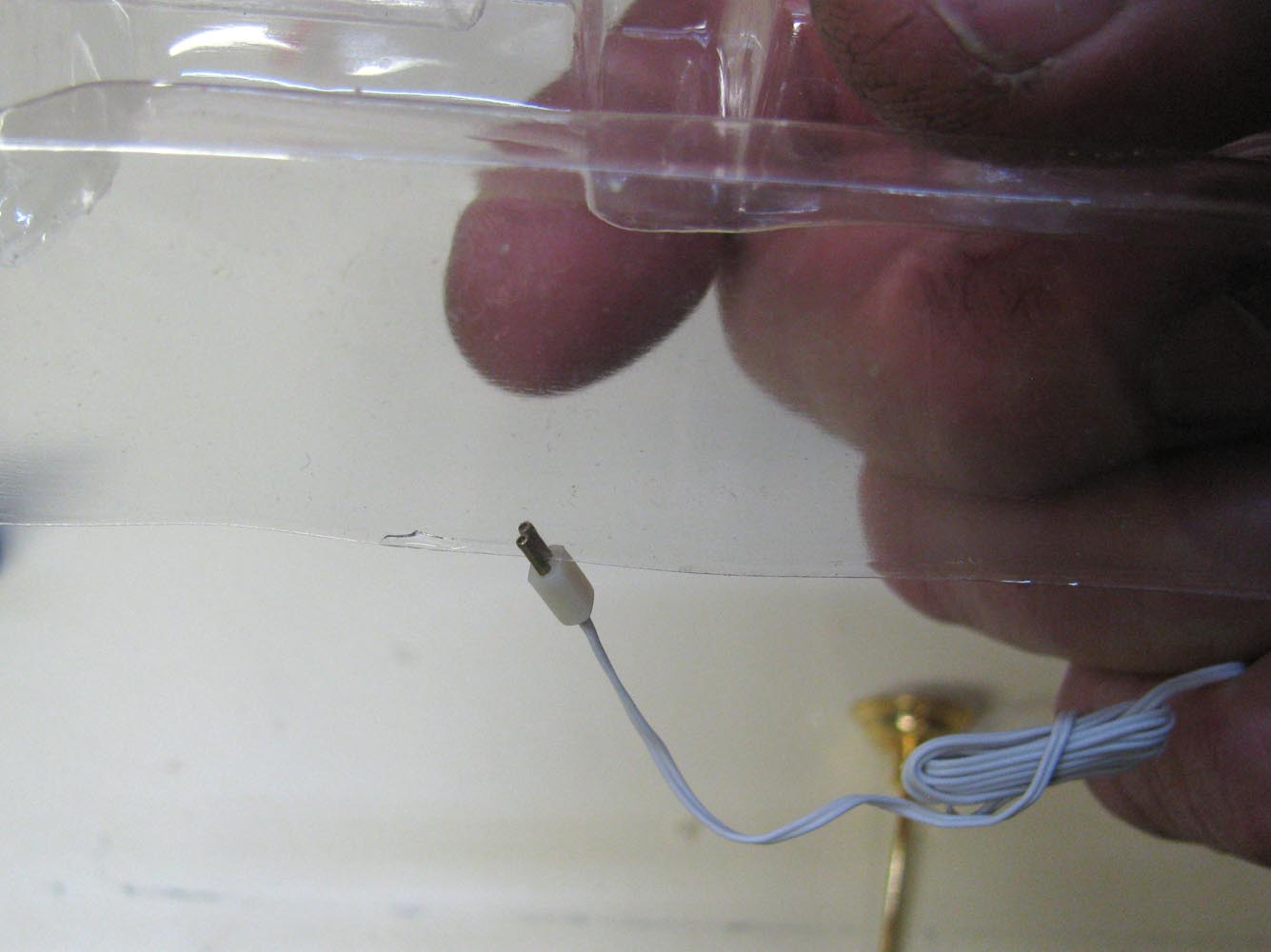

Clean up excess superglue - let the glue dry SmallOutlet/SmallOutlet12_lg.jpg

DHTMLGoodies.com

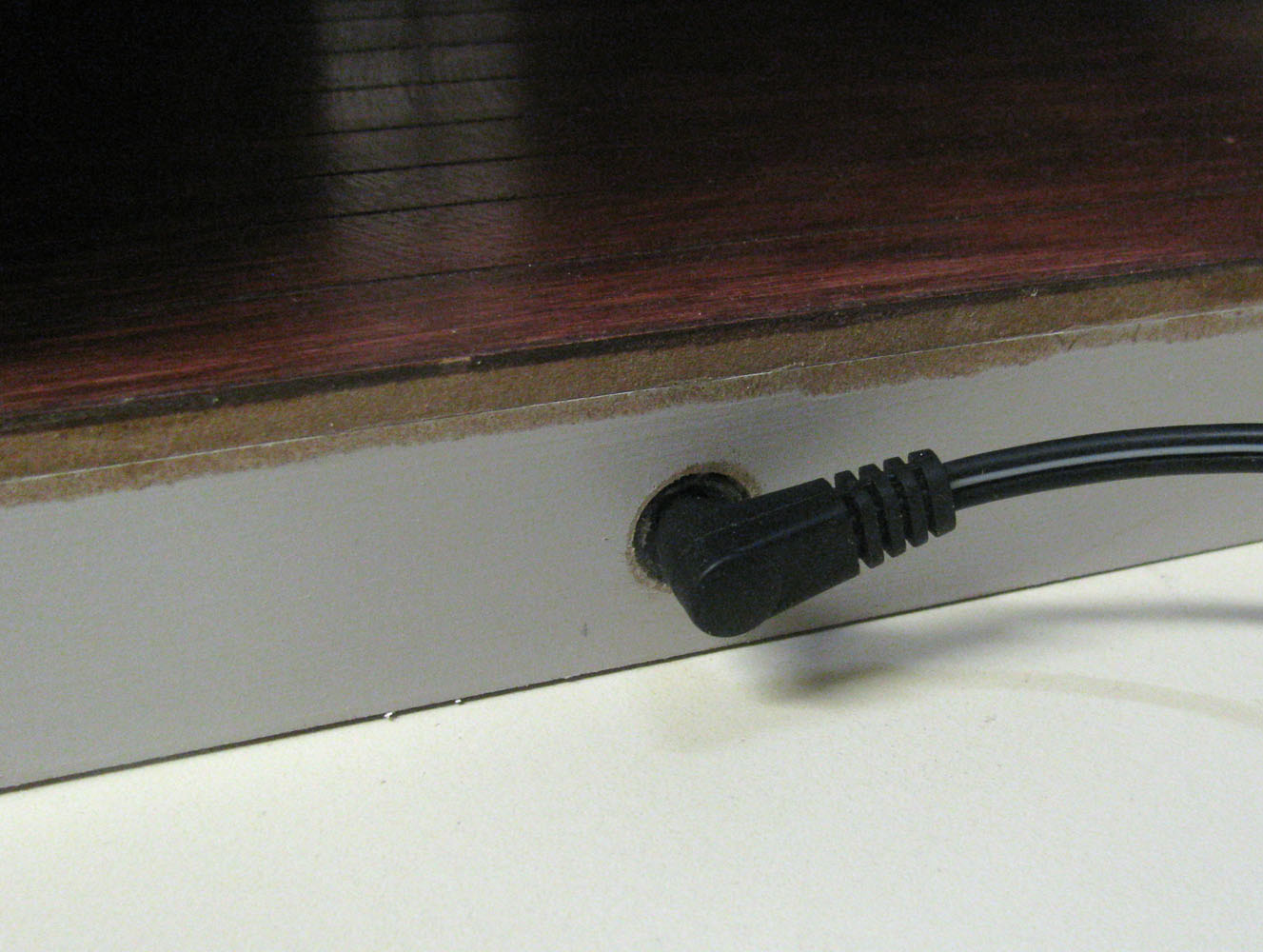

Power up the house wiring SmallOutlet/SmallOutlet13_lg.jpg

DHTMLGoodies.com

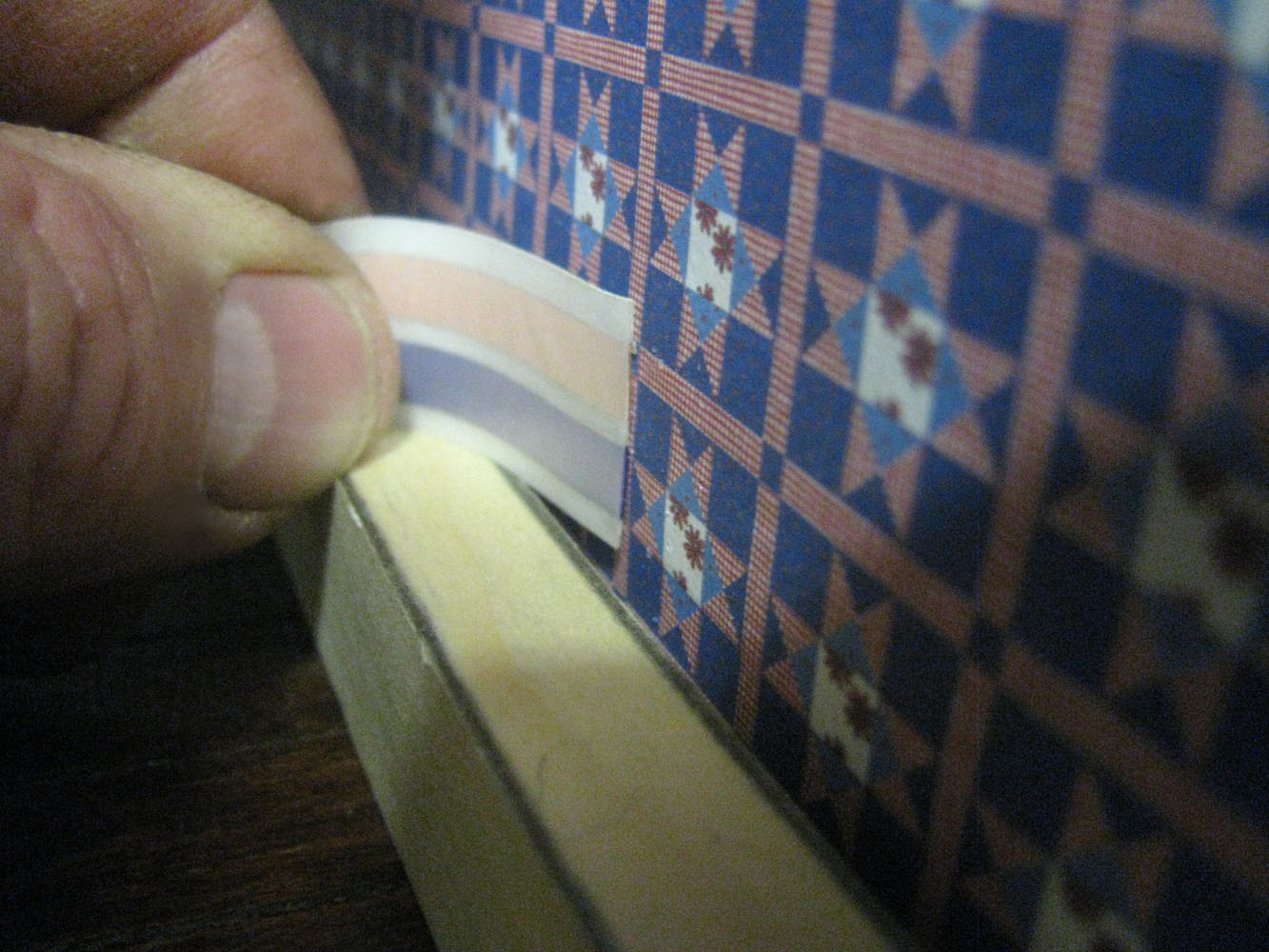

This is where the wiring is under the wallpaper SmallOutlet/SmallOutlet14_lg.jpg

DHTMLGoodies.com

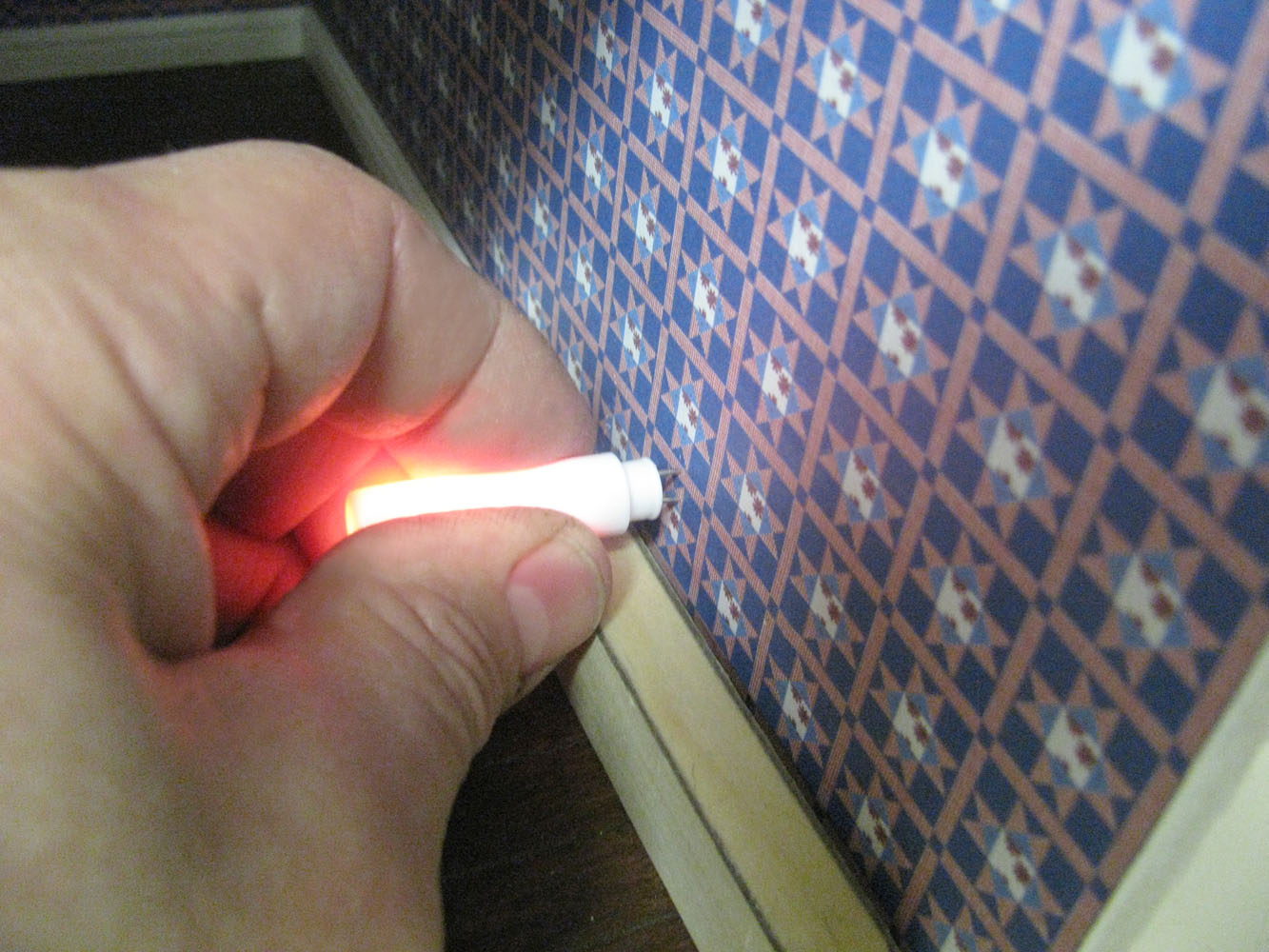

Find the power with the testlight SmallOutlet/SmallOutlet15_lg.jpg

DHTMLGoodies.com

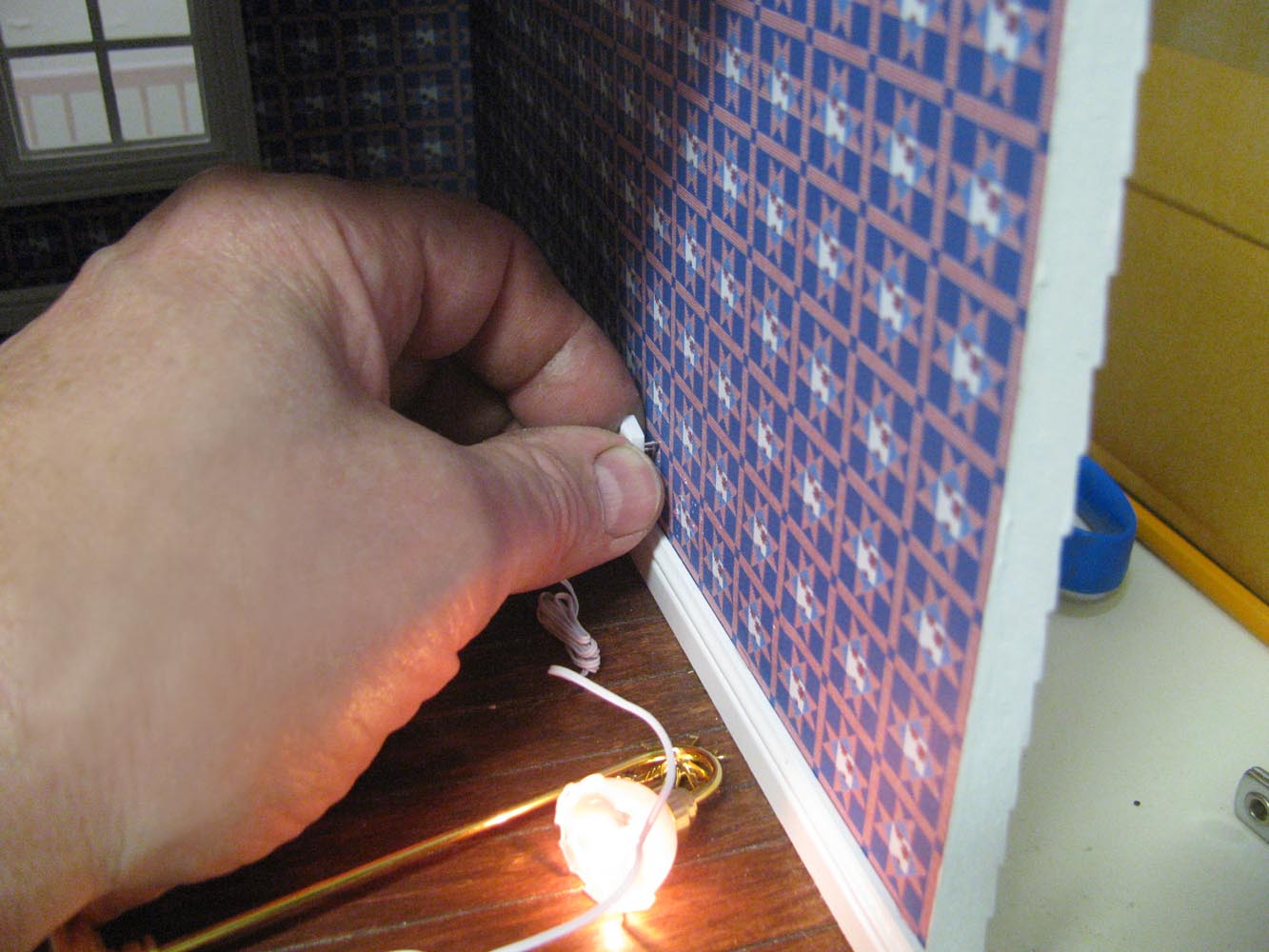

Now find it again with the outlet SmallOutlet/SmallOutlet16_lg.jpg

DHTMLGoodies.com

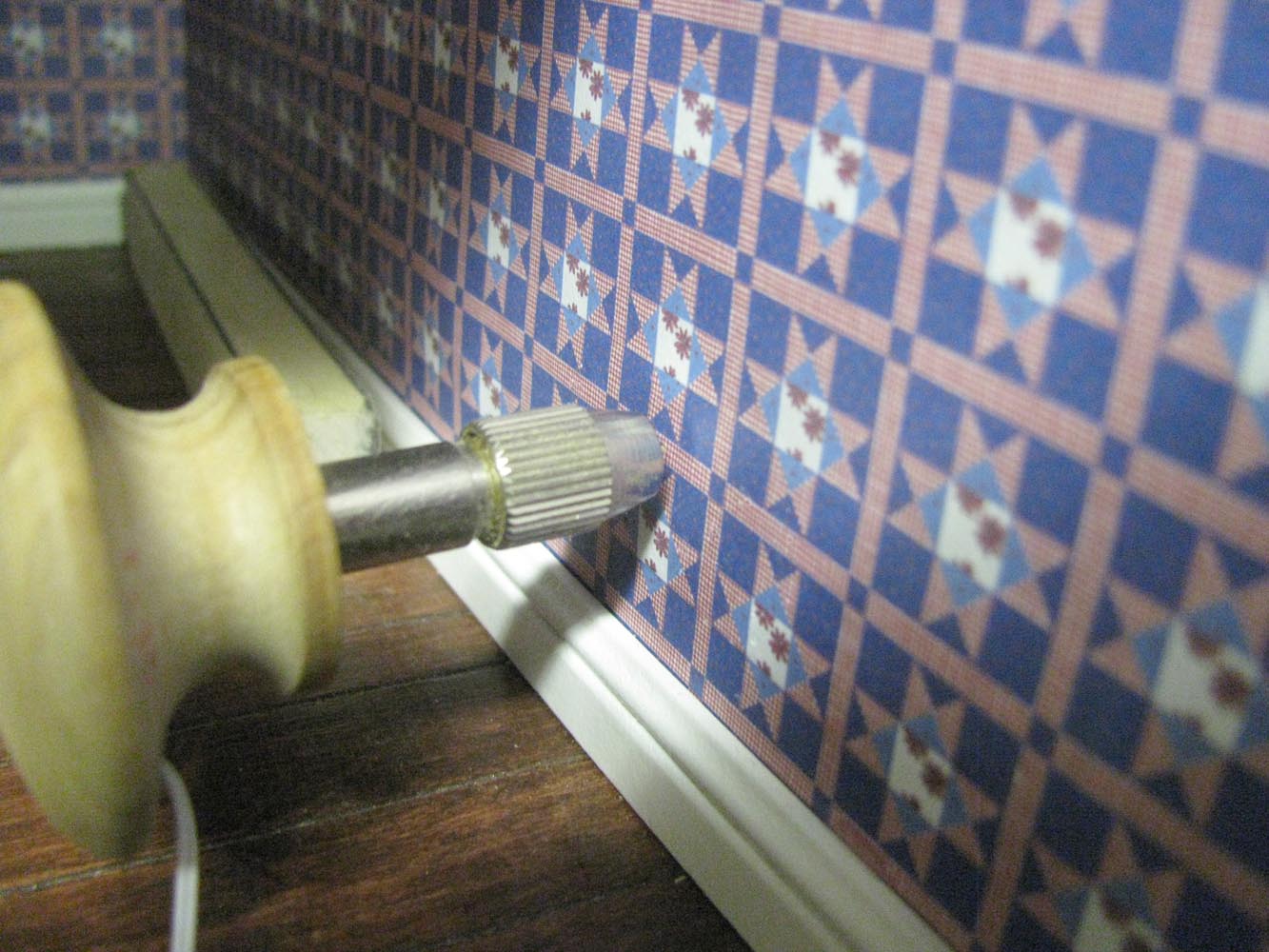

The outlet left dimples SmallOutlet/SmallOutlet17_lg.jpg

DHTMLGoodies.com

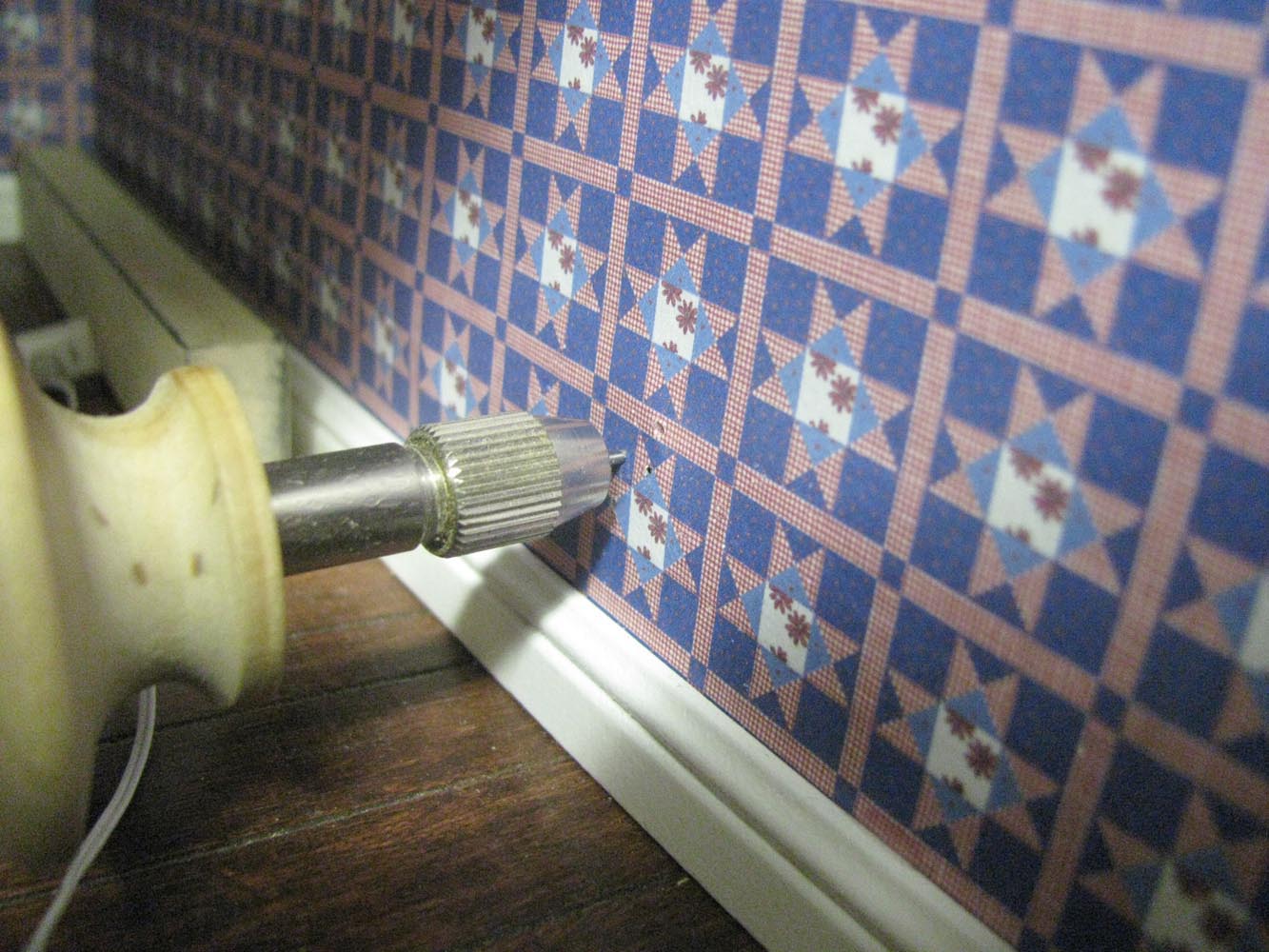

EL-66 punch for each dimple SmallOutlet/SmallOutlet18_lg.jpg

DHTMLGoodies.com

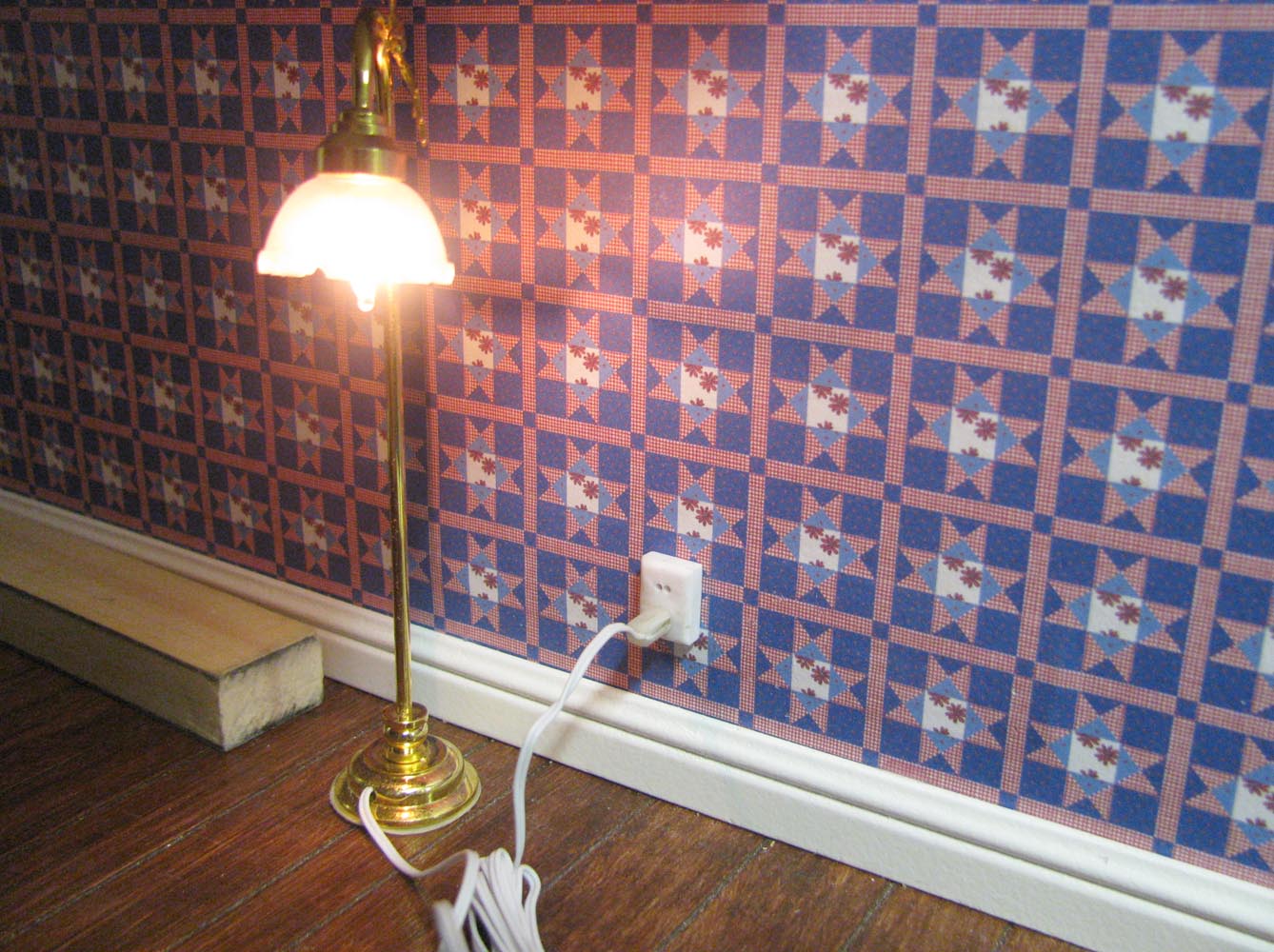

The outlet inserts into the punched holes SmallOutlet/SmallOutlet19_lg.jpg

DHTMLGoodies.com

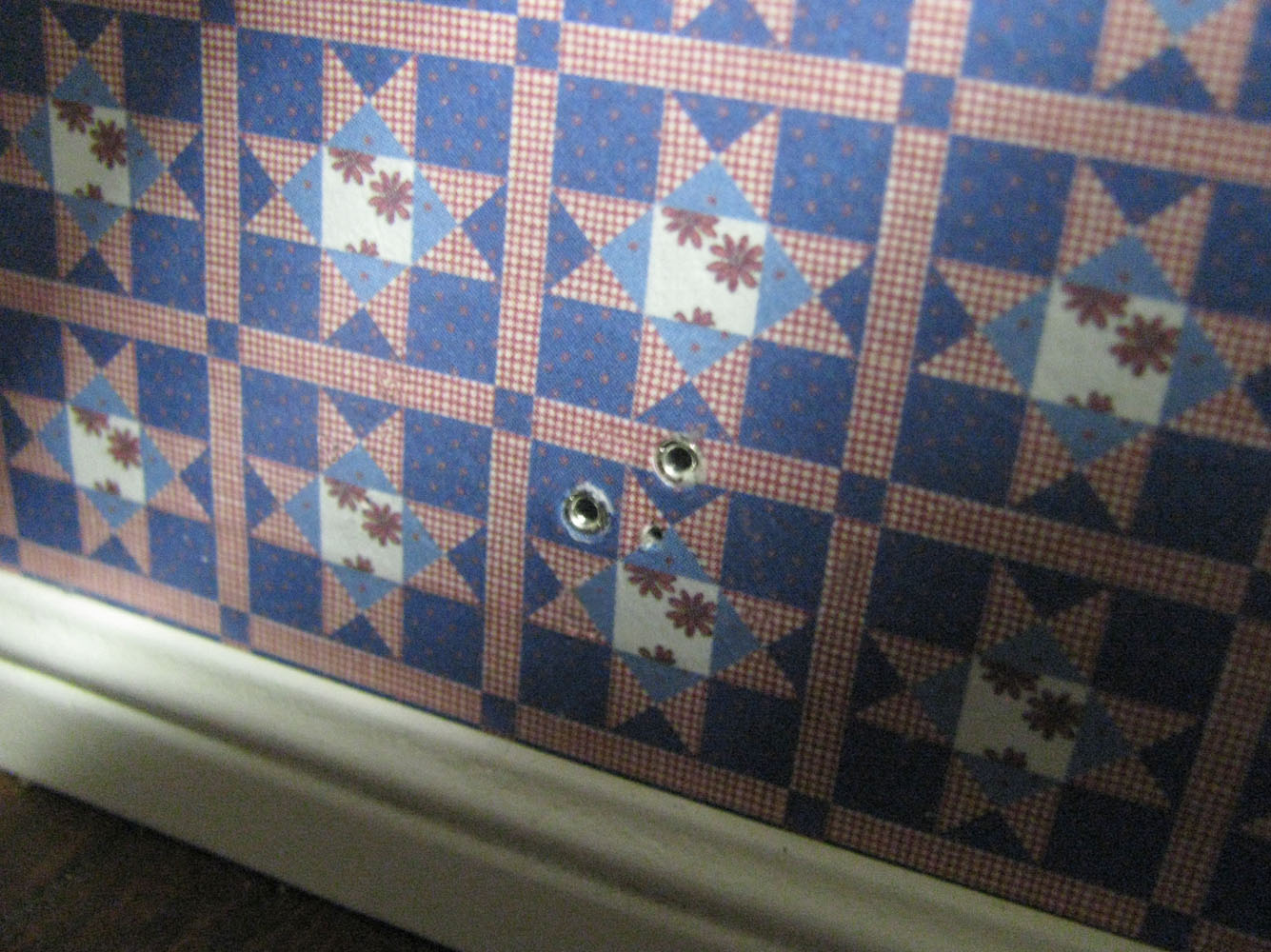

If you ever need to reinforce the holes, use CK-1023-6 Spring-loaded eyelets SmallOutlet/SmallOutlet20_lg.jpg
